Maki Ultra 20x
Make a Killer Image.
Ürün Özellikleri
- 20x Zoom & UHD 4K60 Resolution
- NDI|HX2 & NDI|HX3 Support
- HDMI & USB/UVC Outputs
- Built-In Halo Tally
- Color Matrix, API & Kelvin Control
- PoE Support
- Exceptional Low-Light Performance
- Ürün Tanımı
- Teknik Özellikler
Capture UHD 4K60 resolution video with this black MAKI Ultra 4K Box Camera with 20x Zoom from BirdDog. Boasting a powerful 12x zoom and a 61.2° angle of view as well as color matrix, API, and Kelvin control, the versatile MAKI Ultra offers exceptional low-light performance and support for NDI|HX2 and NDI|HX3.
Physical connectivity options include an SDI output with a maximum resolution of 1080p60, and HDMI and USB/UVC outputs with independent resolution for direct connection to Microsoft Teams, Zoom, and more. A built-in halo tally augments the camera's broad functionality features, and PoE (Power over Ethernet) support allows you to power the camera using a single Ethernet cable and facilitating quick and easy setup with limited cable clutter.
Compact & Mighty
The MAKI Ultra boasts a compact footprint, helping you capture those unusual and engaging camera angles with ease. Deliver killer POV shots that put your audience right in the game at eSports events, or attach the camera to a band rig to capture incredible angles of your drummers or instrumentalists.
Capture Every Moment with Ultra Detail
With its 4K60 capabilities, the MAKI Ultra expands your options on what and how you capture content. From fast-moving action shots to incredible detail in low-light sets, you can get all the detail thanks to the camera's high frame rate and advanced image processing capabilities.
Super-Fast AutoFocus to Keep Pace with Your Vision
The super-fast autoFocus is ideal for dynamic content and fast-paced environments. Equipped with a laser and powered by advanced automatic Focusing algorithms, the MAKI Ultra ensures rapid and accurate autoFocus. Whether your subjects are zipping across the frame or moving closer and further away to the camera, the MAKI Ultra keeps them sharp and in Focus.
Let Your Digits Take Control
The intuitive Fiziksel Düğmeler allow you to make quick adjustments to zoom and Focus, and quickly access the onscreen menu.
Enhanced Performance on More Networks
The MAKI Ultra gives you reliable performance on more networks via NDI|HX2 and NDI|HX3, giving you great quality video with a much lower demand on your network. Göndering video across more varied networks, or even across campus just got a whole lot easier.
Görüntüleme | |
Görüntü Sensörü | 1/2.8 inch, CMOS |
Optik Zoom | 20x |
Video Formatı | 2160p @ 60/59.94/50/30/29.97/25fps 1080p @ 60/59.94/50/30/29.97/25fps 720p @ 60/59.94/50/30/25fps |
Yatay Görüş Açısı | 61.2° (W) ~ 3.38° (T) |
Dikey Görüş Açısı | 35.3° (W) ~ 1.9° (T) |
Aperture | F1.6~F3.6 |
Odaklanma | TOF, Auto, Manual |
Pozlama | Otomatik, Deklanşör Önceliği, İris Önceliği, Manuel |
Arka Işık Telafisi | Evet |
Dijital Gürültü Azaltma | Evet |
SNR | >55dB |
Etkin Pikseller | 8.4 Megapixels |
Mekanik | |
Fiziksel Düğmeler | Miktar: 8; Özellikler: Yakınlaştırma, Odaklama, Parlaklık menü kontrolü, görüntü dondurma ve mod değiştirme. |
I/O Arayüz | |

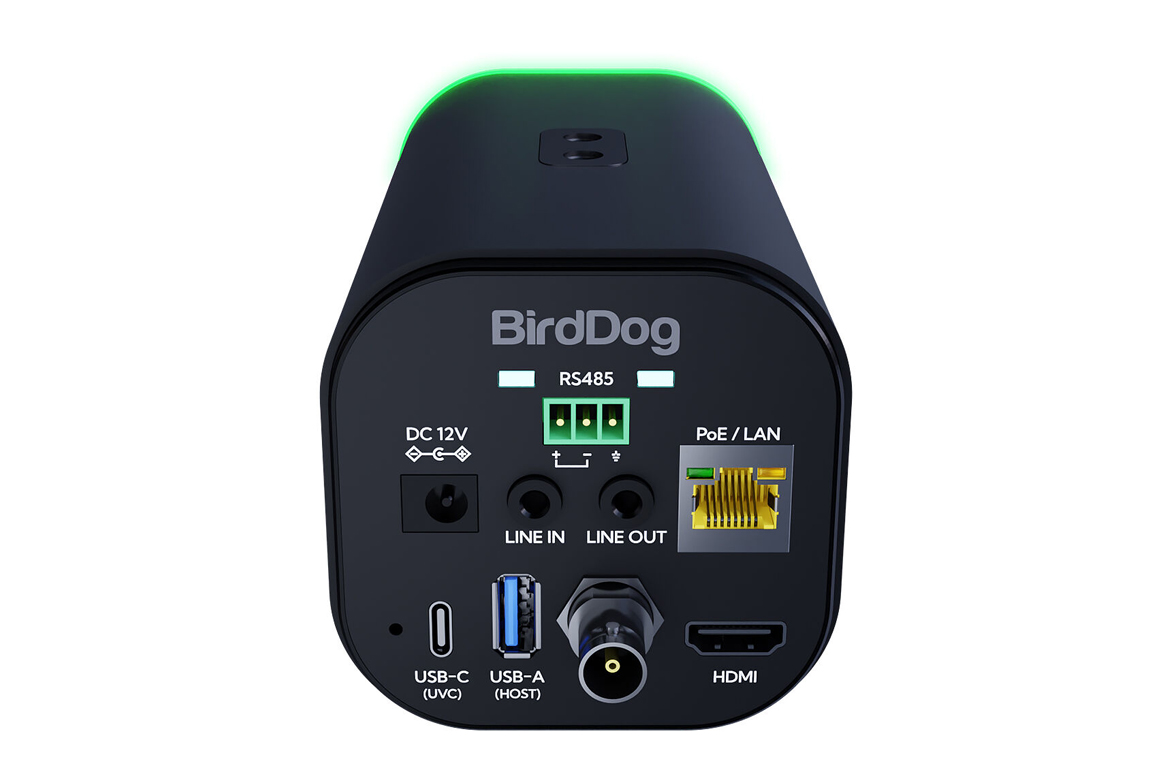

Video Arayüzleri | 1 x HDMI 2.0; 1 x 3G-SDI, USB-C UVC 1.1 |
LAN | 100M/1000M uyarlanabilir Ethernet Desteği: PoE(802.3af) |
Ağ Protokolü | NDI|HX2, NDI|HX3, RTMP |
Kontrol Protokolü | VISCA Baud Hızı: 38400/9600/4800/2400, VISCA-IP, NDI |
Kontrol Arayüzü | RS485: 2 pinli phoenix bağlantı noktası, TİP-C (UVC1.1) |
Ses I/O | 1 × Line Girişi, 3,5 mm Jak; 1 × Line Çıkışı, 3,5 mm Jak, Dahili Mikrofon |
USB | 1 × USB3.0, Type-C (UVC 1.1) |
3. Parti Kontrol Protokolleri | BirdDog API 2.0, Q-sys, Crestron ve BitFocus Companion modülleri için desteğin Ağustos 2024'te yapılması planlanıyor |
Genel Parametre | |
Güç Girişi | DC 005-2.0mm type (DC IN 12V) |
Input Voltajı | DC 12V / PoE(802.3af) |
Input Akımı | 1A(Maks.) |
Güç Tüketimi | 12W (Max) |
Boyutlar (G*Y*D)
- 145mm 79mm 80mm (SDI konektörü hariç)
Net ve Brüt Ağırlık
- 0.8kg/1.3kg (Net/Brüt ağırlık)
