BirdDog X4 ULTRA
BirdDog

X4 Ultra

JUST XTRAORDINARY.
Ürün Özellikleri
  • Low-Latency Video Streaming Camera
  • Advanced AI for Intelligent Automation
  • NDI|HX3 Support
  • Sony 1/1.8" UHD CMOS Sensor
  • Supports up to UHD 4K60 Resolution
  • Built-In Battery Runs for up to 4 Hours
  • HALO Tally System
  • Wi-Fi 6 Wireless Connectivity
  • PoE Support via LAN Port

  • Ürün Tanımı
  • Teknik Özellikler

X4 Ultra. Capture the Future, Unleash the Power!
You never know when or where your next production might be. With X4 Ultra, you have the ultimate flexibility matched with quality – you can be confident of delivering next-level productions in challenging environments.

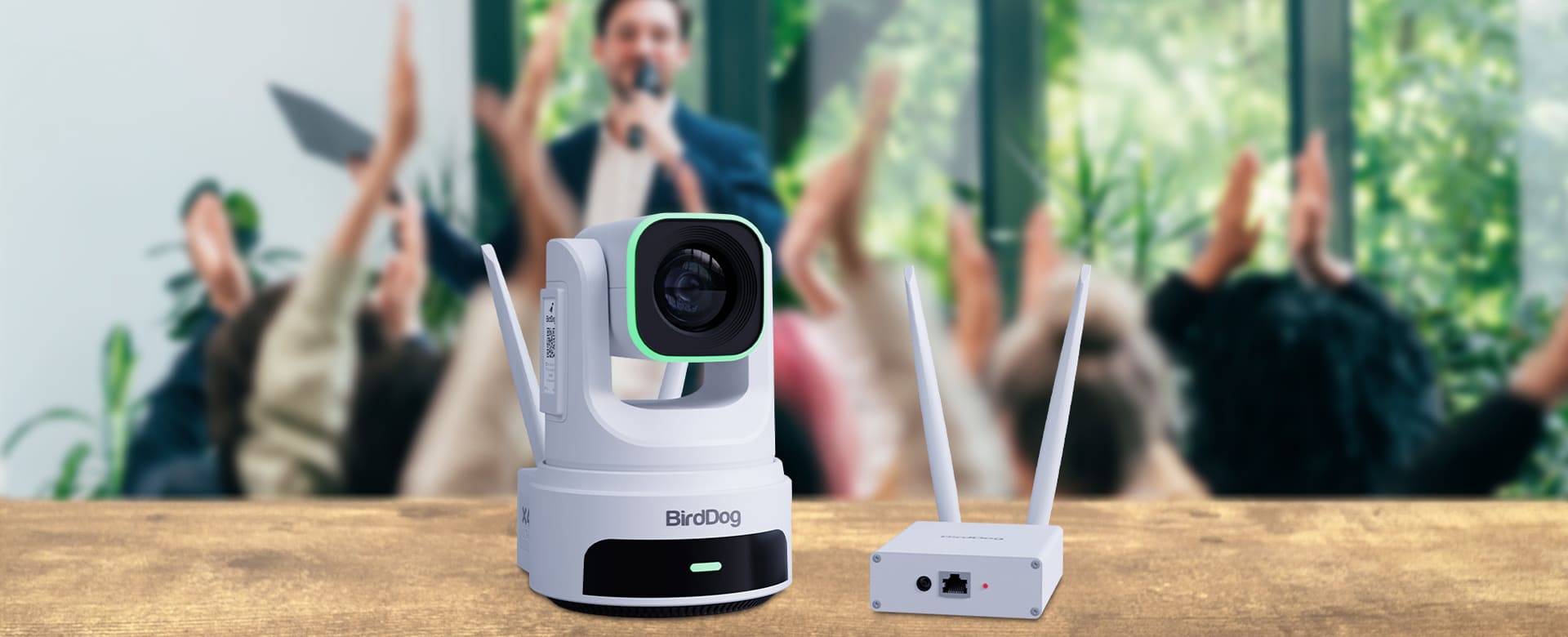

The X4 Ultra is a state-of-the-art 4K60 camera that delivers superior quality and performance. With NDI® | HX3, Wi-Fi 6, an oversize sensor, and advanced AI controls, it’s designed for spectacular results all-round. It also features a built-in battery, HALO tally system, and an optional base station for seamless wireless connection of up to 4 cameras.

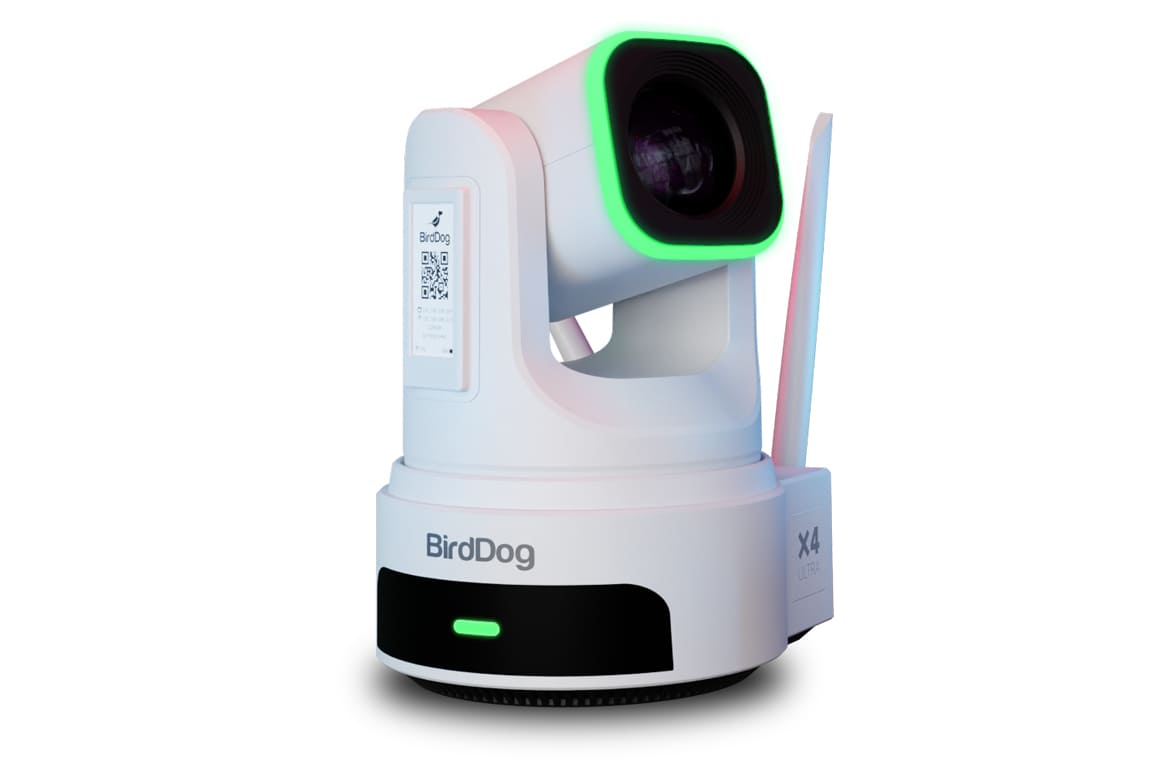

HALO Tally. A Higher Order of Visual Queue.
Professional results need professional tools. The X4 Ultra sports the most visible and effective Tally system available. Surrounding the lens with a large, daylight-visible border, it keeps your talent looking directly at the camera. Your cast and crew will always know where to look, keeping your audience engaged.

AI Tracking. Built for now and the future.
The X4 Ultra’s AI controls are designed to be easy to use, ensuring predictable and consistent performance with every shot. As your needs grow, the AI capabilities expand, adapting to deliver precise, automated control over your PTZ camera movements.

NDI® | HX3. Performance meets convenience.
The X4 Ultra delivers superior network performance via our implementation of NDI® | HX3. Significantly reducing network impact while maintaining superior image quality, meaning it is more friendly in more network environments. BirdDog’s NDI® | HX3 delivers quality and performance you can count on.

WiFi 6 and Battery. A match made in heaven.
The X4 Ultra features Wi-Fi 6 for ultra-fast, reliable wireless connectivity, ensuring smooth and stable streaming. Its built-in battery provides up to 6 hours of continuous operation, giving you the freedom to shoot on the go without worrying about power. The X4 Ultra’s battery can be quickly recharged via USB, and you can extend its operation time by connecting it to a portable power source for uninterrupted shooting.

IMAGING
IMAGE SENSOR Sony 1 / 1.8” CMOS – ULTRA HD
Lens f= 6.25 - 125mm
OPTICAL ZOOM 20x
Video Format 2160p @ 60/59.94/50/30/29.97/25fps,
1080p @ 60/59.94/50/30/29.97/25fps,
1080i @ 59.94/50fps,
720p @ 60/59.94
Horizontal angle of view 60° (W) ~ 3.5°(T)
Vertical angle of view 35° (W) ~ 2.0°(T)
Diagonal Angle of View 66.6°(W) ~ 4.0°(T)
Aperture F1.58 (W) ~ 3.95 (T)
Focus Auto, Manual
Exposure Auto, Shutter Priority, Iris Priority, Manual
Shutter Speed 1/1 - 1/10000s
Backlight Compensation Yes
Digital Noise Reduction 3D Noise Reduction
SNR >45dB
Effective Pixels 8.42 MP
AI Tracking Presenter Tracking, Zone
MECHANICAL
Pan/Tilt Rotation ±170°, -30° ~ +90°
Pan Control Speed 1.7-80°/sec
Tilt Control Speed 1.7-60°/sec
Preset Number 255 presets
Integrated Tally Light HALO tally and rear number tally system
Display e-Ink 2.13” with customization logo

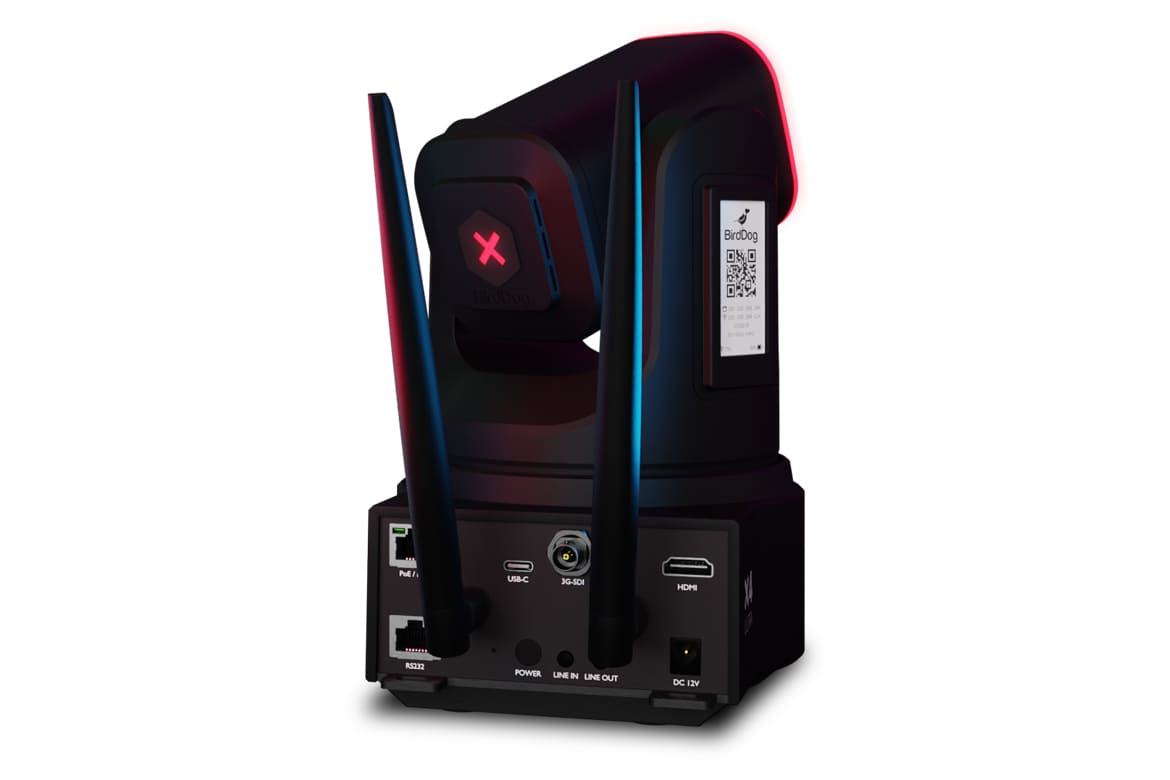

I/O INTERFACE
Video Output Interfaces 3G-SDI, HDMI, USB-C UVC, Network
Video Compression Formats H.264, H.265
Network Interfaces Gbps adaptive Ethernet port; PoE IEEE 802.3at, WiFi 6 2x2 MIMO (Optional Base station)
Encoder Network Protocols NDI®|HX2, NDI®|HX3, RTSP, RTMP, SRT
Control Interfaces 1Gbps Ethernet, USB-C, RS-232
Control Protocols VISCA Baud Rate: 38400/9600/4800/2400,
VISCA-IP, NDI®, ONVIF
Analogue Audio 3.5mm TRS Line input/Mic Input
GENERAL
Environmental Operation Internal
Input Voltage DC 12V, POE IEEE 802.3at
Input Current 5.0A (Max)
Power Consumption 9450mAh

Dimension (W*H*D)
  • 140.2*188.9*203.2mm/ 295*245*254mm (before / after packing)

Net and Gross Weight
  • 2.19kg/ (Net/ weight)
