Focusrite Pro RedNet D64R

64X64 MADI I/O With Dual PSUs

Ürün Özellikleri

64x64 MADI I/O for Dante audio-over-IP networks
Up to 24-bit, 192kHz sampling rates
Input and output sample rate converters
AES10 and AES67 compliant
Dual power supplies and network connections with full power and network redundancy including locking connectors for maximum reliability
Multi-mode optical MADI transceiver with Single-mode available on request
Simultaneous optical and coaxial output
Word Clock I/O for increased flexibility
Auto MADI input switching mode: when selected, input will favour optical, and quickly switch to coaxial if optical input is lost
Comprehensive remote control and remote signal metering through RedNet Control

Ürün Tanımı
Teknik Özellikler

RedNet D64R is a 1U, 64x64 MADI interface for any Dante™ audio-over-IP network. Featuring network and power supply redundancy, RedNet D64R is the ideal choice for providing MADI I/O in many critical-path applications, whether in Post Production, Broadcast, Live Sound or the Recording Studio.

MADI connectivity is provided in the form of coax through two rear-panel BNC connectors, as well as optical through an SC-Duplex connector. Word Clock I/O allows RedNet D64R to provide clock to external equipment, or alternatively to sync the Dante network to an external clock. The word clock input can additionally be used as the sync source for the unit's sample rate converters, allowing asynchronous operation between the network and the MADI domains. Front panel status LEDs provide visual feedback of signal presence, SRC status, PSU status and more.

Fiyat: Talep Üzerine

Connectors (Rear Panel)	2 x etherCON locking Ethernet connectors (compatible with standard RJ45 connectors) 2 x BNC Word Clock In and Out (with switchable 75 ohm termination on input) 2 x BNC MADI Coaxial In and Out 1 x Duplex-SC MADI Optical connector In and Out 2 x IEC power inputs (with retaining clips)
Channel Count	Single Rate: 64 (56) Double Rate: 32 (28) Quad Rate: 16 (14)
Controls	Power: on/off
Digital Performance	Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz (-4, -0.1, +0.1, +4.167%) at 24 bit Clock Sources: Internal, MADI, or from Dante Network Master Ext. Word Clock Range: nominal sample rate ±7.5%
Sample Rate Conversion	Lock Range: 41 to 216 kHz (MADI) Gain Error: -0.01 dB Sample Rate Ratio Limit: 6:1 THD: -130 dB (typical) THD + N: < -130 dB (0.00003%); 0 dBFS input Latency: 43 to 192 samples (sample rate dependent) Dynamic Range: > 139 dB (-60 dBFS method) MADI Clock Sources: RedNet, MADI Input, and Word Clock
MADI Coaxial	Electrical Standard: as per AES10:2008 Connector: BNC 75 ohm Recommended Cable: 75 ohm characteristic impedance
MADI Optical	Optical Standard: as per AES10:2008 (ISO/IEC 9314-3, FDDI, ANSI X3.166) Recommended Cable: multi-mode, graded-index, 62.5 cm core, 125 cm cladding Connector: Duplex-SC (Single Mode available from manufacturer)
Indicators	Green LED power indicator Network Status: Primary/Secondary/Locked PSU: A/B Sample rate: 44.1/48 kHz, x 2, x 4, Pull Clock Source: Internal, MADI, Word Clock MADI Input: Coax, Optical, Auto Clock Source: SRC, RedNet, MADI Input, Word Clock Signal: In, Out, Varispeed
PSU	2 x internal; IEC inputs, 100 to 240 VAC, 50/60 Hz Apparent Power: 30 VA
Dimensions (WxDxH)	1.75 x 19 x 12.13" (44.5 x 482.6 x 308 mm)
Weight	9.52 lb (4.32 kg)

Fiyat: Talep Üzerine

Daha fazla

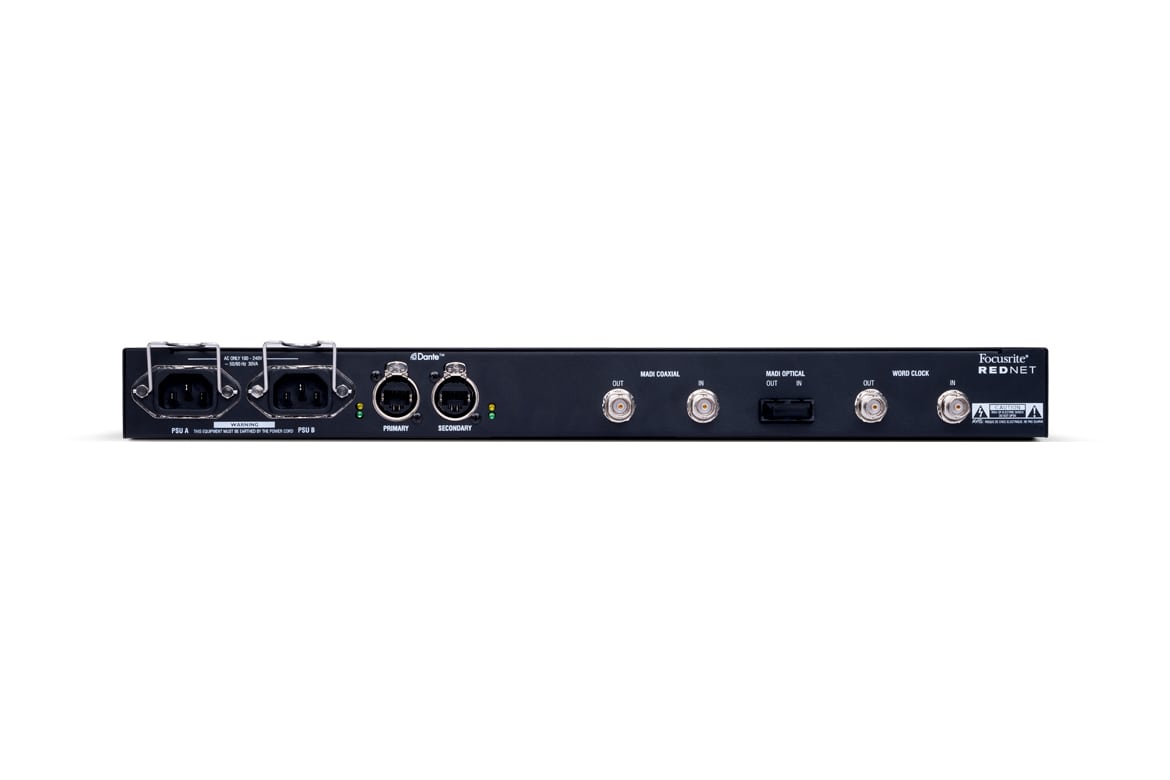

REAR PANEL CONNECTIVITY

Electrical Standard: as per AES10:2008
Recommended Cable: OM1 adheres to AES10:2008 RedNet 6/ D64R supports OM2 if 3rd Party Device also supports OM2
Connector: Duplex-SC
Optical Standard: as per AES10:2008 (ISO/IEC 9314-3, FDDI, ANSI X3.166)
Word Clock Input: 1 x BNC 75O port
Word Clock Output: 1 x BNC 75O port
PSU: 2 x IEC Inputs with retaining clips
Network: 2 x etherCON NE8FBH-S, also compatible with standard RJ45 connectors

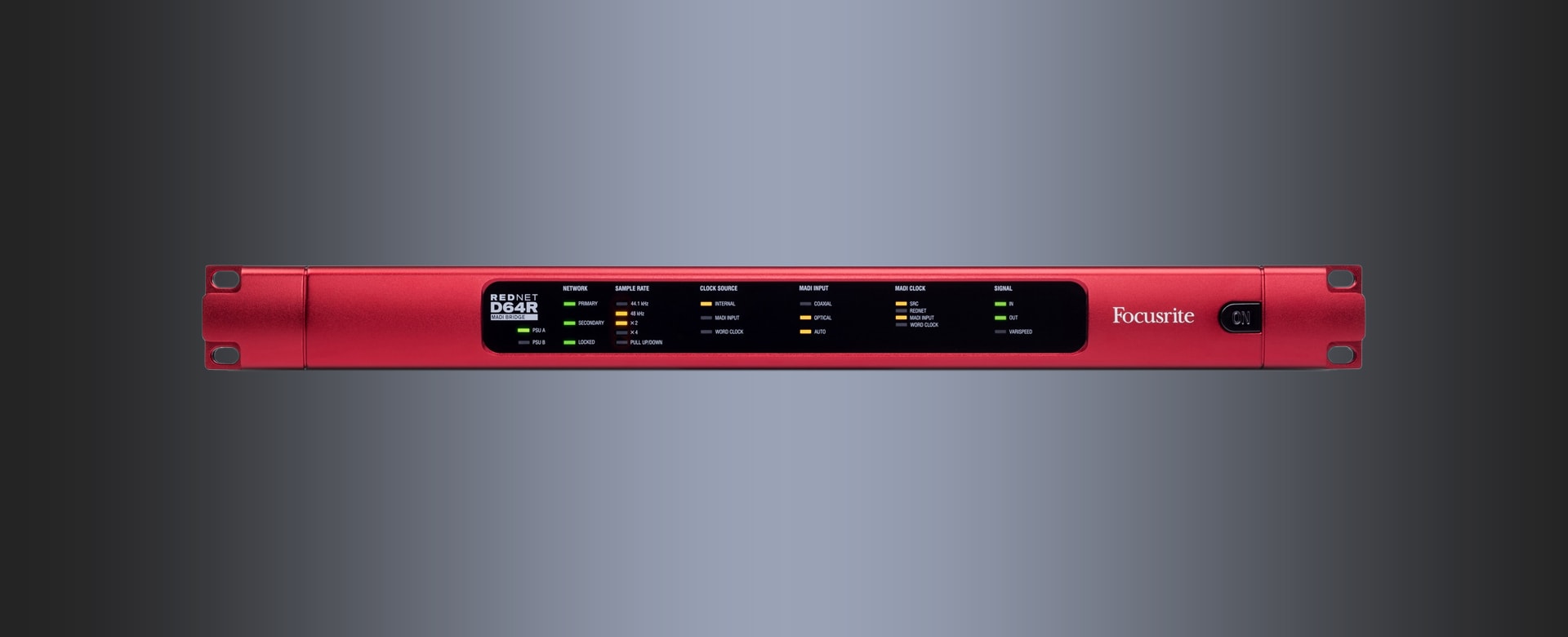

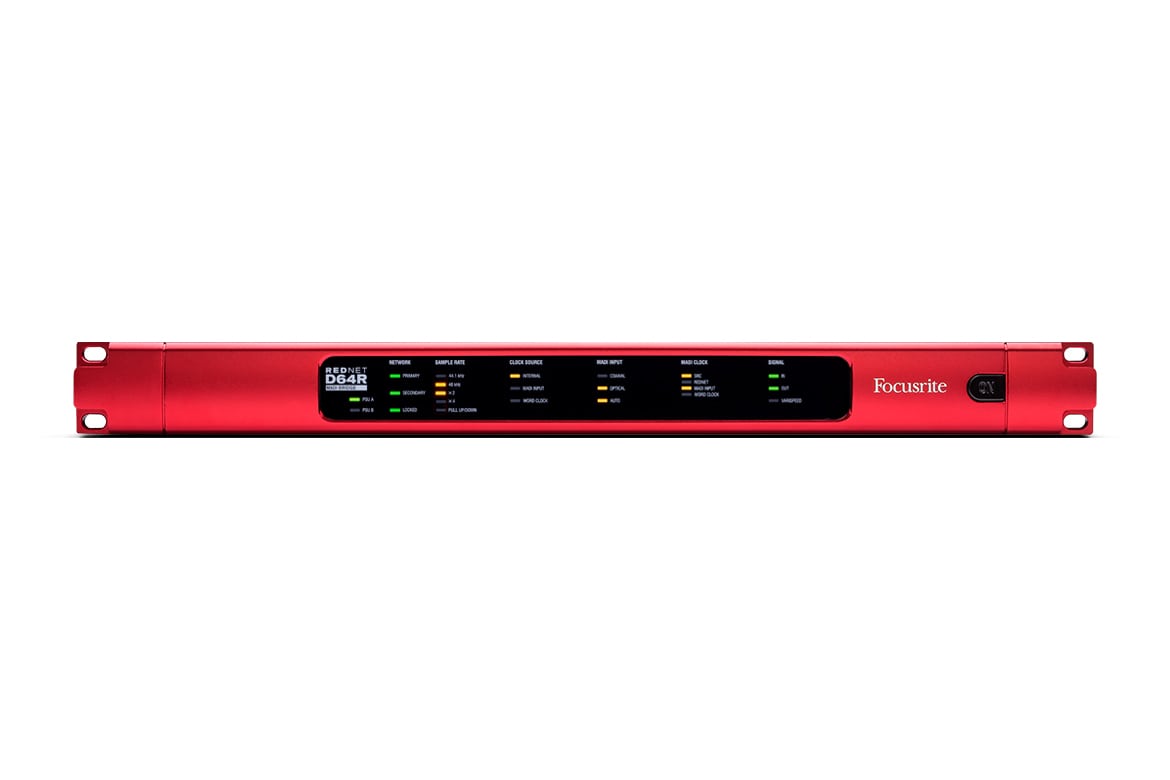

FRONT PANEL INDICATORS

Primary PSU (A): Green LED. Illuminates when an AC input is applied and all DC outputs are present.
Secondary PSU (B): Green LED. Illuminates when an AC input is applied and all DC outputs are present
Primary Network: Green LED. Indicates that a network connection is present on primary port when in redundant mode
Secondary Network: Green LED. Indicates that a network connection is present on secondary port when in redundant mode
Network Locked: Green LED. When unit is network slave, shows valid network lock. When unit is network master
Sample Rate: Orange LED for each: 44.1 kHz, 48 kHz, x2, x4
Pull Up/Down: Orange LED. Indicates unit is set to operate on a Dante pull up/down domain
Clock Source: Orange LED for each: Internal, MADI Input and Word Clock.
MADI Input: Orange LED for each: Coaxial, Optical and Auto
MADI Clock: Orange LED for each: SRC, RedNet, MADI Input and Word Clock
Signal Indicators: 2 Green LEDs, 1 input/1 output indicator. Illuminate @ -126dBFS
Status: Orange LED for each: SRC
