RELIABILITY

Business Continuity Management
Full-width switches offer dual redundant, modular power supplies (select m4300 models)

High Availability (HA)
Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack

Multi-Resiliency
Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities

PVST+ InteroperabilityPer VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)

Link Dependency
Enables or disables ports based on link state of different ports

Advanced IPv4/IPv6 security
Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation

Fiber Ports
48 SFP+ Fiber ports have 1G/10G speeds & 2x 10Gb Copper

EASY TO MANAGE

Simple GUI
Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface

Flexible & Efficient
Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks

Mix & Match Stacking
Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit

Room to Grow
With PoE+, plug and play ports, and hot swap, you're ready to grow whenever you need to

Industry Standard
SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation (select M4300 models)

READY FOR AV OVER IP

Zero Touch AV-over-IP
Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready)

No Delay
Non-Blocking Fabric for Near-Zero Switch Latency

NETGEAR IGMP Plus™
Prevent network flooding with effortless multicast implementation of Layer 2 Multicast

Acoustics	39.8dB @ 25°C (77°F)
Power Consumption (Max)	865 Watts

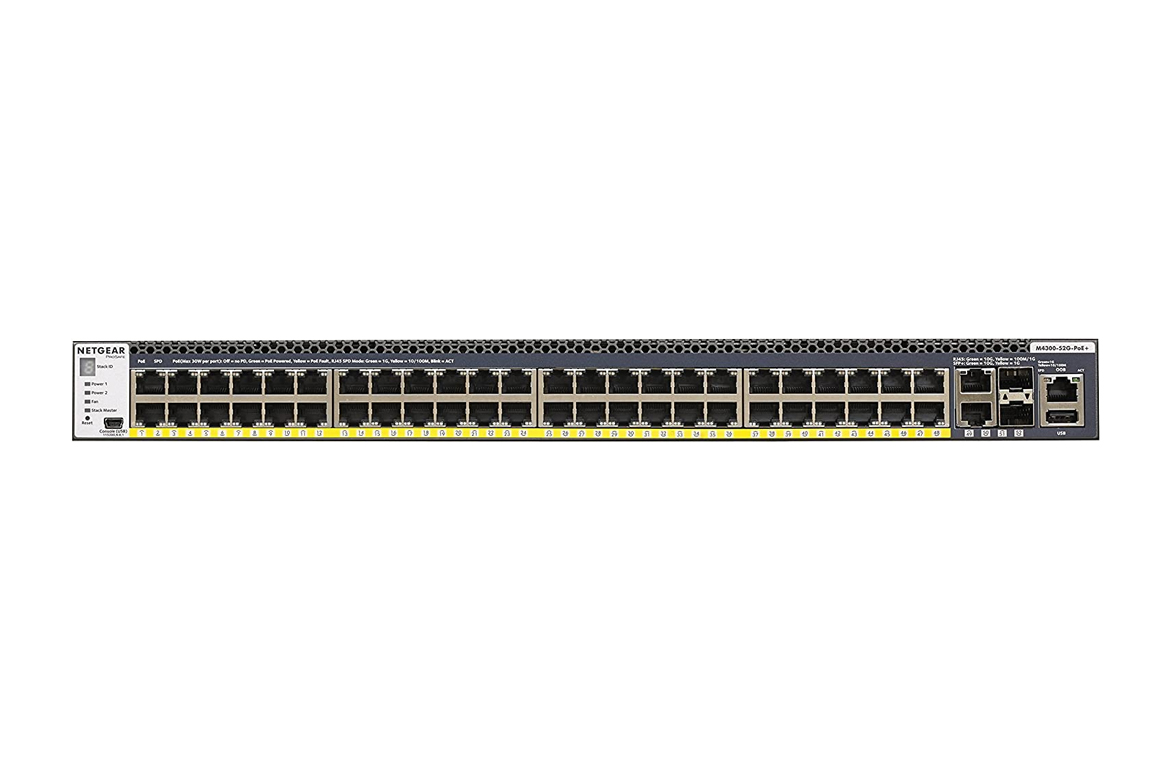

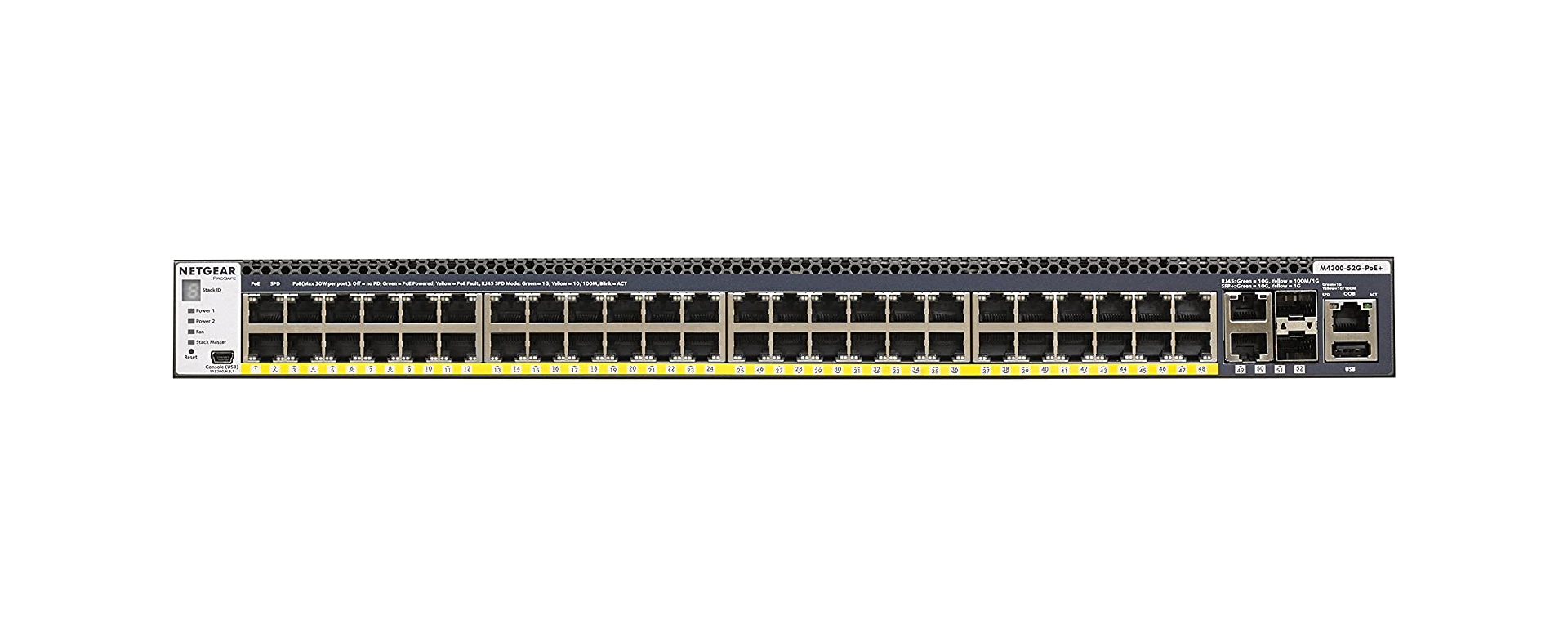

1G RJ45 Ports	48 x 10/100/1000
10G RJ45 Ports	2 x 10GBASE-T (Fast Ethernet, 1G and 10G speeds)
10G Fiber SFP+ Ports	2 x SFP+ (1G and 10G speeds)
Power over Ethernet	48 x PoE+ 30W
PoE Budget (Watts)	480W PoE Budget with 1 PSU @ 110V / 220V AC input 480W PoE Budget with 2 PSUs in redundant RPS mode @ 110V / 220V AC input 720W PoE Budget with 2 PSUs in shared EPS mode @ 110V / 220V AC input External RPS4000v2 for power redundancy (RPS) when 2 internal PSUs are used in EPS mode
Feature Set	Layer 3 (static, policy-based and RIP OSPF VRRP PIM dynamic routing)
Management Ports	1G Ethernet service port for out-of-band management (OOB, RJ45) RS232 straight-through serial RJ45 for local management console Mini-USB port for local management console USB port for local storage, logs, configuration or image files

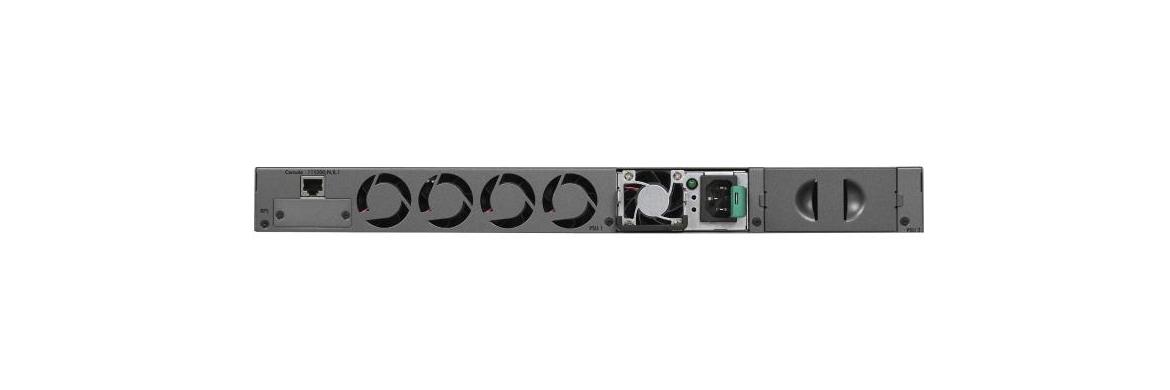

Form Factor	Full width with dual, redundant modular PSUs for business continuity
