M4500-48XF8C (XSM4556)
24x1G PoE+ 300W 2x1G and 4xSFP Managed Switch
Öne Çıkan Özellikler
- 24-port 10/100/1000BASE-T (RJ45) PoE+ with 300W PoE budget
- 2-port 10/100/1000BASE-T (RJ45)
- 4-port 1000BASE-X (SFP)
- 60 Gbps non-blocking fabric across 30 ports
- Out-of-band 1G Ethernet management port
- USB-C and RJ45 RS232 console ports and USB-A storage port
- Front black display panel and all ports in the back
- Possible reversed mounting with ports in the front
- Rack-mounting standard brackets
- Longer brackets for recessed mounting (2 inches / 5 cm)
- Threaded hole in front (1xM10) for clamps
- Threaded holes on the bottom (4xM5) for 50x100mm VESA plates
- Selectable fan modes for fanless, quiet, or cool operation
- Ürün Tanımı
- Teknik Özellikler
These switches combine the configurability of a matrix switcher with the power and scalability of Ethernet to support hundreds of AV over IP endpoints. M4300 and M4500 switches offer IGMP Plus and greatly simplify system architectures at a dramatically lower price point!
Built-In Redundancy
Two redundant, modular power supplies and six hot-swappable fan trays pre-installed for peace of mind
Industry-Standard Management
Stay on top of operations with: CLI, local GUI, SNMP, sFlow, RSPAN, single pane of glass NMS300
Secure Your Data
Defend with Access Control, DiffServ QoS policies, LACP Link Aggregation, Private VLANs, Denial of service protection
Dependable OperationsEnjoy high availability across virtual servers through load balancing and nonstop forwarding failover.

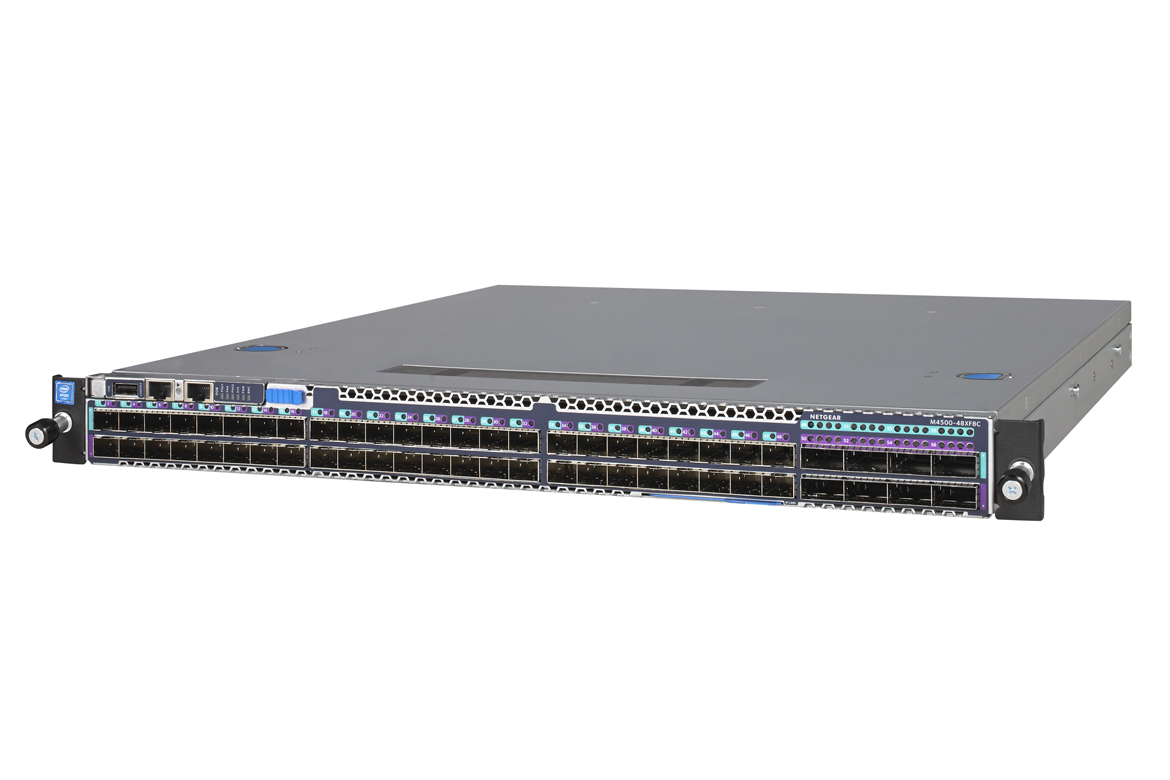

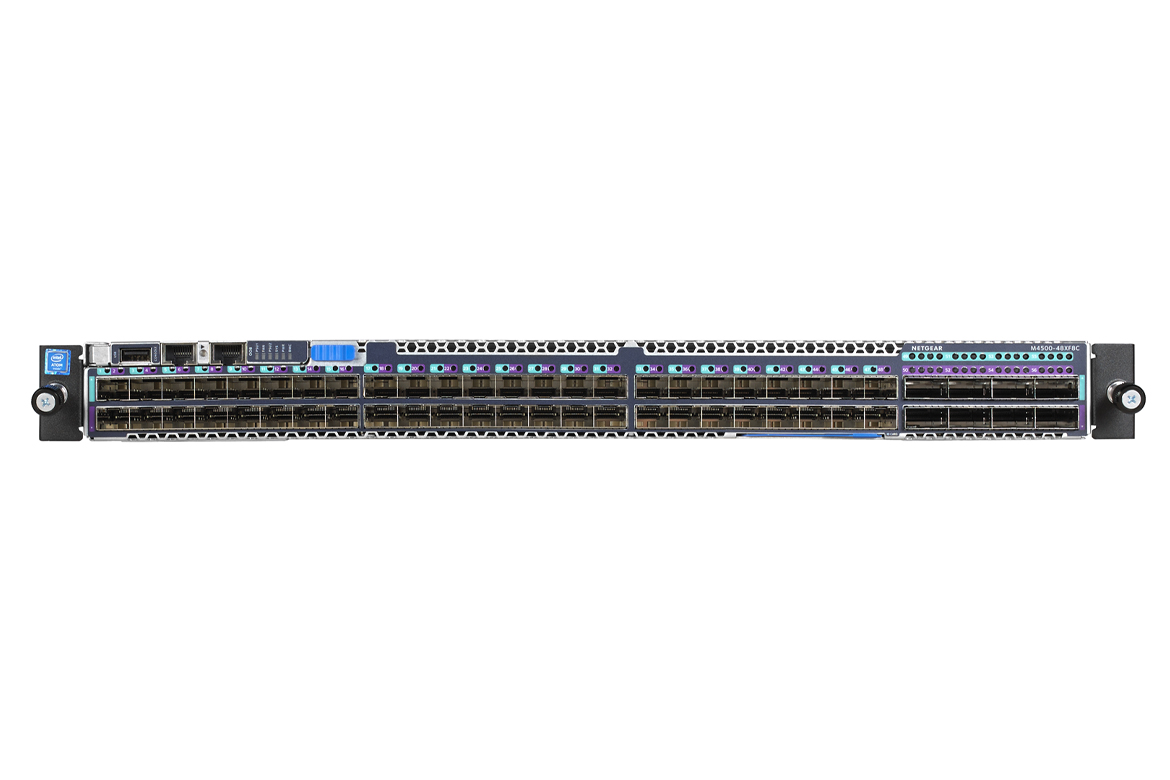

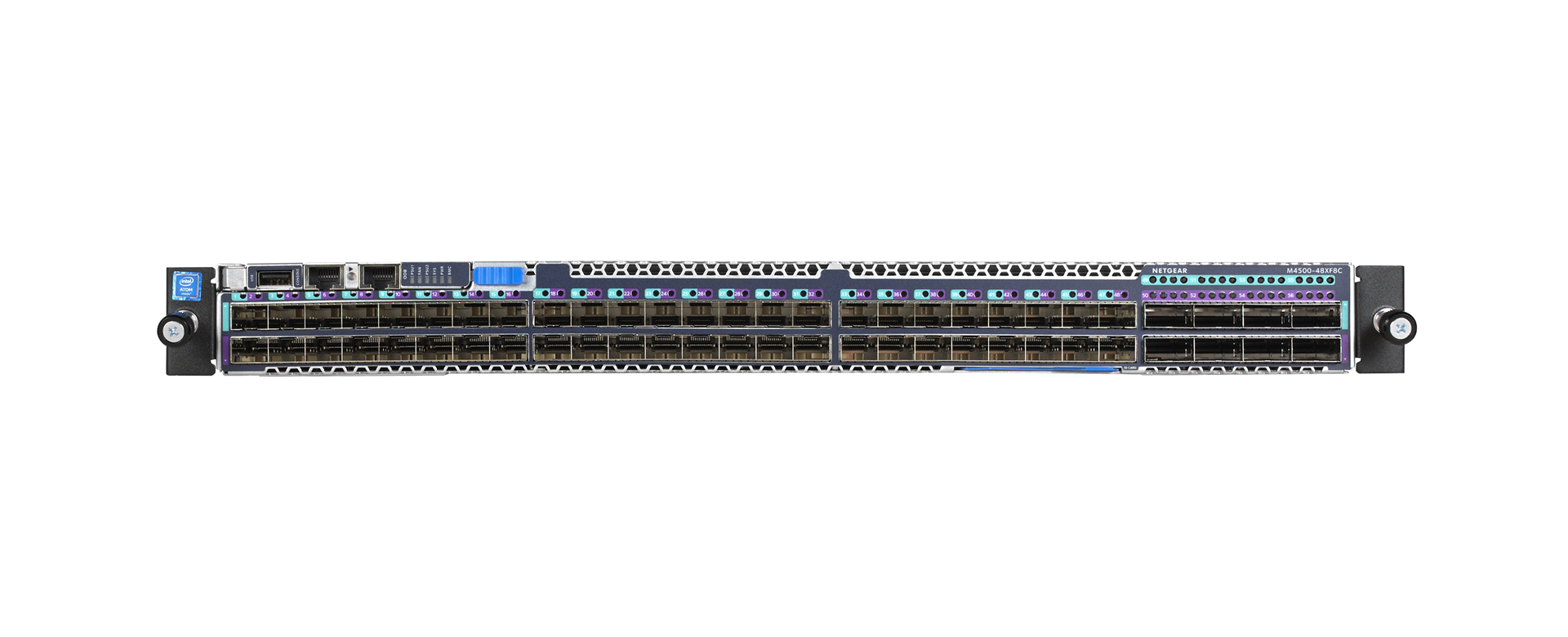

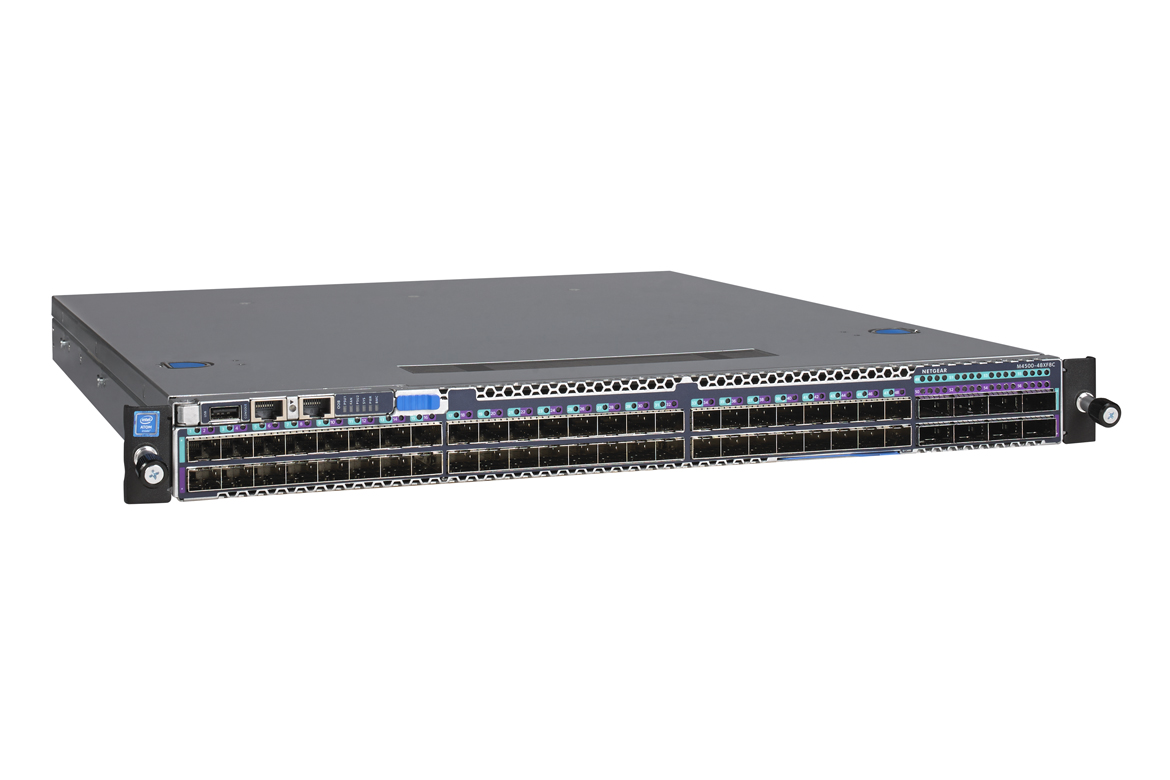

| Model Description | M4500 Managed Switch with 48x10G/25G SFP28 and 8x100G QSFP28 ports |
| Ordering Number | XSM4556 |
| Acoustics | 68.0dB @ 25°C (77°F) - the noise is reduced when the two PSUs connect to a power source |
| Power Consumption (Max) | 394 Watts |
| 25G SFP28 Ports | 48 SFP28 ports (1x10G default mode, other modes can be 1x25G and 1x10G) |
| 100G QSFP28 Ports | 8 QSFP28 ports (1x100G default mode, other modes can be 1x50G, 1x40G) |

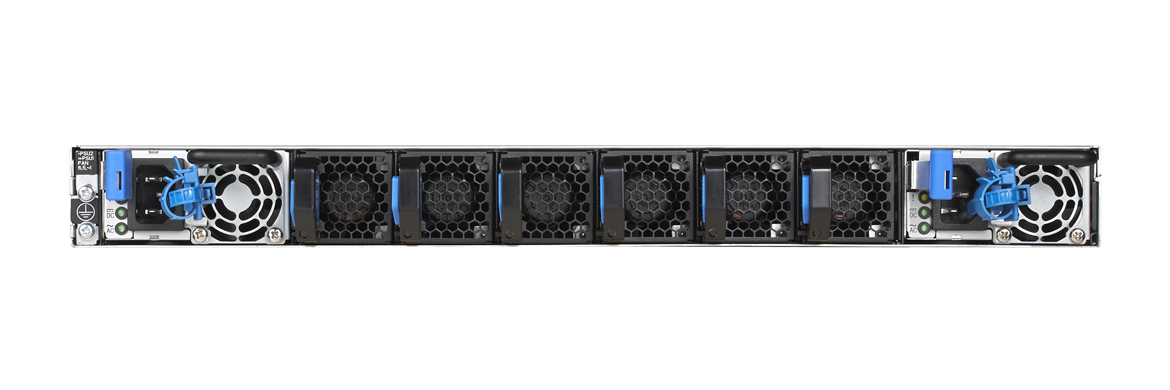

| PSU and Fans | 2 modular Power Supply Units and 6 modular Fan Trays come pre-installed |
| Management | CLI only (local console, telnet port 1223 and SSH port 1234) |
| Management Ports | 1G Ethernet service port for out-of-band management (OOB, RJ45) RS232 straight-through serial RJ45 for local management console |
| Form Factor | Full width 1U (508mm depth) with two mounting ears (front) and rail kits (back) |
Dimensions (WxDxH)
- 440 x 508 x 43.2 mm
Weight
- 9.78 Kg (21.54lb)
