Product Highlights
- SuperSpeed+ 10Gbps USB Ports—Adds four 10Gbps USB-A ports to your Mac Pro, Windows PC, or Linux computer with PCIe slots; or Thunderbolt to PCIe card expansion system
- Dual USB 3.1 Gen 2 Controllers—Support data transfers at up to twice as fast as USB 3.0 and USB 3.1 Gen 1, and boost data transfer speeds between connected drives
- Powered Ports—Supports USB bus-powered SSD, SSD RAID, and hard drive devices with up to 7.5W power per port
- Supports Charge & Sync—Supports USB 3.0 charging port handshake, and will simultaneously sync and charge iPads and other devices that support USB 3.0 charging at 1.5A per device
- Protected Power Delivery—Independent power regulation isolates each port to prevent cross-coupled power glitches that may cause accidental disconnects; resettable device overcurrent fuses protect the card and computer, and may be reset by a simple shutdown
- Optimized for Thunderbolt—Provides maximum performance over Thunderbolt
- Easy Installation—Quick and easy user installation into any available PCIe slot
- Broad USB Device Support & Compatibility—Supports storage, hubs, and other USB-IF compliant USB devices
- Ürün Tanımı
- Teknik Özellikler

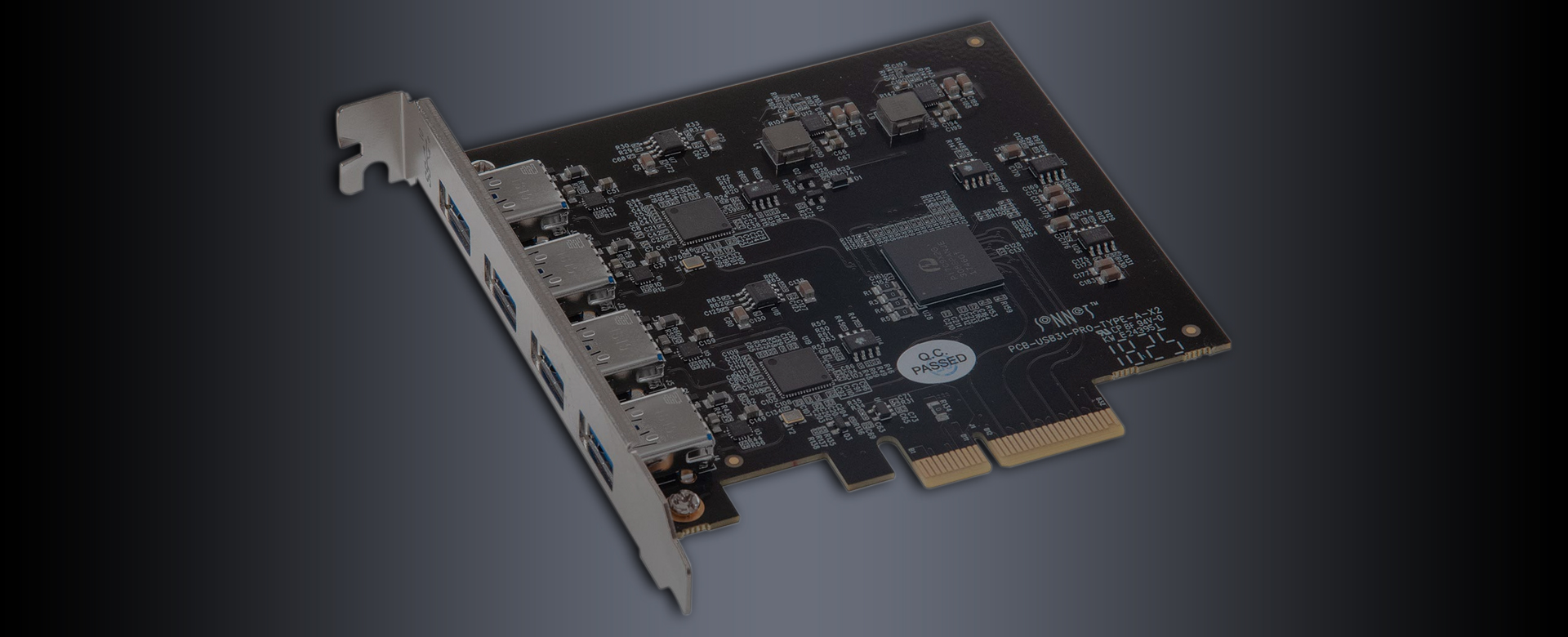

Professional 4-Port SuperSpeed+ USB 3.1 Gen 2 Charging PCIe Express® Card with Dual 10Gb Controller!
Install Sonnet’s Allegro™ Pro USB 3.1 PCIe card in your Mac Pro® tower, Windows® PC, or Linux computer with PCIe slots; or Thunderbolt™ to PCIe card expansion system to support your fast USB drives at maximum performance.

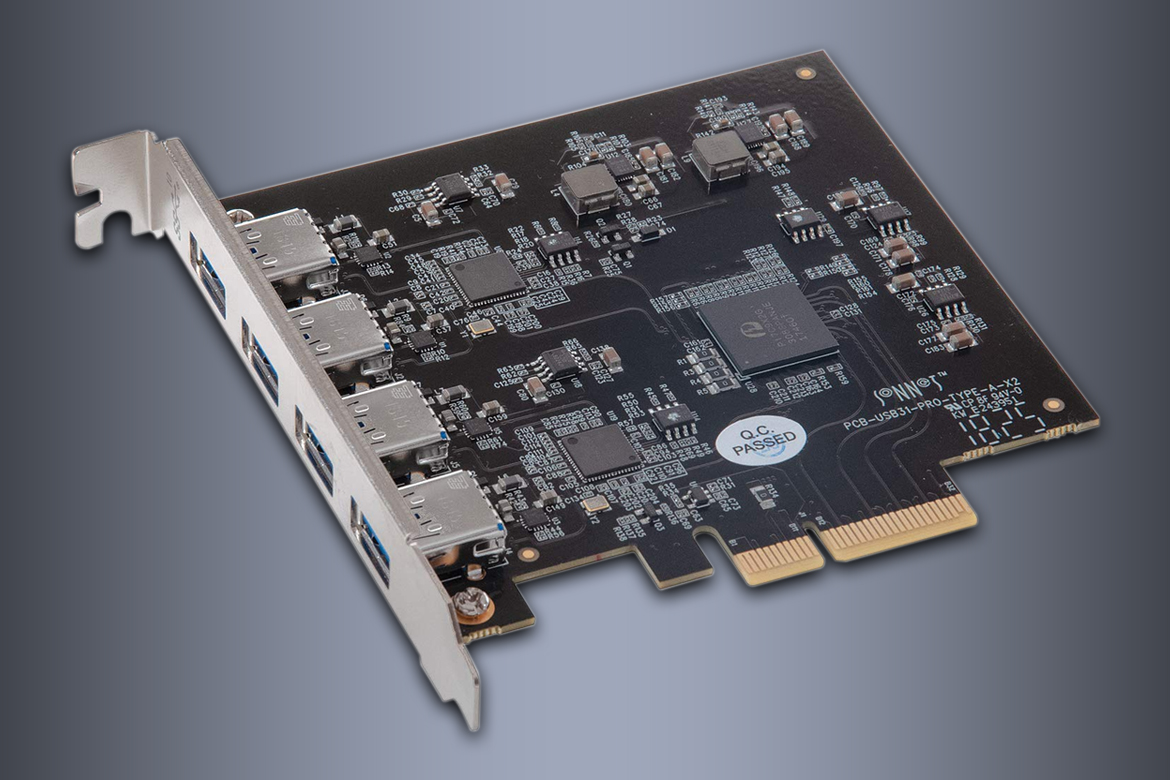

Two Gen 2 Controllers, Four USB-A Ports
Featuring two 10Gbps USB 3.1 Gen 2 controllers and four USB-A ports, the Allegro Pro USB 3.1 PCIe card supports the fastest USB drives available, yet provides the most common connection type for peripheral devices.
The Speed and Power
Connected to a single USB 3.1 Gen 2 SSD RAID device, Sonnet’s Allegro Pro USB 3.1 PCIe card supports data transfers up to 800 MB/s—transfers complete in half the time compared with using a USB 3.1 Gen 1 or USB 3.0 adapter card! Made possible through the use of dual controllers, with two connected drives, each port supports simultaneous 660 MB/s transfers. With four drives connected, each port supports simultaneous 300 MB/s transfers!
No Auxiliary Power Needed
Ordinary USB-A cards require the connection of a separate power connector. The Allegro Pro draws the power it needs from the slot it’s installed in to power connected drives, enabling you to install the card in any compatible computer or Thunderbolt expansion chassis that doesn’t have these power connectors available.
Independent Power Regulation for Each Port
Ordinary USB-A cards can provide poor power regulation through their ports. The Allegro Pro card protects each port from power glitches on adjacent ports—such as when a hard drive spins up after connection—preventing auto-disconnects of already-connected drives.
Resettable Fuses
Unlike ordinary USB-A cards, the Allegro Pro features a resettable fuse on each port to protect the card and your computer should a cable or peripheral fail. Resetting a tripped fuse is simple— just shut down and restart your computer.
Optimized for Thunderbolt
Got a Thunderbolt connection, but no PCIe slot? The Allegro Pro USB 3.1 PCIe card is ideal for use in Sonnet’s Thunderbolt 2 and Thunderbolt 3 to PCIe card expansion systems, including Echo Express™ and xMac™ desktop and rackmount chassis. Now you can add four SuperSpeed+ USB-A ports to your computer without expansion card slots.

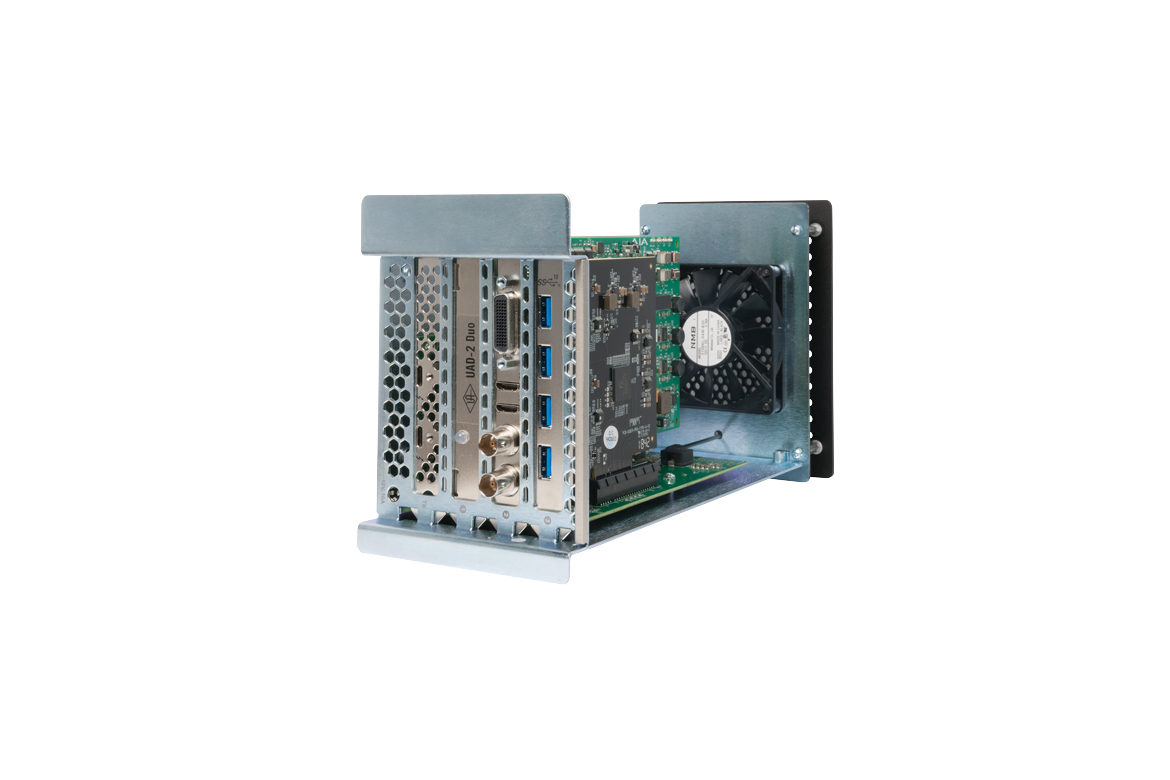

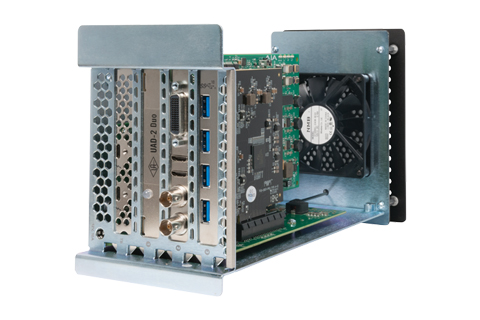

Perfect for the Extra Slot in Your Multi-Slot Thunderbolt Chassis
Have a multi-slot Thunderbolt 2 or Thunderbolt 3 to PCIe card expansion chassis with an open slot? Installing an Allegro Pro USB 3.1 PCIe card is an excellent way to inexpensively add four 10Gb USB-A ports to your computer.
Easy Installation, Broad Device Support
The full-height Allegro Pro USB 3.1 PCIe card installs easily into any PCIe x4 (mechanical) or larger slot. The Sonnet card features hot-pluggable and hot-swappable device connection support with automatic device configuration, and works with all USB-IF compliant USB peripherals.
| Part Number | USB3-PRO-4P10-E |
| Hardware | |
| Form Factor | PCIe computer card |
| Bus Interface | PCI Express 2.0 x4 |
| Peripherals Supported | Industry standard USB 3.1 Gen 2, 3.0, 2.0, and 1.1 |
| Bus Powered Peripherals Supported |
|
| Cables Supported |
|
| Chipset | 2x ASMedia 1142 |
| RoHS Compliant | Yes |
| USB Support | |
| Standard | Complies with OHCI (Open Host Controller Interface), EHCI (Enhanced Host Controller Interface), and xHCI (eXtensible Host Controller Interface) standards |
| UASP | USB attached SCSI protocol supported under macOS 10.10 & 10.12+, Windows 10 |
| USB Charging | USB Battery Charging 1.2 compliant (up to 7.5W per port) |
| Chipset Throughput | 20Gbps combined port throughput |
| Number of Devices Supported | Up to 62 |
| Hot Plug | Supports hot-pluggable and hot swappable device connection |
| Boot Support | No computers support booting at this time |
Mac® Compatibility
- Mac Pro® (3,1, 4,1, 5,1, or 7,1 [2019])
- macOS 10.10.5, 10.12.6+
(not compatible with macOS 10.11) - macOS Mojave compatible
Windows® Compatibility
- Computer with PCIe slots
- Windows 10, 8.1, 7
- Windows Server 2016, 2012, and 2008 (64-bit editions)
Linux Compatibility
- Computer with PCIe slots
- Linux 4.12+ Kernel (LTS version only)
Thunderbolt Compatibility
- Supports USB 3 peripherals on a Mac or Windows PC when installed in a Thunderbolt 2 or Thunderbolt 3 PCIe expansion system
- macOS 10.12.6+
- Windows 10 Build 1709 or newer (64-bit edition)
