DuoModo eGPU Module
Sonnet

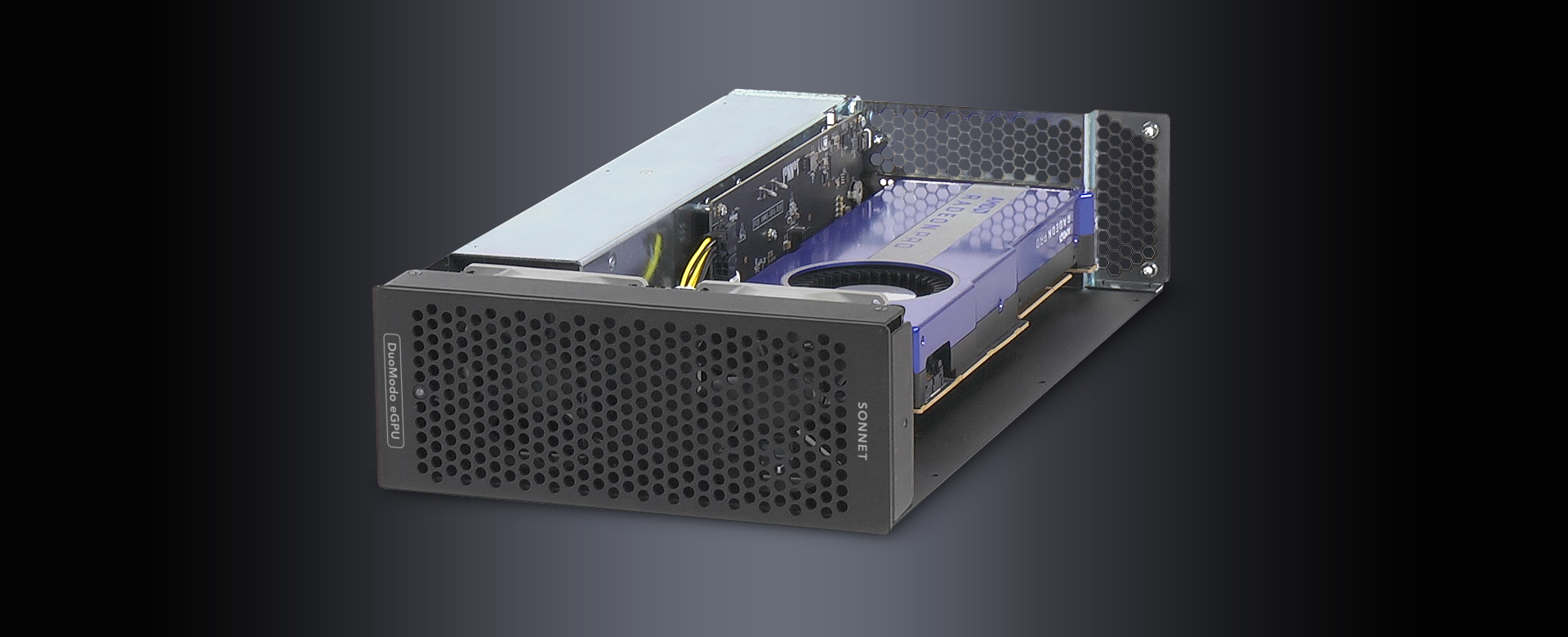

DuoModo eGPU Module

Thunderbolt to eGPU Card Expansion Module
Product Highlights
  • Fits an Intel or M1 Mac mini
  • Horizontal or Vertical Orientation
  • Access to Mac Mini's Ports
  • Rugged Steel Frame
  • Ürün Tanımı
  • Teknik Özellikler

video cards

Supports Latest Video Cards
  • Supports the latest Thunderbolt-compatible GPU cards
  • Supports 2.5-slot width GPU cards
  • View PDF of supported GPU cards




800W Future-proof Design
  • 800W provides all the power you need for today’s GPU cards and plenty of extra power to support future generation GPU cards with higher power requirements
  • Includes two 8-pin (6+2 pin) auxiliary power connectors




Quiet Fans
  • Dual Noctua fans offer ultra-quiet operation
  • Temperature-controlled, variable-speed
  • Rated at 17 dbA




40Gbps Thunderbolt Interface
  • 40Gbps Thunderbolt interface offers 2800 MB/s of PCIe bandwidth to the installed GPU card
  • Compatible with Thunderbolt 4 and Thunderbolt 3 computers
  • Thunderbolt cable included
  • ThunderLok 3 Thunderbolt connector retainer clip included


Graphics Workstation Power
If your workflow includes video editing, rendering, color grading, animating or creating special effects, many of the pro applications you use rely on desktop and workstation graphics (GPU) cards to do the heavy lifting in processing data. Unfortunately, many popular computers are equipped only with integrated graphics processors or low-power discrete GPUs that provide less than ideal performance. Happily, there’s a simple path to greater productivity—add a Sonnet external GPU (eGPU). The DuoModo eGPU Module Thunderbolt to GPU PCIe Card Expansion System boosts your eGPU-compatible computer’s graphics performance by connecting a high-performance desktop or workstation GPU card to your computer via a single cable.

Built for GPU Power
  • Provides robust and well-regulated power for current and future GPU cards
  • Supports the latest AMD Radeon cards, including the RX 6900 XT and PRO W6800
  • Designed to also support overclocked NVIDIA® cards with high peak power requirements


  • 1. Dual Temperature-controlled Noctua Fans – Provides cooling for the installed GPU card (sold separately), and the module's supporting Thunderbolt and power circuitry
  • 2. Auxiliary Power Connectors – Includes two 8-pin (6+2 pin) auxiliary power connectors
  • 3. 800W Power Supply – Supports cards requiring up to 750W, with power to spare to support future generation GPU cards with higher power requirements


Expansive GPU Card Compatibility
The DuoModo eGPU Module is designed to accommodate the most power-hungry (up to) 2.5-slot width GPU cards. It supports Thunderbolt-compatible cards with popular GPU chipsets—such as AMD Radeon RX series and NVIDIA GeForce® series and TITAN GPUs. Even pro cards — AMD Radeon Pro and NVIDIA Quadro® GPUs — are supported! Note that macOS® supports only AMD GPU cards in eGPU systems, while Windows® supports AMD and NVIDIA cards.

Demanding 4K to 8K Worflows? Double Your DuoModos.
Many task times on supported applications — such as Adobe® Premiere® Pro, DaVinci Resolve, and Maxon Cinema4D, to name a few — can be cut significantly with one eGPU connected. But, for computers with Intel processors and multiple Thunderbolt ports, times can be slashed when two DuoModo eGPU Modules are employed. Connecting two eGPUs can multiply your computer’s graphics processing power, enabling it to handle today's demanding 4K, 5K, 6K, and 8K workflows more efficiently. Plus, a computer’s onboard discrete GPU can also significantly contribute to the aggregate performance.

Part Number DM-MOD-GPU
Form Factor eGPU Module
External Connectors One Thunderbolt
Power (C14-type)
Internal Connectors Two 8-pin (6+2 pin) power connectors
Expansion Slot One x16 mechanical (x4 electrical, Thunderbolt spec) PCIe 3.0
GPU Card Supported One full-length, full-height, 2.5-slot GPU card
Maximum GPU card size is 312 mm x 140mm x 58mm
Power Supply Universal 800W, 100-240V AC, 50-60 Hz
Supports cards requiring up to 750W of peak power
Standy Power Consumes 8.5W (sleep) / 14W (idle)
Operating Temperatures 0°C to 35°C (32°F to 95°F)
Dimensions (WxDxH) 3.3 x 16.6 x 8.5 in. (8.4 x 42.2 x 21.6cm)
Weight 5.8 lbs (2.63 kg)
Compliance RoHS 3 (Directive 2015/863)
IEC62368-1 and IEC62368-2 Safety

Mac Compatibility
  • Intel Mac with Thunderbolt 3 ports
  • macOS 10.13.6+
    AMD Radeon RX 570, 580, Vega 56, Vega 64
    AMD Radeon Pro WX 7100, 8200, 9100
  • macOS 10.14.6+
    Support added for AMD Radeon RX 560 and 590
    Support added for two eGPUs

    Support added for Parallels Desktop for Mac
  • macOS 10.15.7+
    Support added for AMD Radeon RX 5500, 5500 XT, 5600, 5700, 5700 XT
    Support added for AMD Radeon Pro W5500, W5700
  • macOS 11.6+
    Support added for AMD Radeon RX 6800, 6800 XT, 6900 XT
    Support added for AMD Radeon Pro W6800
  • macOS 12.2
    Support added for AMD Radeon RX 6600, 6600 XT
  • macOS 12.3
    Temporarily not compatible with eGPUs
  • M1, M1 Pro, M1 Max, and M1 Ultra Macs do not support eGPUs
  • Thunderbolt 2 or Thunderbolt 1 Macs do not support eGPUs
  • Windows 10 under Bootcamp on any Mac does not support eGPUs

Windows Compatibility
  • Windows computer with a Thunderbolt 4 or Thunderbolt 3 port
  • Windows 11, 10

Monitor Compatibility
  • 1080p, 4K, and 5K monitors using DP or HDMI ports
  • 4K, 5K, and 6K Thunderbolt 3 monitors require a GPU card with USB-C output
    LG UltraFine 4K and 5K displays
    Apple Pro Display XDR 6K
  • 49” 5120x1440 Dual QHD monitors using a DP port:
    Dell Ultrasharp 49 Curved Monitor U4919DW
    LG 49 inch 32:9 UltraWide Dual QHD IPS Curved LED Monitor 49WL95C-W
    Philips Brilliance 32:9 Superwide Curved LCD Display 499P9H/27
    Samsung 49” CRG9 Dual QHD Curved QLED Gaming Monitor LC49RG90SSNXZA
  • 8K displays are compatible with Windows(4), but not compatible with macOS
