Fusion Dual 2.5-inch SSD RAID
Sonnet

Fusion Dual 2.5-inch SSD RAID

Dual 2.5-inch SSD PCIe 3.0 card with hardware RAID controller, plus 10Gbps USB-C port • Add your own SSDs
Key Features
  • Add up to 16TB of SSD Storage—Mounts two cost-effective 2.5-inch SATA SSDs (sold separately) in a full-length PCIe slot.
  • Great SSD Performance—Supports data transfers speeds up to 1000 MB/s.
  • Onboard Hardware RAID Controller—Supports RAID 0, RAID 1, Span, and JBOD configurations in macOS®, Windows®, and Linux®.
  • USB 3.2 Gen 2 USB-C Port—Includes SuperSpeed USB-C 10Gbps port to connect a fast external drive.
  • Great USB Performance—Supports data transfers speeds up to 1000 MB/s.
  • Power for Peripherals—Supports a USB bus-powered SSD, SSD RAID, or hard drive device with up to 15W power.
  • Optimized for Thunderbolt—Use in Sonnet Thunderbolt expansion systems at full performance!
  • Mac, Windows & Linux Compatible—Supports Mac®, Windows, and Linux computers with PCIe 3.0 slots.

  • Ürün Tanımı
  • Teknik Özellikler

Add up to 16TB of SSD Storage!
Install Two 2.5-inch SATA SSDs into a PCIe Card Slot

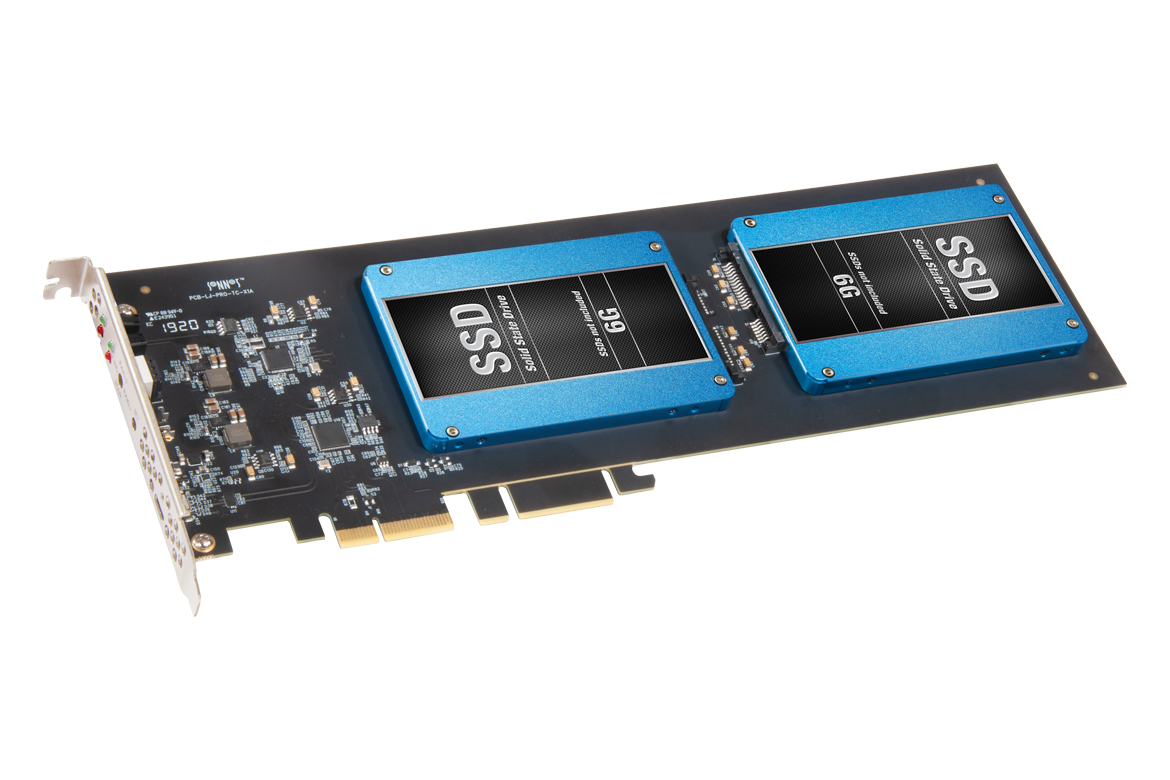

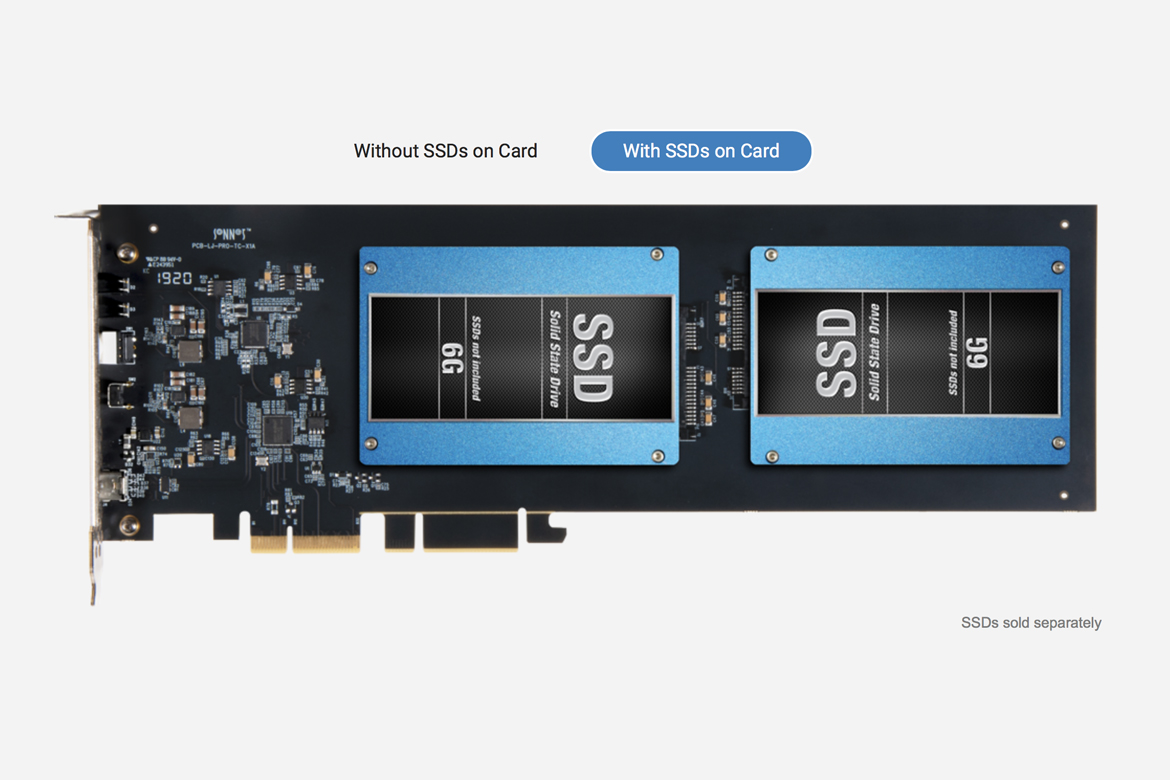

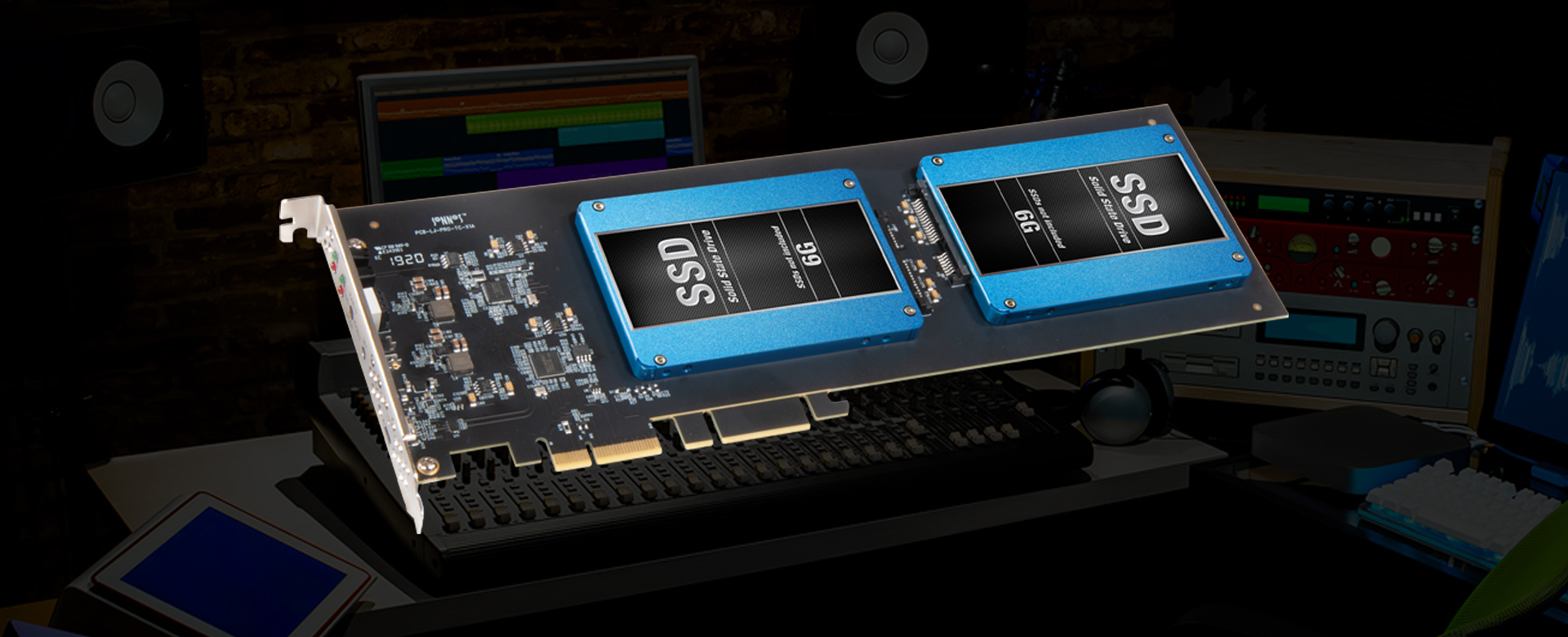

If you need faster, high-capacity internal storage for your desktop computer or server, 2.5-inch SATA SSDs are the cost-effective choice. Sonnet’s Fusion™ Dual 2.5-inch SSD RAID PCIe card enables you to upgrade your system in a flash, mounting one or two SSDs (sold separately) with up to 16TB capacity in a single full-length PCIe card slot, with no power or data cables, adapters, or mounting trays required.

Fast USB Speed and Plenty of Power for Bus-powered Devices
Sonnet’s Fusion Dual 2.5-inch SSD RAID card also includes a SuperSpeed USB-C (USB 3.2 Gen 2) port that supports data transfers of up to 1000 MB/s, and provides up to 15W of power to support bus-powered devices—you can connect a fast external drive without installing another card.

Thunderbolt Port? Connect Two SSDs Through One Cable
Got a Thunderbolt connection, but no PCIe card slot? Fusion Dual 2.5-inch SSD RAID card provides full performance and is ideal for use in a Sonnet Thunderbolt expansion systems. The combo enables you to add two SSDs plus a USB-C port to any Mac (M1, M2, M1 Pro, M1 Max, M1 Ultra, Intel), Windows, and Linux computer with Thunderbolt ports.

Part Number FUS-SSD-2RAID-E
Form Factor Full-height, full-length PCIe card
Bus Interface PCI Express 3.0 x2

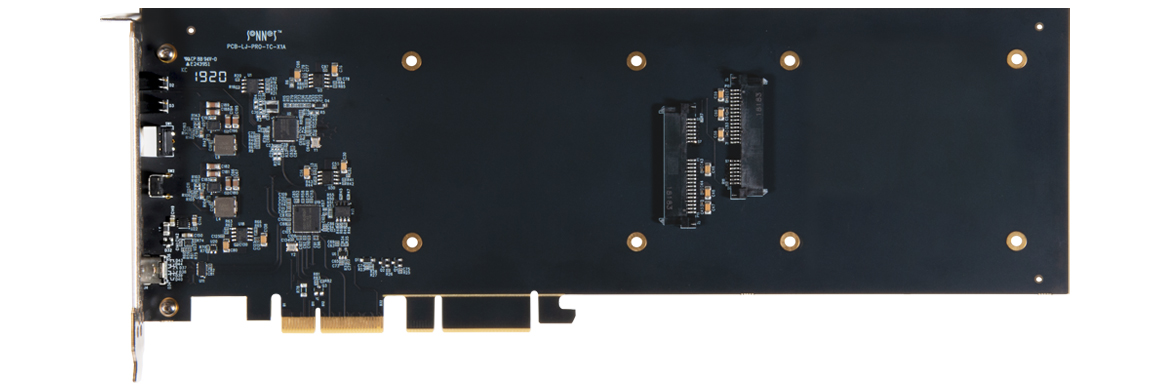

Internal Connectors Two SATA for 2.5-inch SSDs

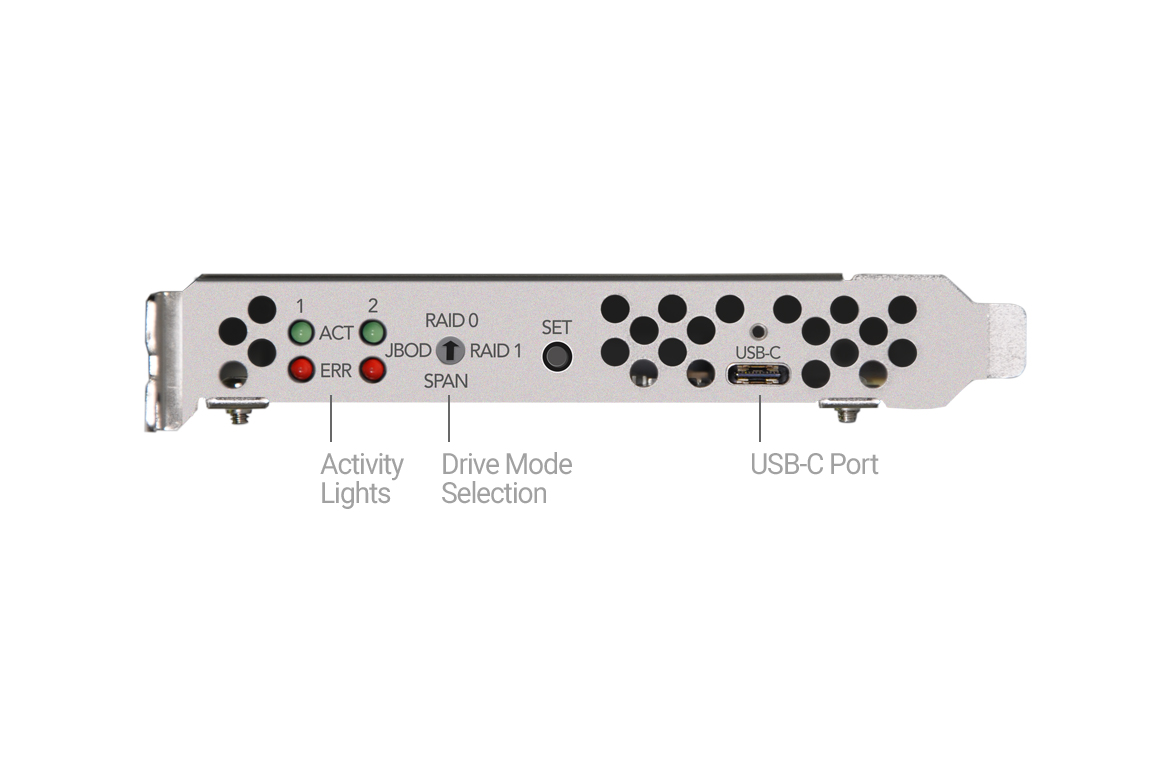

External Connector One USB-C port (10Gbps USB 3.2 Gen 2)
SSDs Supported SATA 6 Gb/s
Boot Support No
Supported Drive Configurations RAID 0
RAID 1
Span
JBOD
S.M.A.R.T. Status Data Reporting Support No

USB-C Port Specifications
Peripherals Supported Industry standard USB 3.2 Gen 1, 2 & 2x2; USB 3.1 Gen 1 & 2; USB 3.0, 2.0, and 1.1
Thunderbolt 3-only peripherals are NOT supported
Bus-powered Peripherals Supported HD, SSD, SSD RAID
3.0A advertised using USB CC (Channel Configuration)
Up to 15W for operation or charging
Cables Supported USB-C 10Gbps
USB-C 5Gbps
Thunderbolt 3 40Gbps (0.5- and 0.7-meter only)
Thunderbolt 3 20Gbps
USB Chipset ASMedia 3142
ASMedia 1352R
USB Standard Complies with OHCI (Open Host Controller Interface), EHCI (Enhanced Host Controller Interface), and xHCI (eXtensible Host Controller Interface) standards
UASP USB attached SCSI protocol supported under macOS 10.12+, Windows 10
Number of Devices Supported Up to 31
Hot Plug Supports hot-pluggable and hot swappable device connection
Boot Support No computers support booting at this time
Compliance RoHS 3 (Directive 2015/863)
IEC62368-1 and IEC62368-2 Safety

Daha fazla
Mac Compatibility
  • Mac Pro 7,1 (2019)
  • Mac Pro 5,1(1) (Mid 2010 & Mid 2012)
  • macOS 10.12.6+(2)
  • macOS Ventura Compatible

Windows Compatibility
  • Windows computer with available full-length, full-height PCIe slot (PCIe 3.0 slot is preferred)
  • Windows 11 and 10
  • Windows Server 2019 and 2016 (64-bit editions)

Linux Compatibility
  • Linux computer with PCIe slots
  • Linux Kernel 5.4.0+
  • Ubuntu 20.04.1+

Thunderbolt Compatibility
  • Mac (M1, M2, M1 Pro, M1 Max, M1 Ultra, and Intel®) computer via a Thunderbolt PCIe card expansion system with available full-length PCIe slot
  • Windows computer via a Thunderbolt PCIe card expansion system with available full-length PCIe slot
  • Linux computer via a Thunderbolt PCIe card expansion system with available full-length PCIe slot
