M.2 2x4 Low-profile PCIe Card
Sonnet

M.2 2x4 Low-profile PCIe Card

Two U.2 NVMe SSD connectors on a PCIe 3.0 x16 card. Add your own U.2 SSDs.
Key Features
  • Add up to 32TB Ultra-Fast Storage—Mounts two U.2 NVMe SSDs (sold separately) in an x16 PCI slot.
  • High-Performance PCIe Interface—PCI Express 3.0 x8 host bus interface is bridged to the SSDs, devoting four lanes of PCIe 3.0 bandwidth to each installed SSD.
  • Fantastic Performance—Achieve sustained RAID 0 transfer speeds up to 6,250 MB/s.
  • RAID Support—Supports macOS, Windows, and Linux RAID 0 and 1 configurations.
  • macOS Boot Support—Supports booting from a single (non-RAIDed) attached SSD.
  • Optimized for Thunderbolt—Use in Sonnet Thunderbolt expansion systems to connect two enterprise SSDs through one cable with performance up to 2800 MB/s.
  • NVMe Compliant—No drivers required.
  • S.M.A.R.T. Operation—Supports S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) data reporting.

  • Ürün Tanımı
  • Teknik Özellikler

The Most Economical Way to Add Ultra-fast, Extra-large Capacity SSD Storage

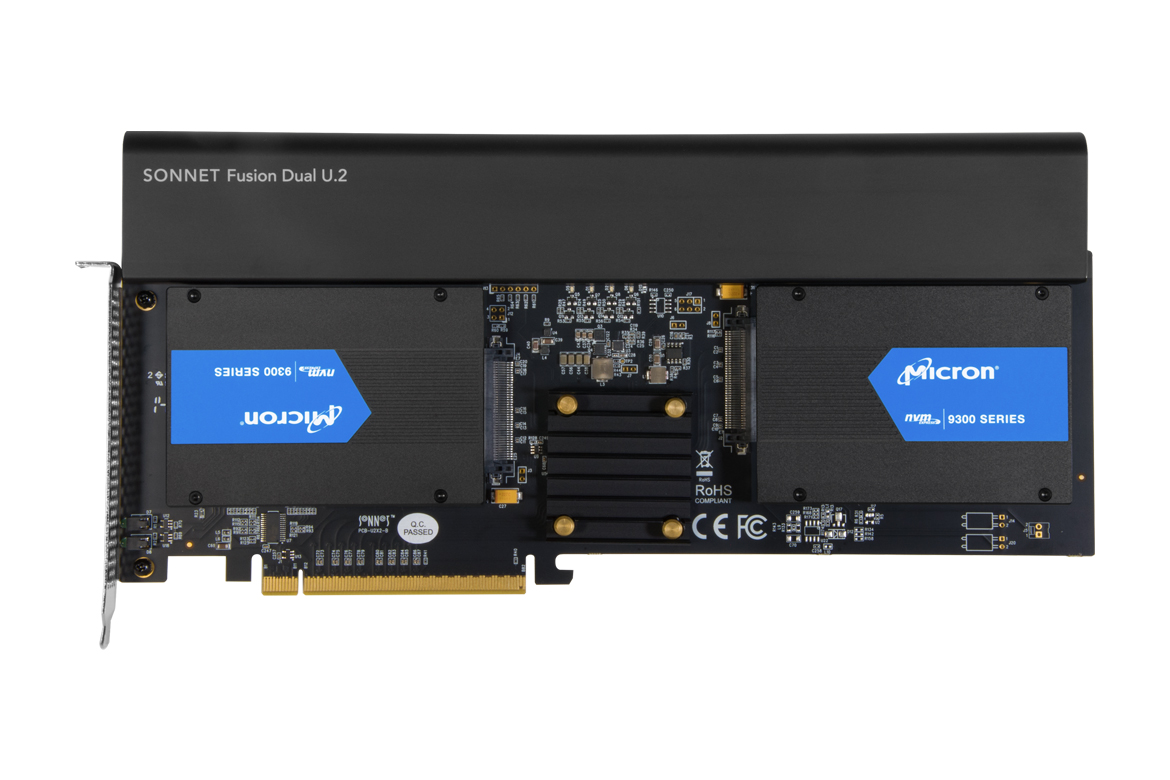

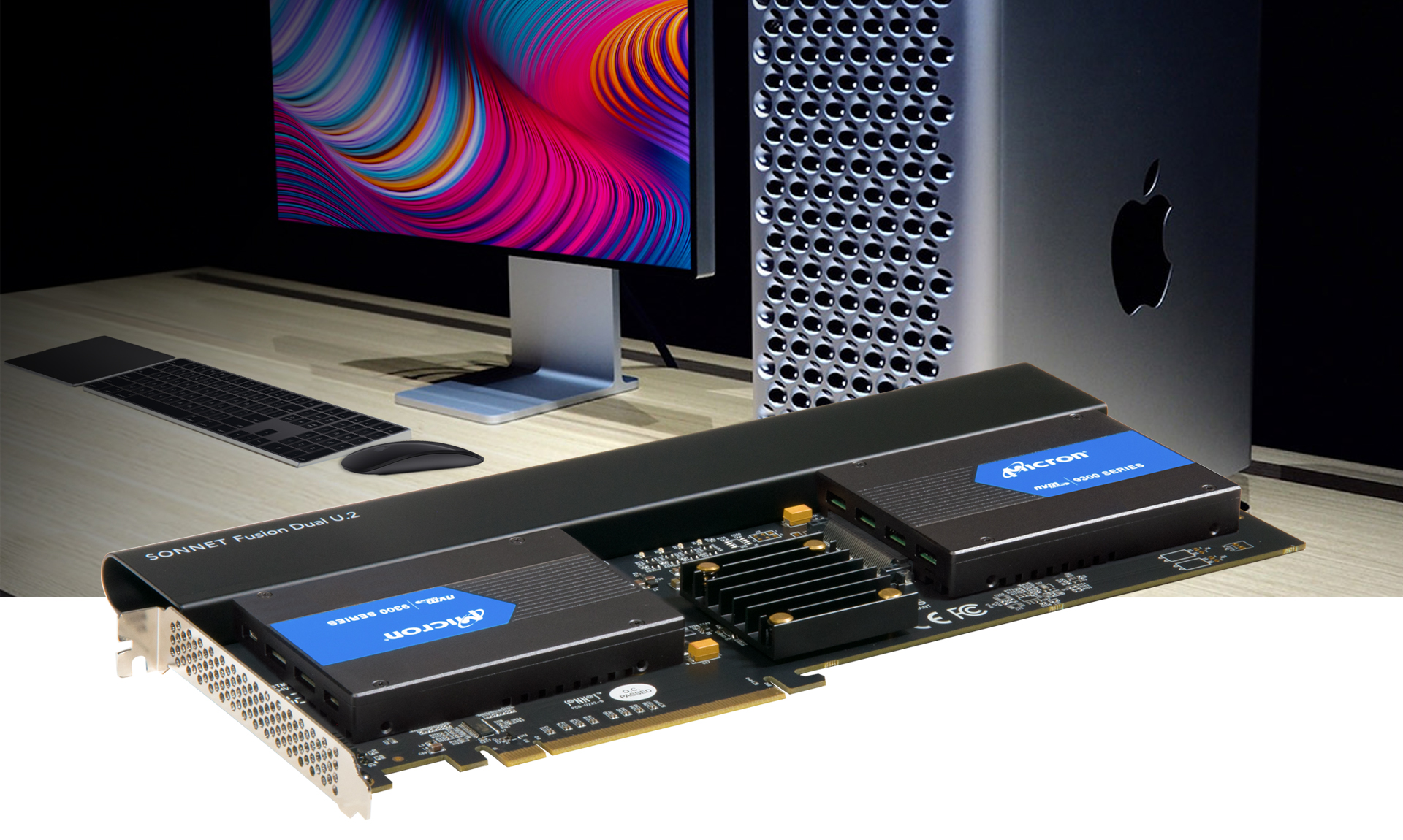

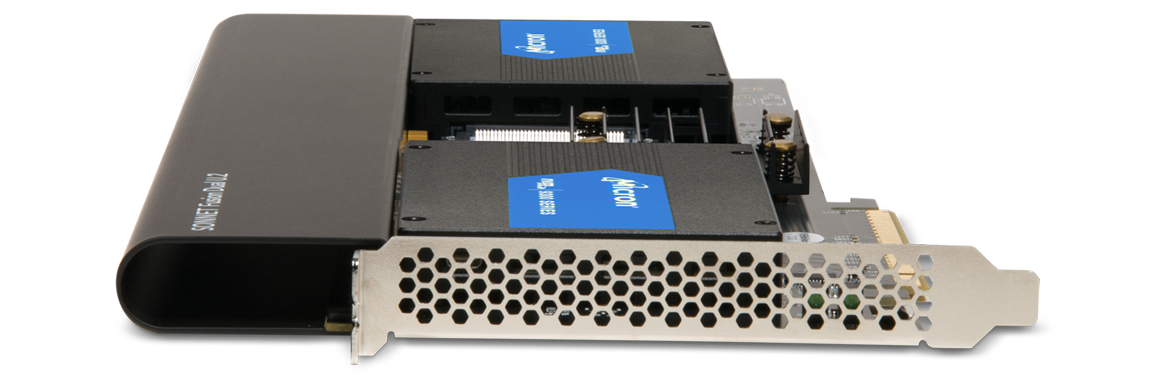

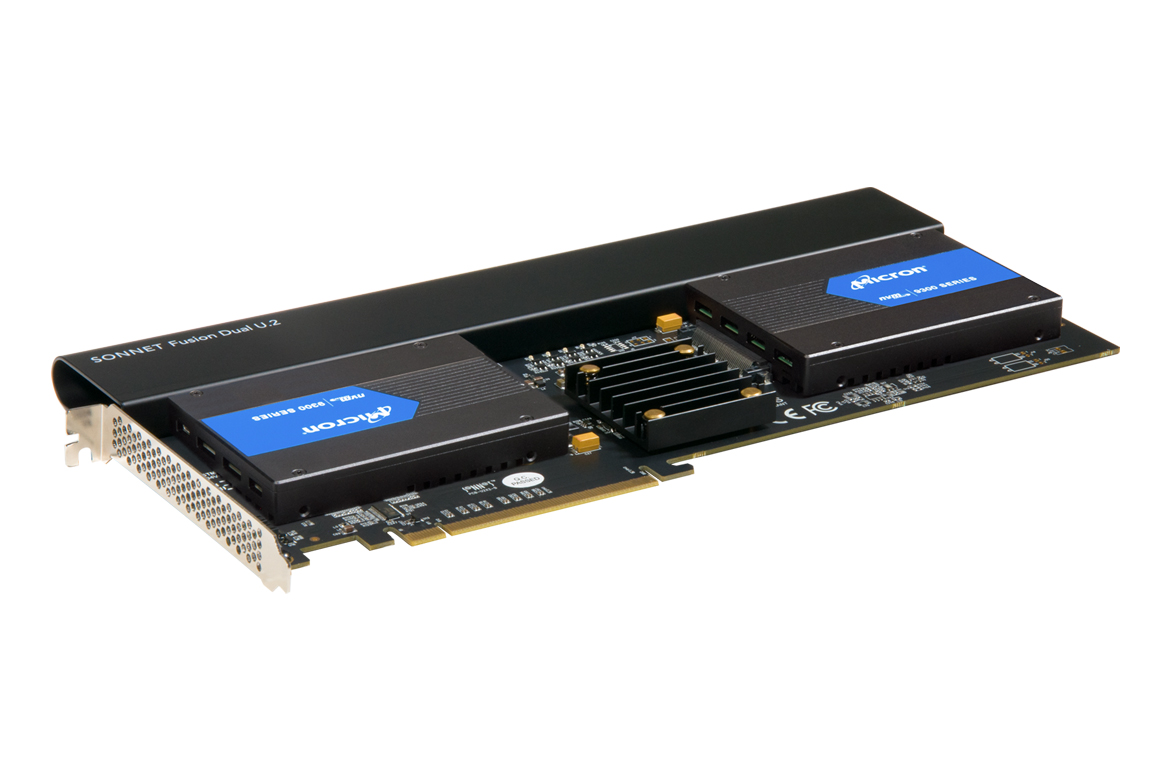

Do you need more storage capacity for your computer? Is super high-speed throughput plus maximum IOPS (Input/Output Operations Per Second) performance critical to your work? U.2 NVMe PCIe SSDs deliver both. Sonnet’s Fusion™ Dual U.2 SSD PCIe Card enables you to upgrade your system in a flash, mounting two enterprise class U.2 SSDs with up to 32TB or greater capacity in a single full-length x16 PCIe card slot, with no separate power or data cables, drive adapters, or mounting trays required.

Part Number FUS-U2-2X4-E3
Form Factor Full-length, full-height computer card
Bus Interface PCI Express 3.0 x8
Internal Connectors Two U.2 (SFF-8639)
SSDs Supported U.2 (2.5-inch) NVMe PCIe SSDs
2.5-inch SATA and SAS SSDs NOT supported
SSDs Supported M.2 2280 NVMe PCIe SSDs
Boot Support macOS
Only from a single SSD (not RAIDed)
Mac Pro 7,1 or Mac Pro 5,1
Any Thunderbolt Mac

Windows, Linux
No
RAID Support macOS, Windows, Linux
RAID 0 or 1 (Stripe or Mirror)
NVME Support Yes
S.M.A.R.T. Status Data Reporting Support Yes
Compliance RoHS 3 (Directive 2015/863)
IEC62368-1 and IEC62368-2 Safety

Daha fazla
Mac Compatibility

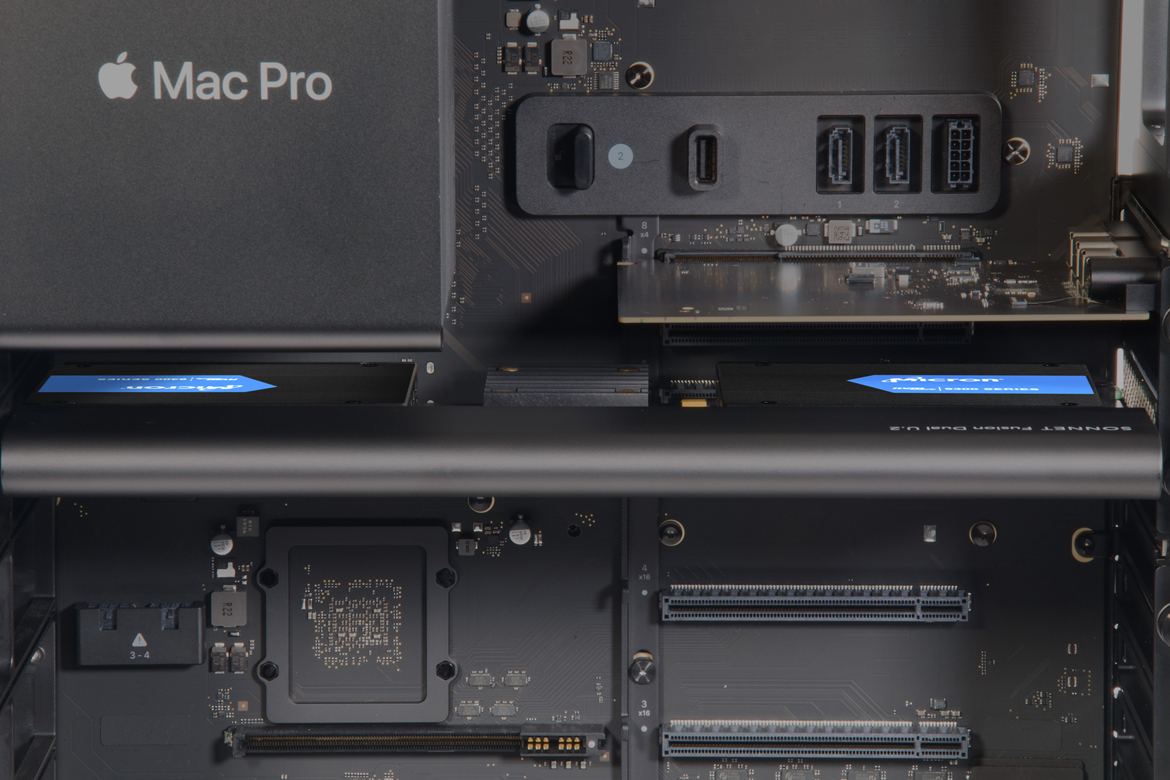

  • Mac Pro 7,1 (2019)
  • Mac Pro 5,1(2) (Mid 2010 & Mid 2012) with available full-length x16 PCIe slot
  • macOS 10.13.6+
  • macOS Ventura compatible
  • Several U.2s are not compatible with macOS.

Windows Compatibility
  • Windows computer with available full-length, full-height x16 PCIe slot (PCIe bifurcation not required)
  • Windows 11 and 10
  • Windows Server 2019, 2016, and 2012 R2

Linux Compatibility
  • Windows computerwith available full-length, full-height x16 PCIe slot (PCIe bifurcation not required)
  • Linux Kernel 5.0+
    Red Hat Enterprise Linux 8
    SUSE Linux Enterprise Server 15 SP2
    Ubuntu 20.04 LTS and 21.10

VMWare
  • ESXi7

Thunderbolt Compatibility
  • Mac (M2, M1, M1 Pro, M1 Max, M1 Ultra, and Intel®) computer via a Thunderbolt PCIe card expansion system with available full-length x16 PCIe slot
  • Windows computer via a Thunderbolt PCIe card expansion system with available full-length x16 PCIe slot
  • Linux computer via a Thunderbolt PCIe card expansion system with available full-length x16 PCIe slot

Intel VROC Compatibility
  • Switch is compatible with Intel VMD controllers
