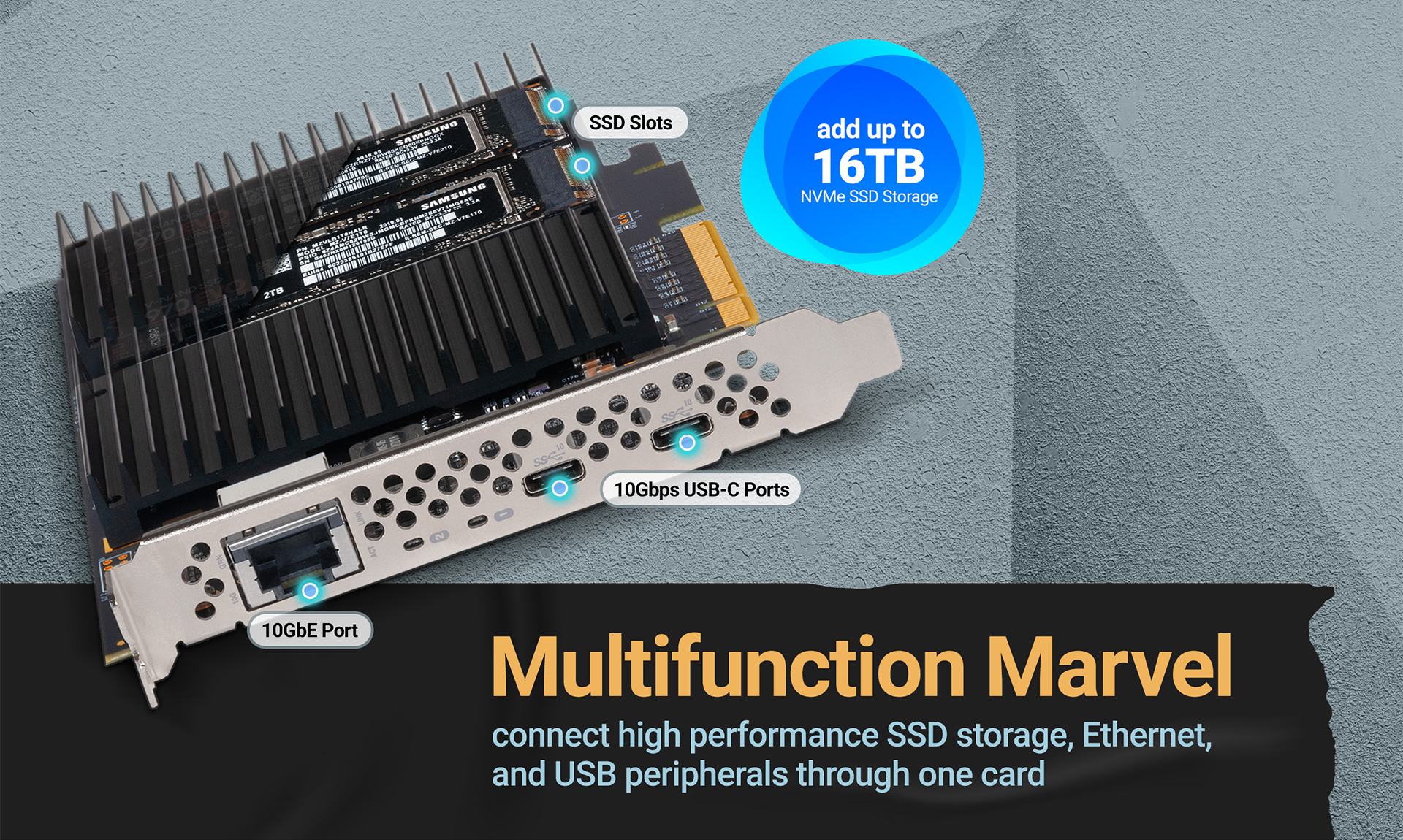

Multiple Functions. High Performer at Each One.

Only multifunction PCIe adapter card with M.2 NVMe storage, 10Gb Ethernet, and 10Gbps USB-C connectivity
Are you looking to add SSD storage, ultra-high-speed Ethernet connectivity, or high-performance USB-C® ports to your setup? Or all three? Even in computers with multiple expansion card slots, installing three adapter cards to get the interfaces you need may not be feasible. Sonnet’s engineers designed a truly unique solution — the McFiver™ PCIe® Card. Mac, Windows, and Linux compatible, this professional, multifunction adapter includes five interfaces — this is the only adapter card to feature dual M.2 NVMe SSD slots, one RJ45 10Gb Ethernet port, and two 10Gbps USB-C ports, fitting them all on a standard full-height PCIe card.

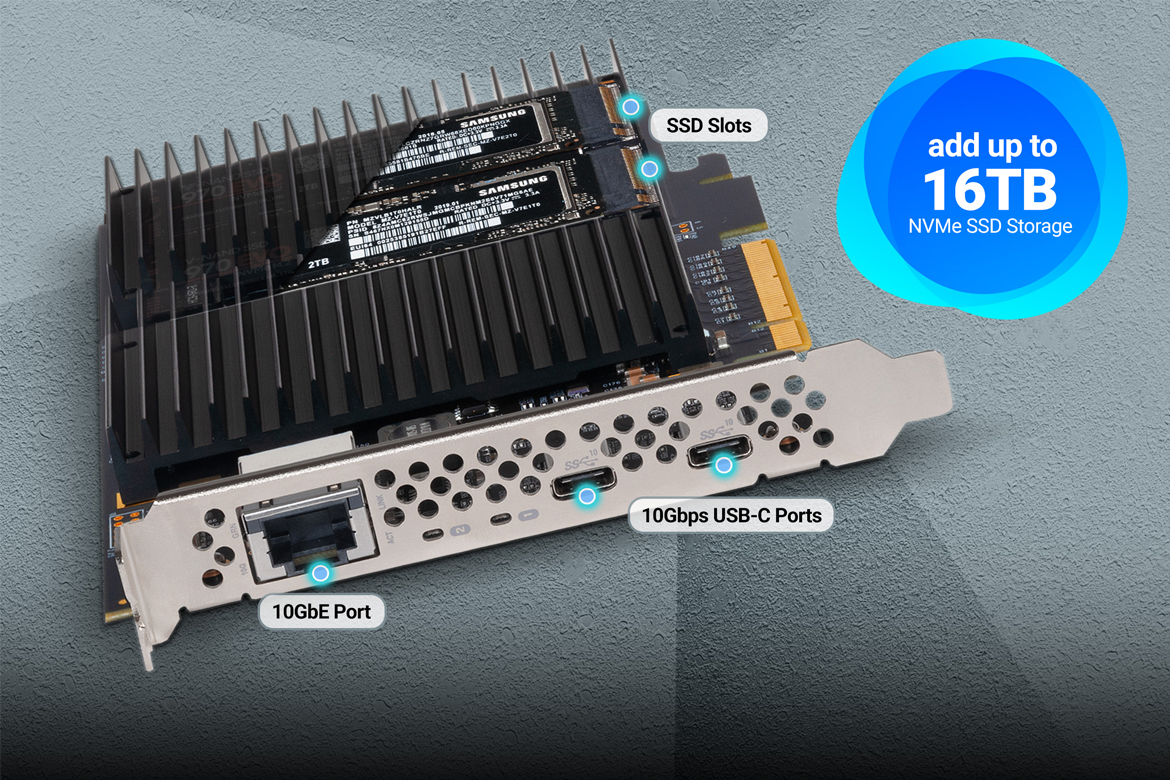

Two M.2 NVMe Slots
Add up to 16TB of storage with your own high performance M.2 NVMe SSDs

One 10GBASE-T 10GbE Port
RJ45 port connects your computer to 10GbE infrastructure via inexpensive copper cabling

Two 10Gbps USB-C Ports
Adds two USB-C ports with full 10Gbps bandwidth per port

One PCIe x8 Slot is all You Need

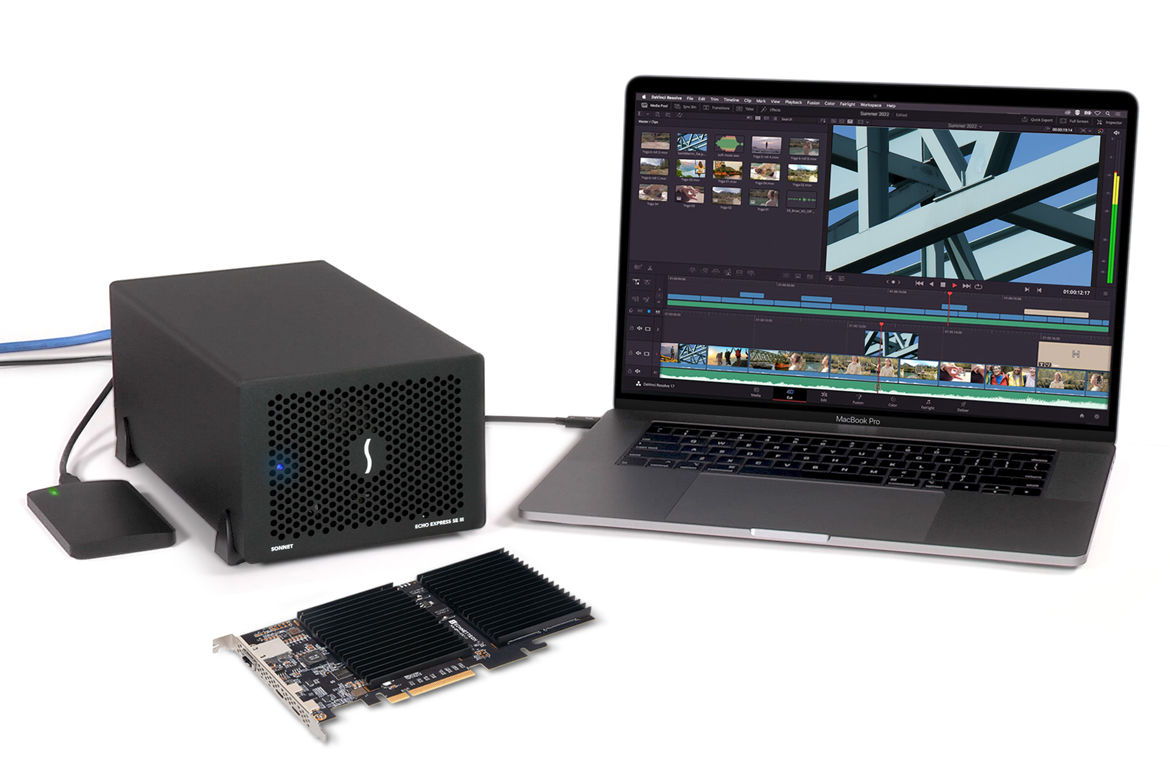

Install the McFiver PCIe Card into an available x8 PCIe 3.0 or 4.0 slot to obtain maximum performance in your computer. No PCIe card slots in your computer, but Thunderbolt ports outside? The McFiver provides great performance, a lot of connectivity, and is ideal for use in an Echo™ Thunderbolt™ to PCIe card expansion system with an available full-height x8 card slot. The combo enables you to take advantage or all that the McFiver has to offer with any compatible Mac (M1, M1 Pro, M1 Max, M1 Ultra, Intel®), Windows, or Linux computer with Thunderbolt ports.

Dual M.2 NVMe SSD Slots

Add Up to 16TB of SSD Storage
McFiver PCIe Card provides mass SSD storage capability on a PCIe card. Dual M.2 NVMe PCIe SSD slots support up to 16TB internal high performance storage expansion (SSDs sold separately), enabling you to save and access your data fast, and effortlessly store large files and media libraries.

Super High-Speed Data Transfers

If super high-speed data transfers are critical to your work, you need an NVMe SSD-based upgrade. Installed on the McFiver PCIe Card, a single NVMe PCIe SSD can deliver tremendous performance — up to 3400 MB/s read and write sustained data transfers — but the McFiver enables you to mount two of them. Formatted as a RAID 0 set, two SSDs can achieve sustained transfers up to 6600 MB/s read and write. No matter how you use it, you’ll love the speed.

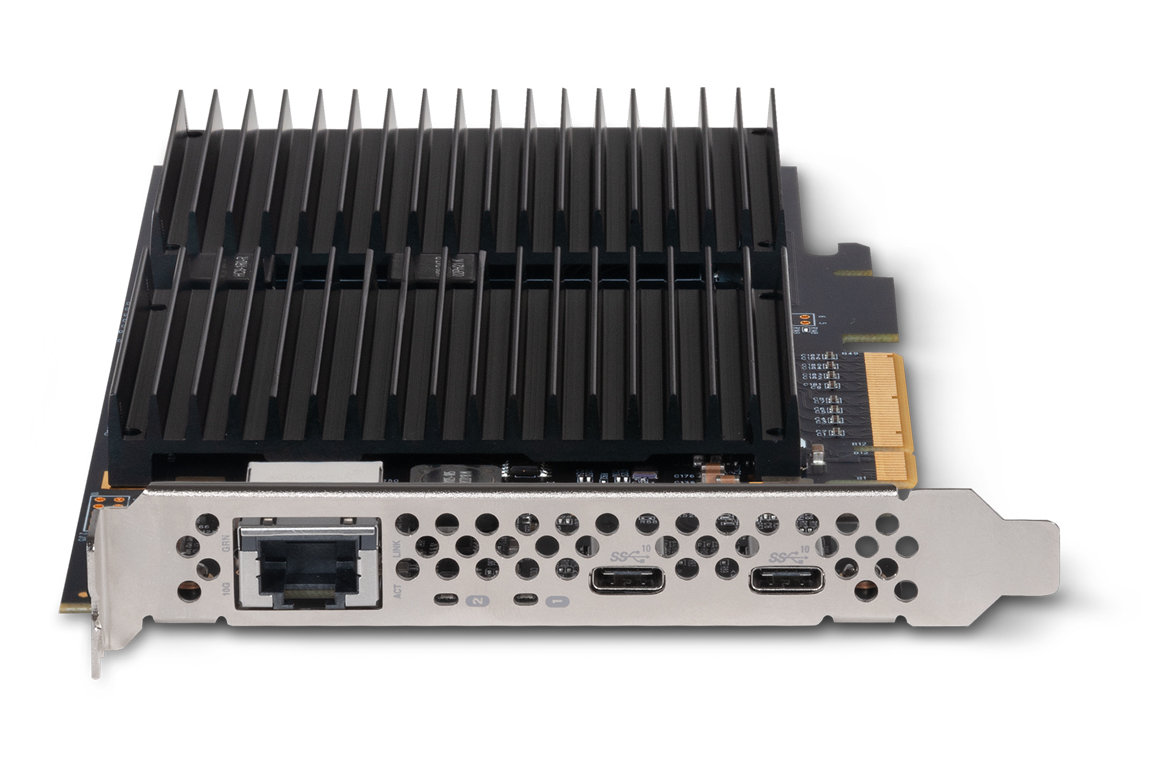

Silent SSD Cooling

No Thermal Throttling. No Slowdowns. SSDs heat up significantly when performing very large file transfers and will protect themselves from overheating by “thermal throttling” — a feature that drastically cuts SSDs’ performance while allowing them to cool. The McFiver PCIe Card’s silent SSD cooling solution works to eliminate the need for thermal throttling and enables your SSDs to always maintain their highest performance.

SSD SMART

Installing your M.2 SSDs on the McFiver PCIe Card is a simple task, and the card uses your computer’s operating system’s built-in drive utilities to format them. SSD health monitoring is supported through S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) data reporting. Are you a Mac user? You can install macOS® on one SSD to create a very fast boot volume, and then use the other installed SSD for file storage; as a super-fast plug-in, media storage, or scratch disk; or for Time Machine® backups.

10Gb Ethernet Port

Blazing-Fast 10GBASE-T Connectivity
The increasing demand for wired network bandwidth has pushed 10Gb Ethernet (10GbE) into the mainstream. It’s not just for use in software development, postproduction, and shared storage workflows where speed is critical — there’s increasing need for it in workflows of all kinds and businesses of all sizes. Very affordable 10GbE switches have reduced the cost of upgrading, but many computers don’t natively support 10GbE — the McFiver PCIe Card can get you connected. The McFiver is equipped with one RJ45 port that enables you to connect your computer to 10GbE infrastructure via Cat 6A cabling at up to 100 meters.

Multi-Gigabit Ethernet Support for Faster Transfers Across Existing Cabling

If your facility already has Cat 5e wiring installed, you can still get an amazing performance gain — from 250 to 500 percent over Gigabit Ethernet speed — without rewiring! The McFiver PCIe Card supports the NBASE-T™ industry-standard (multi-Gigabit Ethernet) of 2.5Gb and 5Gb link speeds to enable greater than Gigabit Ethernet speed over Cat 5e (or better) cabling when used with a multi-Gigabit compatible switch or router. You can utilize the same adapter card across your organization for users supported by different Ethernet cabling infrastructures to obtain the best possible performance.

macOS AVB Support

The McFiver PCIe Card supports Audio Video Bridging (IEEE 802.1Qav, AVB) under macOS. When used with a switch or router (plus infrastructure) with AVB support, the card is perfect for use in pro audio and video applications where synchronization of data streams is critical.

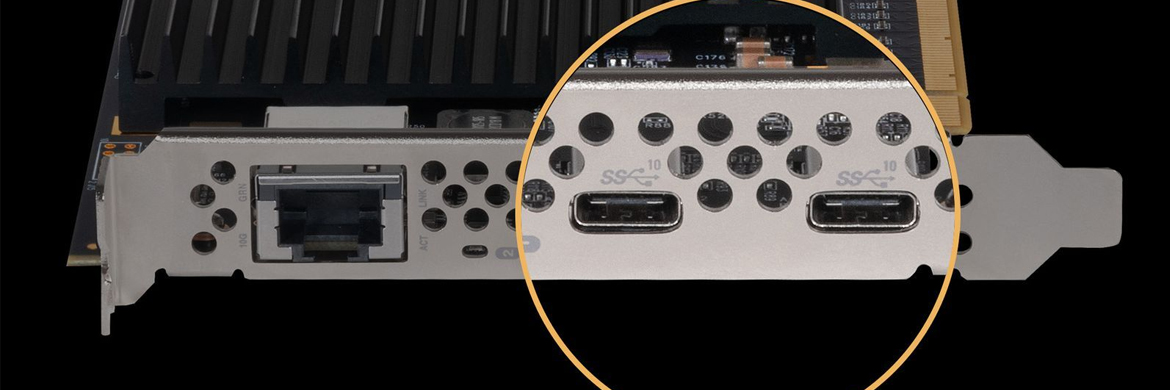

Two 10Gbps USB 3.2 Type-C Ports

High Performance USB 3.2 Gen 2 Controller
10Gbps USB 3.2 controller can concurrently deliver full 10Gbps bandwidth through both ports.

Intelligent Power Delivery and Management

Independent, per-port power regulation – prevents power glitches that cause auto-disconnects of already-connected drives.

10Gbps USB Performance Bliss

The fastest USB 3.2 Gen 2 drives available — equipped with NVMe SSDs — can transfer data at incredible speeds. Can your computer support their full performance? Upgrading your workflow with Sonnet’s McFiver PCIe Card ensures 10Gbps USB SSDs can operate at their peak performance.

High Speed Simultaneous Transfers

Many multi-port USB cards split their USB controller’s total bandwidth between all their ports, which limits performance when two or more devices are connected and operating. The McFiver PCIe Card features an advanced USB 3.2 Gen 2 controller that delivers full 10Gbps bandwidth per port and implements advanced data traffic management to eliminate bandwidth congestion. When installed in a computer’s PCIe 3.0 or 4.0 slot, the McFiver PCIe Card supports two simultaneous 10Gbps transfers, enabling it to transfer data from two drives to the computer (and from drive to drive) at maximum speeds of 1000 MB/s per drive.

Sonnet Port Power Advantages

Sonnet designed the McFiver PCIe Card with a focus on intelligent power delivery and management for attached SSDs powered through its ports — unlike ordinary USB adapter cards designed without attention to detail.

Super-powered USB Ports
The McFiver card provide 7.5W of power through each of its USB ports, supporting USB bus-powered SSDs and hubs without the need to connect an additional AC power adapter to the device.

No Auxiliary Power Required
Ordinary USB cards need a separate power connection. Sonnet’s McFiver card draws all the power necessary to operate connected drives from the slot it’s installed in. This enables you to install the Sonnet card in any compatible computer or Thunderbolt expansion system regardless of it having extra power connectors available.

Independent, Per-Port Power Regulation
The McFiver card regulates power to each port independently, providing each one protection from power glitches on the adjacent port. Ordinary USB cards can provide poor power regulation, allowing a connected drive to be forced off (auto-disconnected) when an additional drive is connected or disconnected.

Resettable Fuses
Unlike ordinary USB cards, the McFiver card features a resettable fuse on each port that protects both the card and computer should a cable or peripheral fail. Resetting a tripped fuse is simple — just shut down and then restart your computer.

Part Number	G10E-USBC-M2-E
Form Factor	Full-height, half-length+ (7.25 in.), x8 PCIe card
Bus Interface	PCI Express 3.0 x8
M.2 SSD Sockets Specifications	Internal Connectors Two M-keyed (NVMe) M.2 slots SSDs Supported M.2 2280 NVMe PCIe SSDs macOS Boot Support Only from a single SSD (not RAIDed) Mac Pro 7,1 Any Thunderbolt Mac Windows/Linux Boot Support No RAID Support macOS, Windows, Linux RAID 0 or 1 NVMe Support Yes S.M.A.R.T. Status Data Reporting Support Yes
10Gb Ethernet Port Specifications	External Connectors One RJ45 port 10GbE Controller Marvell AQC113S Network Support 10GBASE-T (100 meters using Cat 6A cabling; 55 meters using Cat 6 cabling) 5GBASE-T(3), 2.5GBASE-T(3),1000BASE-T (100 meters using Cat5e [or better] cabling) Packets Maximum packet size: 16352 bytes (jumbo frames); 9000 bytes under macOS Data Rates Supported 10 Gb/s, 5 Gb/s, 2.5 Gb/s, 1 Gb/s, 100 Mb/s Advanced Features Flow control support MSI (Message Signaled Interrupts) RSS (Receive-Side Scaling) Interrupt coalescing Multicast filtering Energy-Efficient Ethernet (IEEE 802.3az) 64-bit address support for systems using more than 4GB of physical memory Wake-on-LAN support Stateless Offloads TCP, UDP, and IPv4 checksum offloading TSO (TCP Segmentation Offload, AKA Large Send Offload) LRO (Large Receive Offload) RSS (Receiver Side Scaling)
USB-C 3.2 Gen 2 Ports Specifications	Peripherals Supported Industry standard USB 3.2 Gen 1, Gen 2 and 2x2; USB 3.1 Gen 1 and 2; USB 3.0, 2.0 and 1.1 Thunderbolt-only peripherals are NOT supported Bus-Powered Peripherals Supported HD, SSD, SSD RAID, etc. 7.5W (5V @ 1.5A) per port advertised using USB Type-C Charging Cables Supported USB-C (10Gbps) USB4 Thunderbolt 4 Thunderbolt 3 (≤ 0.8 meter) USB 3 Chipset ASMedia 3142 USB Standard Complies with OHCI (Open Host Controller Interface), EHCI (Enhanced Host Controller Interface), and xHCI (eXtensible Host Controller Interface) standards UASP USB attached SCSI protocol supported under macOS 12+, Windows 11 and 10 Hot Plug Supports hot-pluggable and hot swappable device connection Boot Support Booting not supported via devices attached to USB-C ports
Operating Temperatures	0ºC to 35ºC (32ºF to 95ºF)
Compliance	RoHS 3 (Directive 2015/863) IEC62368-1 and IEC62368-2 Safety
