NewTek TriCaster 2 Elite

NewTek TriCaster^® 2 Elite

Dünyanın en kapsamlı prodüksiyon rejisi

Ürün Özellikleri

Sağladığı 8 M/E katı ve her biri için 4 katman ile birlikte prodüksiyonunuzun ve yaratıcılığınızın sınırlarını genişleten, Dünyanın en kapsamlı video işleme sistemi
Adobe Creative Cloud araçları ile entegrasyonu ile geliştirilmiş.
Microsoft Word döküman dosyalarını baz alan basitleştirilmiş teleprompter ile birlikte çalışan görsel hikaye anlatımı için tasarlanmış otomasyon araçları sayesinde risk ve iş yükünü azaltır
Adobe Photoshop dosyasından, Sanal ve arttırılmış gerçekliğe sahip sahneler gerçek zamanlı olarak render’lanabilir.
9:16 gibi standart dışı aspect ratiolar ile çalışabilir ve içerikleri kolayca modern media platformlarının ekranlarına taşıyabilir.
Her input’da frame sync, buffer kanallarında animasyonlu GIF desteği, sosyal media yayını, audio mix ve route ile birlikte DANTE ve AES-67 desteği.

Ürün Tanımı
Teknik Özellikler

NewTek TriCaster 2 Elite ünitesi, NewTek’in Dünyaca ünlü all-in-one stüdyo reji sistemi TriCaster için üretilmiş en yeni ve en kapsamlı ürünüdür. Canlı Yayın prodüksiyonunuz için ihtiyacınız olan her şeyi tek bir ünitede toplayan TC2Elite, ek olarak NewTek’in üyelik gerektiren Premium Access özelliklerini ücretsiz olarak içerisinde barındırıyor.

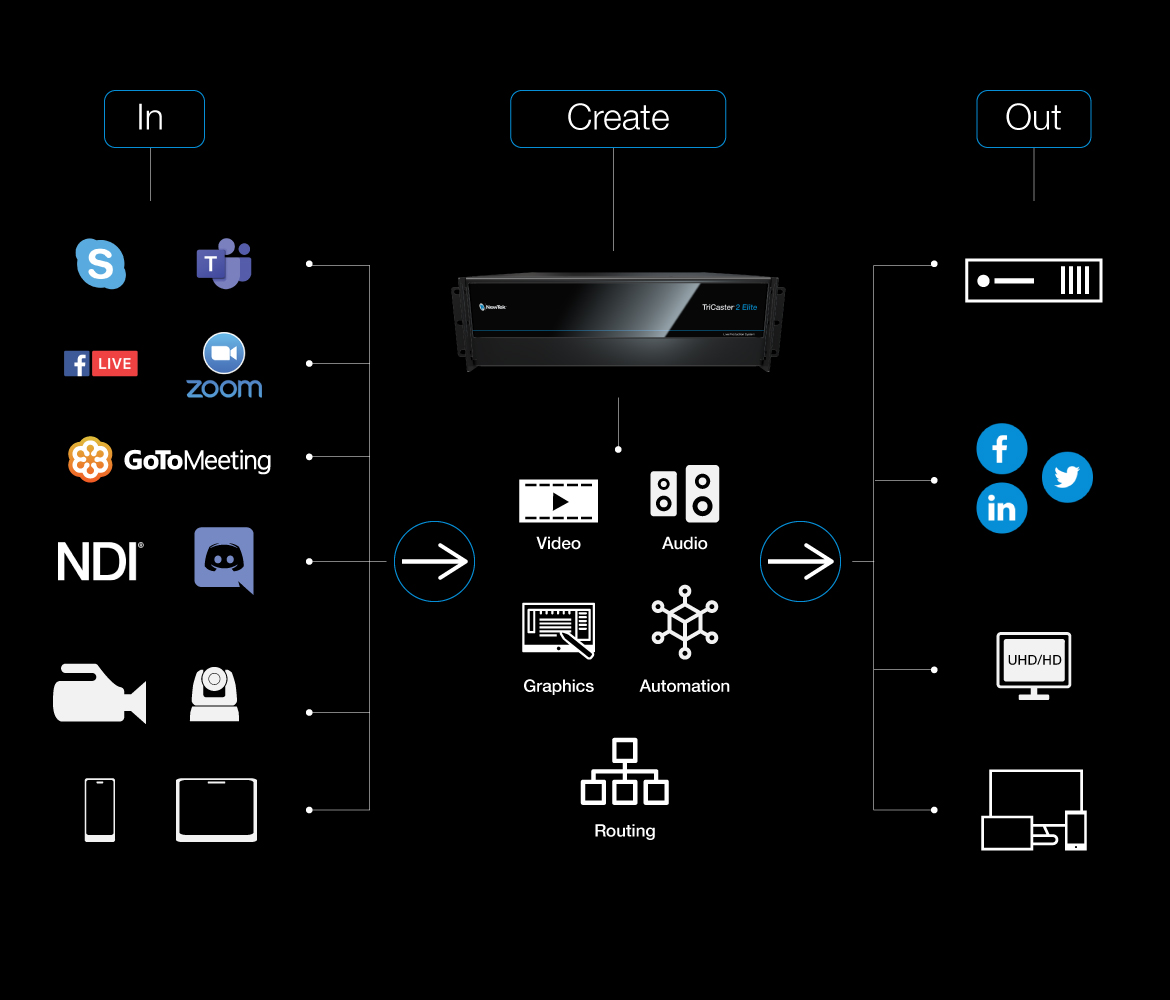

TriCaster 2 Elite, 32 eş zamanlı video input sayısına sahip, video switcher, playout kanalları, audio mixer, 8 adet M/E katı, kayıtçı, CG (Character Generator), Stream, PTZ control, Audio Mixer, Chroma Key ve Sanal Stüdyolar gibi birçok özelliği kendi içerisinde barındırmaktadır. Prodüksiyonunuzun tüm ihtiyaçlarını karşılamakla birlikte, aynı zamanda NDI teknolojisi sayesinde iş akışınızı bir üst seviyeye taşır. Bütün kaynaklarınızı mesafe gözetmeksizin local ağ üzerinden CAT6 kablolarıyla rejinize aktarabildiğiniz gibi, aynı anda birçok hedefe da local ağ üzerinden NDI çıkış sağlayabilirsiniz.

TC2Elite, içerisindeki video call modu ile, Skype, Zoom, Microsoft Teams, Discord gibi birçok uygulamayı prodüksiyonunuza katarak, konuklarınıza uzaktan bağlantı gerçekleştirebilmenizi ve prodüksiyonunuza sorunsuzca entegre edebilmenizi sağlar.

İçerisinde bulunan Premium Access özelliği sayesinde, kendi üzerinden macro atanabilir prompter yazılımı olan LiveStoryCreator, tabletlerden control edilmeyi sağlayan LivePanel, Uzak bilgisayardan erişimi sağlayan KVM özelliği gibi birçok ek bileşeni ücretsiz bir şekilde kullanabilirsiniz.

Bütün bu özellikler ve daha fazlası NewTek TriCaster 2 Elite ünitesini Dünyanın en kapsamlı, en gelişmiş all-in-one canlı yayın rejisi haline getirmektedir.

Fiyat: Talep Üzerine

Video Input	32 x simultaneous external video inputs, supporting any combination of compatible sources in resolutions up to UHD at frame rates up to 60fps (2160p 59.94)
Network Video Input	32 x IP inputs via NDI®, resolution-independent, with support for key and fill
SDI Video Input	8 x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates 1080p: 59.94, 50, 29.97, 25 1080i: 59.94, 50 720p: 59.94, 29.97, 255 576i 50 480i 59.94
PTZ	Support for up to 32 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422 and IP, with integrated controls and preset system
Conference Calling	Support for multiple simultaneous video call inputs with Microsoft Skype^™, Microsoft Teams^™, Zoom Meetings^™, GoToMeeting^™, Discord^™, and Tencent^™ software integration using the Live Call Connect feature,
Video Output	Configurable for up to 8 independent HD or 2 UHD video mix outputs, with simultaneous delivery via IP and SDI
Network Video Output	48 x IP outputs via NDI® (HD and SD sessions only) 8 x video mix outputs in resolutions up to 1080p at frame rates up to 60fps (1080p 59.94) or 2 x UHD video mix outputs at up to 60 frames per second (2160p 59.94) 8 x direct IP source outputs via NDI® translation of local SDI inputs or 2 x upconverted UHD outputs at up to 60 frames per second (2160p 59.94) 4 x direct IP source outputs via NDI® translation of media players, with support for embedded alpha channel 15 x direct IP source outputs via NDI® translation of media buffers, with support for embedded alpha channel 3 x Multiviewer outputs (if 3 monitors are connected). 4K support on 2x Multiviewer outputs while the 3rd outputs in HD 1 x User Interface with dedicated multiviewer 1 x teleprompter output (LiveStory^™ Creator) 8 x selectable IP outputs via internal NDI^® matrix router
SDI Video Output	8 x 3G/HD/SD-SDI connections, optionally configurable for: 8 x independent 3G/HD/SD video mix outputs supporting standard NTSC and PAL formats, resolutions, and frame rates 2 x UHD video mix output via 3G-SDI quad-link grouping, supporting frame rates up to 60fps (2160p 59.94)
Stream Output	2 x resolution-independent streaming video outputs, independently configurable, with simultaneous stream recording. Support for SRT streaming has been enabled.
Multiviewer Output	4 x multiviewer outputs supporting standard display resolutions, using any combination of available connections. Support for 4K on 2x DisplayPorts 1 x HDMI 3 x DisplayPort
Mix/Effect Buses (M/E)	8 x M/E buses supporting video re-entry 1 x Mix/Effect channel per bus with support for up to 4 sources 4 x KEY layers per bus 9 x memory slots per bus 1 x PREVIZ configuration and preview bus
DSK Channels	4 x DSK channels
Media	5 x media players 4 x DDR 1 x Sound 15 x media buffers 10 x animation buffers with GIF support 5 x graphic buffers
Keyers	Integrated LiveMatte^™ chroma and luma keying technology on all source channels and M/E buses 32 x input keyers 4 x media player keyers 8 x M/E keyers 1 x PREVIZ keyer 15 x buffer keyers
COMPs	Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer configurations and DVE-style motion sequences 16 x configurable COMP presets per bus
Virtual Sets	Integrated LiveSet^™ technology with 30+ live virtual sets and box effects included
DataLink	Integrated DataLink^™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
Macros	Record, store, edit and automate commands and user-configured operation sequences Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys® buttons or GPI triggers Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions Supports control via web-based interface
Recording	32 x total video recording channels 8 x configurable M/E channels for HD or 2 x for UHD 8 x physical SDI inputs 4 x DDR’s 2 x streaming encoders Support for growing file playback from DDR’s Instant Replay capability on each input 32 x total configurable inputs
Storage	4TB Media Storage (4 x 1 TB SSD in RAID 0) Quantity varies by format, resolution and file specification Supports recording to external storage via 7 USB 3.2 type A, and 1 USB 3.2 type C, 1 USB 2.0 2(Gen2, Type A) Supports shared storage integration and third-party partner solutions
Grab	Grab full resolution, deinterlaced still images from external video sources and outputs
Export	Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
Audio	16 channels of audio passthrough Integrated multi-channel audio mixer with support for 8-channel audio, DSPs and 4x8x8 audio input routing
Local Audio Input	8 x SDI embedded 1 x Balanced XLR stereo pair (Line) 3 x Balanced 1/4” stereo pairs (Line)
Local Audio Output	8 x SDI Embedded 1 x Balanced XLR stereo pair 1 x Balanced 1/4” stereo pair 1 x Stereo 1/4" (phones)
Network Audio	Native support for network audio input and output via NDI^® Embedded audio supported for all NDI^® input and output video signals Integrated support for Dante^™ networking protocol from Audinate Support for AES67 protocol via compatible WDM audio drivers
Supported Media File Formats	Import, store, and play back multimedia files, with optional transcoding, including Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more Audio: AIFF, MP3, WAV, and more
Monitoring	Support for up to 4 multiviewer displays with configurable workspaces and viewports. Support for 4K on 2 multiviewers while the other 2 multiviewers output in HD.
Signal Monitoring	Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
Processing	Video: Floating Point YCbCr +A 4:4:4:4 Audio: Floating Point, 96 kHz
Throughput Latency	~1.0-1.5 frames
A/V Standards	UHD video conforms to SMPTE 2036 (UHDTV1 using Square Division Quad Split) 3G-SDI video conforms to SMPTE 424M (Level A) HD-SDI video conforms to SMPTE 292M SD video conforms to SMPTE 259M and ITU-R BT.656 Analog audio levels conform to SMPTE RP-155
Tally	Support for hardware tally via HD15 GPI connector, network tally via NDI®, and Blackmagic Design® SDI tally standard
Genlock	Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals
GPI	Supports GPI signals via JLCooper Electronics eBox GPI interface
MIDI	Support for standard MIDI protocol enabling third-party device control
System Drive	250GB SSD
NIC	1 x 10 GbE NIC 1 x 1 Gigabit NIC

Fiyat: Talep Üzerine

Daha fazla

Fiziksel Sistem Özellikleri

650W redundant PSU, multi-tiered donanım ve software Fail-Safe’e sahip 3RU şasi.

Eklenmiş rack ears ile birlikte, 19.0 x 5.25 x 19.57 in (48.3 x 13.34 x 49.7 cm)
34 lbs (15 kg)
