BirdDog COMMS

  • Ürün Tanımı
  • Teknik Özellikler

LIKE YOU'VE NEVER SEEN BEFORE

TOUCH

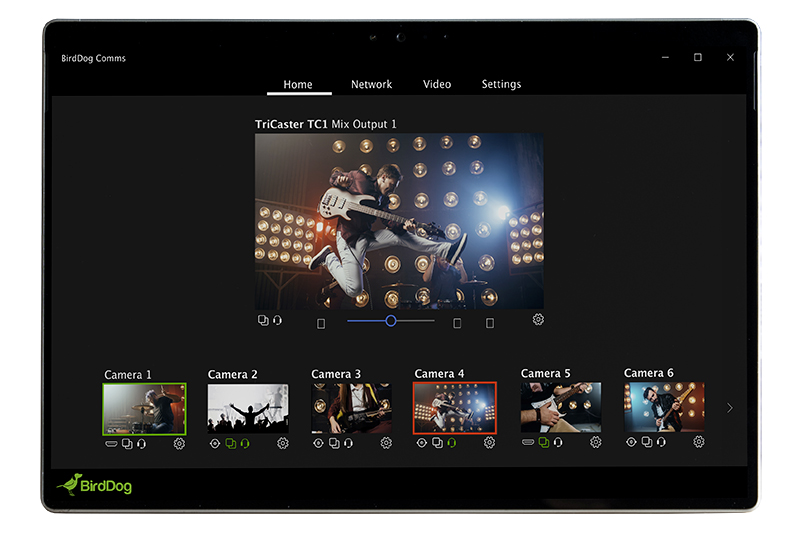

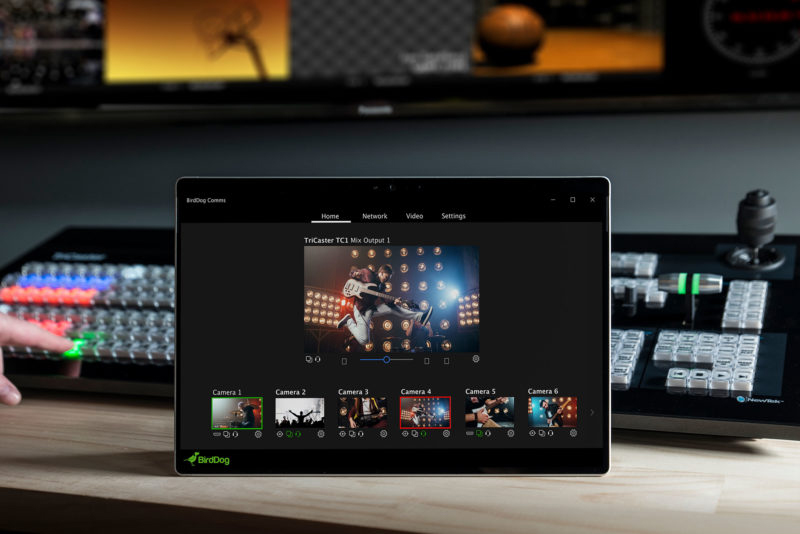

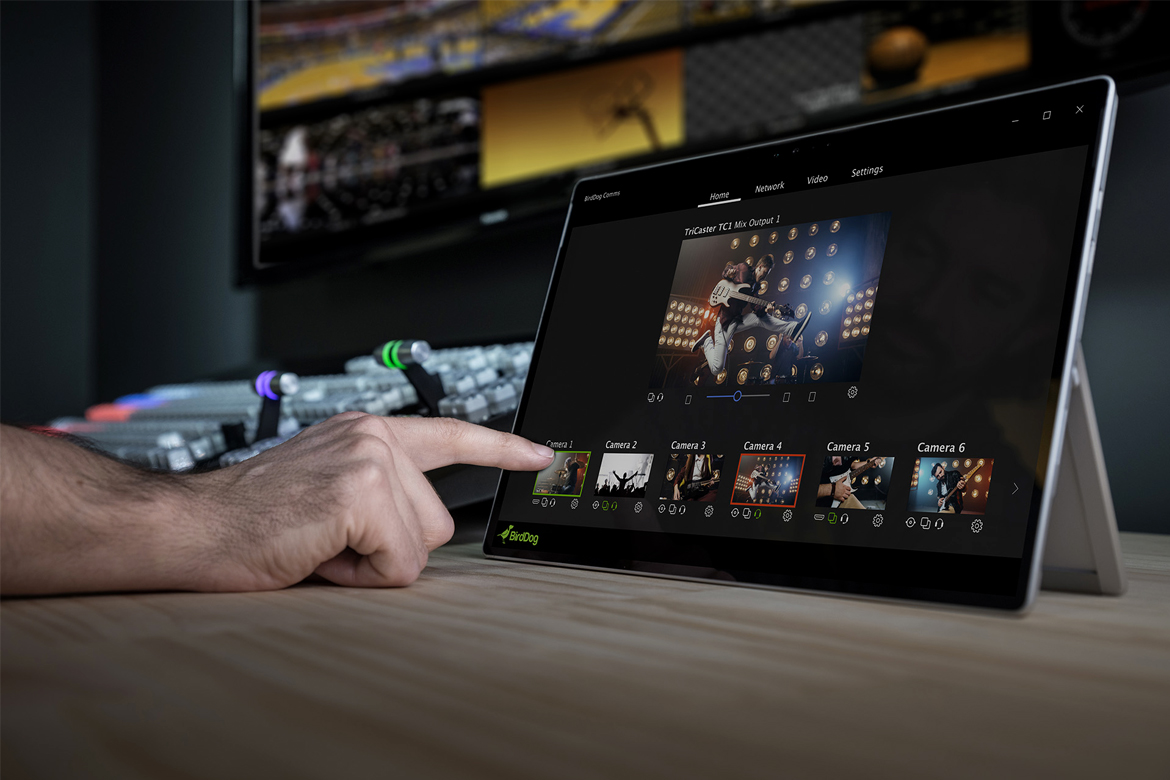

In the fast paced world of live production, every second counts. By using a windows enabled touchscreen tablet the show director has complete lines of communication to the camera operators at their finger tips.

PUSH TO TALK
BirdDog Comms fully supports Push To Talk (PTT) function. Simply push your call button on any BirdDog headset and talk to the group you have been set up in. It’s really that easy.

GROUPS
Intuitive group management ensures everyone is on the right channel. BirdDog Comms makes it super easy to set up the call groups for clear lines of communication.

Video Formats
  • HD) 1080p 23.98, 25, 29.97, 50, 59.94
  • (HD) 1080i 25, 29.97
  • (HD) 720p 50, 59.94
  • (SD) 525i, 625i
Video Input
  • 1 x 3G-SDI, SMPTE-259/292/296/424 (Level A / Level B)
  • 1 x HDMI Standard Type A connector HDMI v1.4a, RGB or YCbCr
Video Output
  • 1 x 3G-SDI, SMPTE-259/292/296/424 (Level A)
  • 1 x HDMI Standard Type A connector
  • HDMI v1.4a, RGB or YCbCr
Audio Digital
  • 2-Channel, 24-bit SDI embedded audio,
    48 kHz sample rate, synchronous
  • 2-Channel, 24-bit HDMI embedded audio,
    48 kHz sample rate, synchronous
Audio Analog
  • 3.5mm Microphone headset input / output
Video Codec Support
  • Realtime, ultra-low latency, full-bitrate NDI (i-frame)
Display
  • Internal 35×5 bi-colour LED display for information and tally indication
Network Interface
  • 10/100/1000 Ethernet (RJ-45) with PoE (Power over Ethernet)
  • Embedded web configuration panel for control and firmware updates
User Interface Controls
  • Network settings
  • Video settings
  • Tally settings
  • Audio and Comms settings
External Tally
  • 3.5mm 2 position +5v tally connector
Size (w x d x h)
  • 150mm x 105mm x 21mm
Weight
  • 0.3kg
Power
  • 100-240V, 50/60 Hz Universal Input, +5-18V DC7W Max
  • Power over Ethernet (PoE) 802.3af/at



Fiyat: US$ 495*

*Fiyatlara KDV dahil değildir

Ürün Özellikleri
  • NDI Communication System
  • Touchscreen-Optimized
  • PTT Communication
  • Group Management
  • Video Source Display
  • For Windows 7 and Later
