RedNet HD32R
32x32 Pro Tools | HD I/O With Dual PSUsÜrün Özellikleri
- 32x32 Pro Tools | HD I/O for Dante audio-over-IP networks
- Primary and Expansion DigiLink mini connections
- Up to 24-bit, 192kHz sampling rates
- AES67 compliant
- Dual power supplies and network connections with full power and network redundancy including locking connectors for maximum reliability
- Word Clock and Loop Sync I/O for increased flexibility and integration with other Pro Tools | HD hardware
- Comprehensive remote control and remote signal metering through RedNet Control
- Ürün Tanımı
- Teknik Özellikler
RedNet HD32R is a 1U, 32x32 Pro Tools | HD™ interface for any Dante™ audio-over-IP network. Featuring network and power supply redundancy, RedNet HD32R is the ideal choice for integrating your Pro Tools HD system into a Dante networked I/O environment in many critical-path applications, whether in Post Production, Broadcast, Live Sound or the Recording Studio.
A pair of DigiLink mini connectors allows RedNet HD32R to connect directly to any Pro Tools | HD system whether it's Native, HDX or even a legacy TDM system. Multiple RedNet HD32R units can be on the same Pro Tools system up to the maximum I/O channel count of Pro Tools, and Loop Sync I/O allows seamless integration with other Pro Tools interfaces such as HD I/O and Sync HD I/O.
Fiyat: Talep Üzerine
| Connectors (Rear Panel) | 2 x etherCON locking Ethernet connectors ( compatible with standard RJ45 connectors) 2 x BNC Word Clock In and Out (with switchable 75 ohm input termination) 2 x BNC Loop Sync I/O (75 ohm port) 2 x Mini DigiLink connectors to/from Pro Tools|HD system (Primary and Expansion) 2 x IEC power inputs (with retaining clips) |
| Controls | Power on/off |
| Digital Performance | Clock Sources: Internal, Word Clock, Loop Sync (master or slave) or from Dante Network Master Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / +0.1 / +4.167%) at 24 bit Ext. Word Clock Range: nominal sample rate ±7.5% |
| Indicators | Primary PSU (A): Green LED Illuminates when an AC input is applied and all DC outputs are present. Primary PSU (B): Green LED - Illuminates when an AC input is applied and all DC outputs are present. Primary Network: Green LED - Indicates that a network connection is present on primary port when in redundant mode. When in Switched mode, a valid network connection at either Primary or Secondary network port will cause this LED to illuminate. Secondary Network: Green LED - Indicates that a network connection is present on secondary port when in redundant mode. Not used in switched mode. Network Locked: Green LED - When unit is network slave, shows valid network lock. When network master, shows lock to indicated clock source. Flashing indicates external clock is selected but not connected. Sample Rate: Orange LED - For each: 44.1 kHz, 48 kHz, x2, x4. Pull Up/Down: Orange LED - Indicates unit is set to operate on a Dante pull up/down domain. Signal Indicators: 16 x Green LEDs, 8 input/8 output indicators. Illuminate @ -126 dBFS. Clock Source: Orange LED for each - Internal, Word Clock, Loop Sync and DAW Master. |
| Network Modes | Redundant: Allows unit to connect two independent networks Switched: Connects both ports to integrated network switch, allowing daisy-chaining of device |
| Supported Systems | Pro Tools|HD PCIe Pro Tools|HDX Pro Tools|HD Native PCIe Pro Tools|HD Native Thunderbolt |
| System Requirements | Requires Pro Tools|HD 8.0 and up |
| PSU | 2 x internal; IEC inputs, 100 to 240 VAC, 50/60 Hz Apparent Power: 30 VA |
| Dimensions (WxDxH) | 1.75 x 19 x 10.35" (44.5 x 482.6 x 263 mm) |
| Weight | 8.6 lb (3.9 kg) |
Fiyat: Talep Üzerine

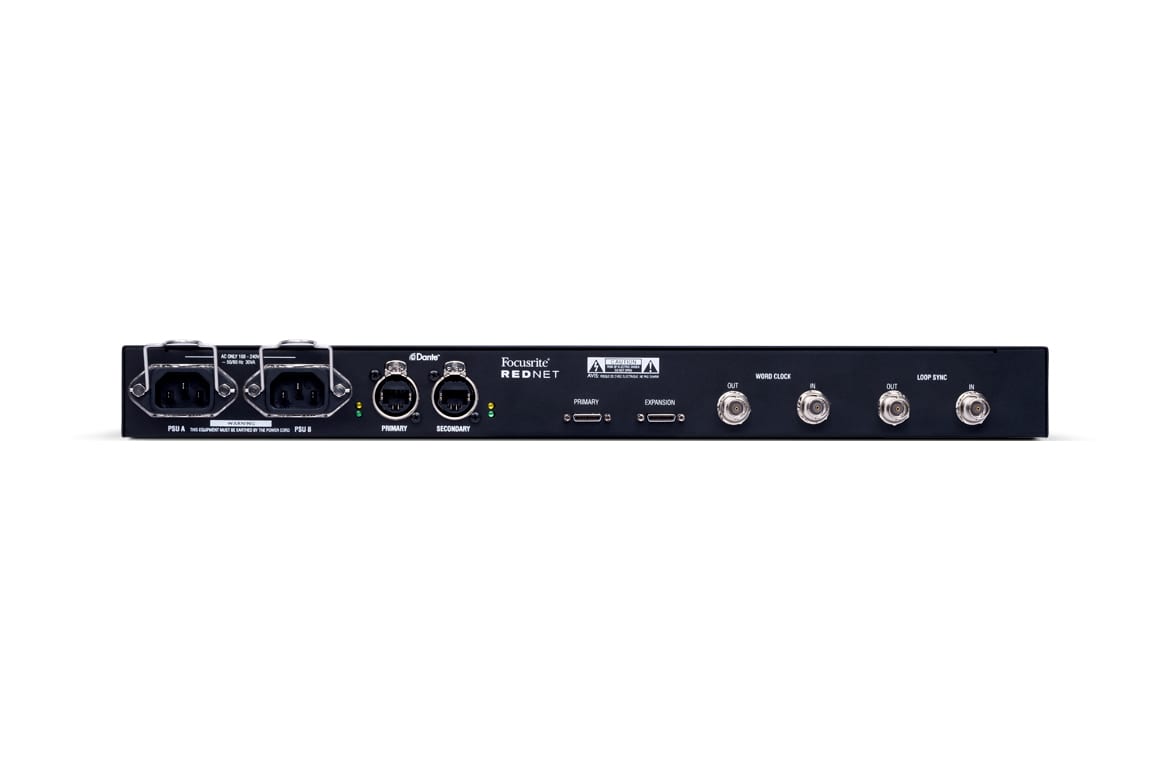

REAR PANEL CONNECTIVITY
- Primary Port: 1 x Mini DigiLink
- Expansion Port: 1 x Mini DigiLink
- Word Clock Input: 1 x BNC 75O port (switchable termination)
- Word Clock Output: 1 x BNC 75O port
- PSU: 2 x IEC Inputs with retaining clips
- Network: 2 x etherCON NE8FBH-S, also compatible with standard RJ45 connectors

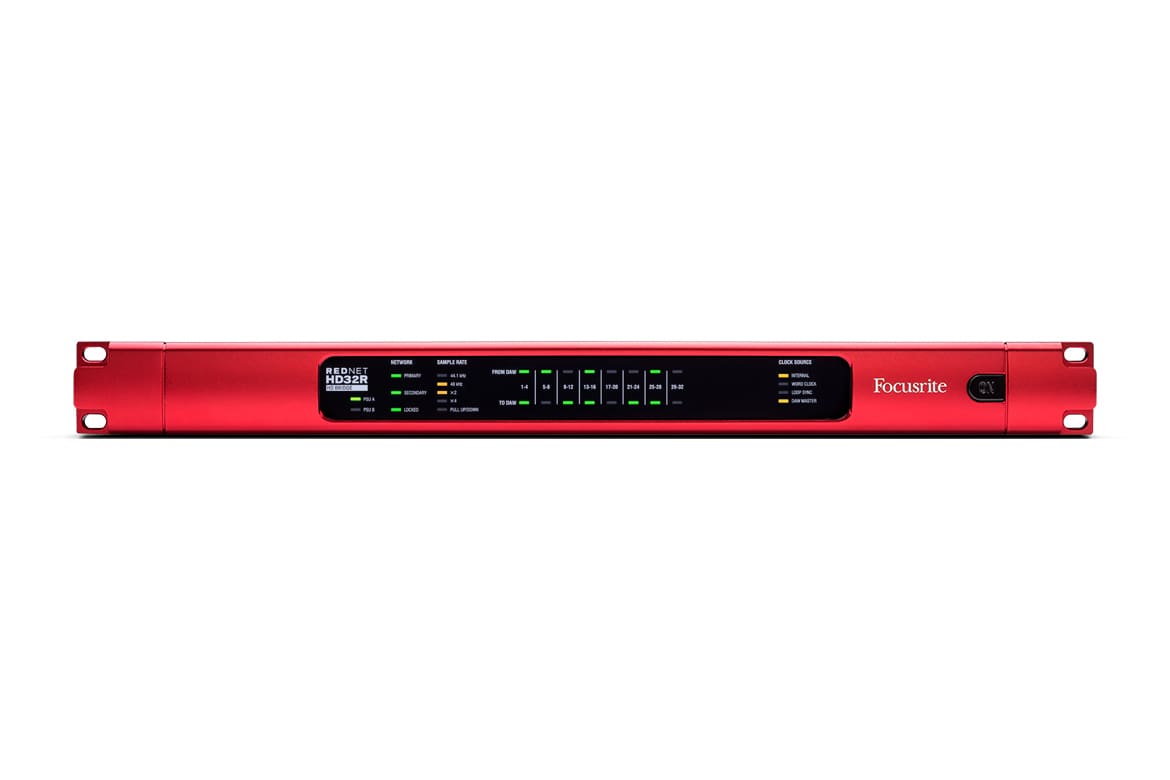

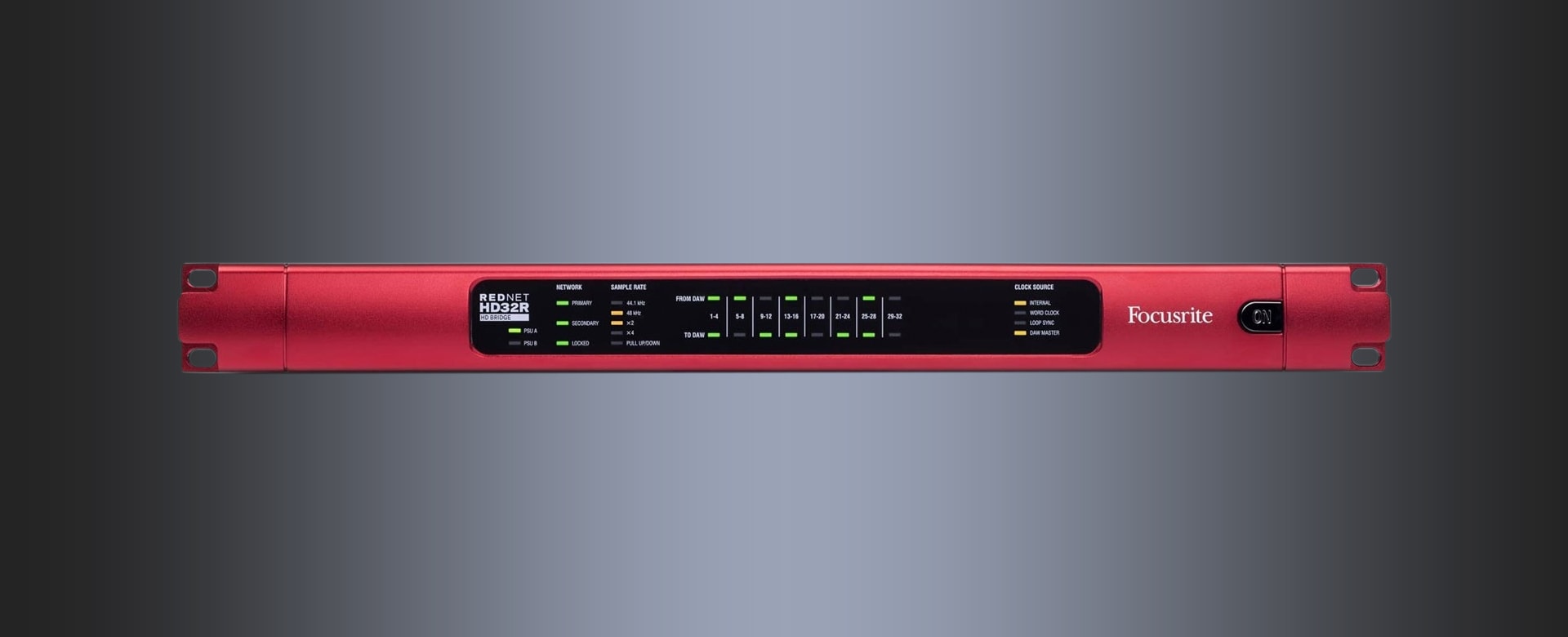

FRONT PANEL INDICATORS
- Primary PSU (A): Green LED. Illuminates when an AC input is applied and all DC outputs are present
- Primary PSU (B): Green LED. Illuminates when an AC input is applied and all DC outputs are present
- Primary Network: Green LED. Indicates that a network connection is present on primary port when in redundant mode
- Secondary Network: Green LED. Indicates that a network connection is present on secondary port when in redundant mode
- Network Locked: Green LED. When unit is network slave, shows valid network lock. When unit is network master
- Sample Rate: Orange LED for each: 44.1 kHz, 48 kHz, x2, x4
- Pull Up/Down: Orange LED. Indicates unit is set to operate on a Dante pull up/down domain
- Signal Indicators: 16 Green LEDs, 8 input/8 output indicators. Illuminate @ -126dBFS
- Clock Source: Orange LED for each: Internal, Word Clock, Loop Sync and DAW Master
