DuoModo Echo III Module
Sonnet

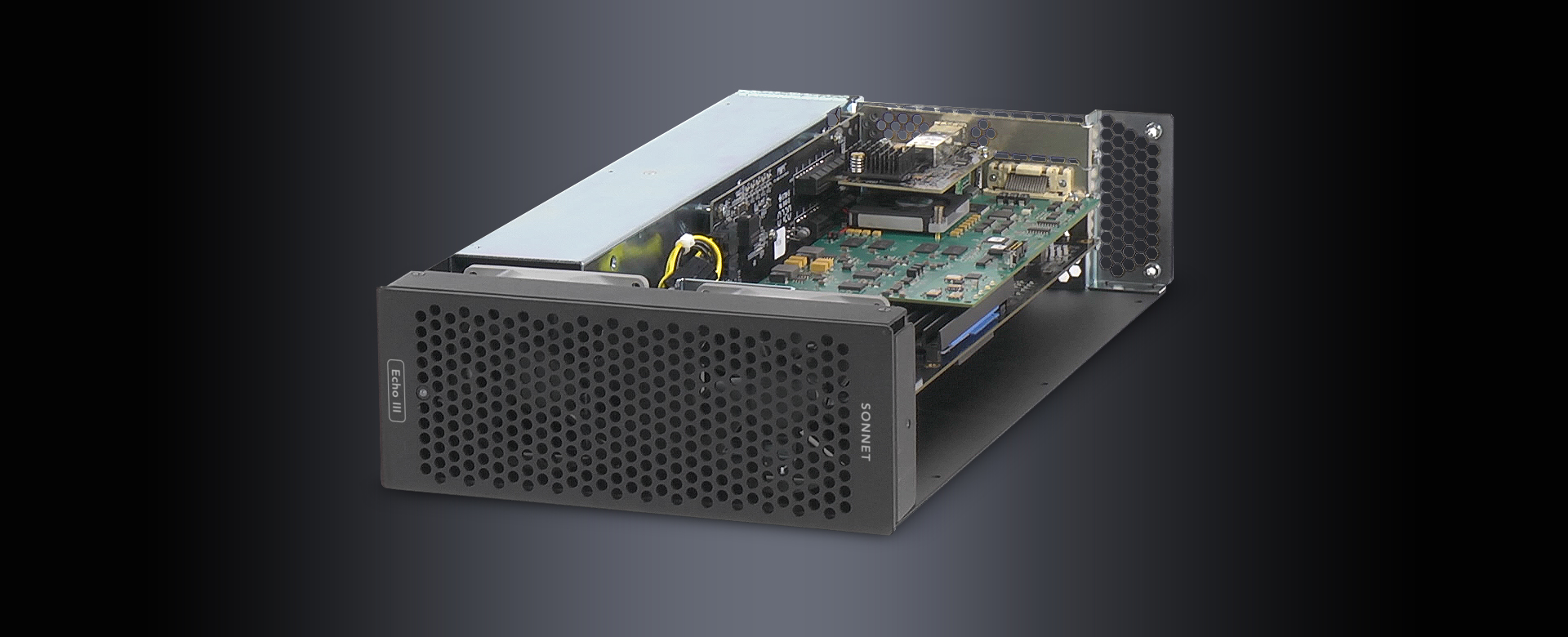

DuoModo Echo III Module

1-slot Thunderbolt to PCIe Card Expansion Module
Product Highlights
  • Connect PCIe Cards via Thunderbolt 3
  • 1 x PCIe 3.0 x16 Slot
  • 2 x PCIe 3.0 x8 Slot
  • 2 x Thunderbolt 3 Ports
  • Supports Non-GPU PCIe Cards
  • Works with Avid PCIe Cards
  • 2 x Temperature-Controlled Cooling Fans
  • Built-In 400W Power Supply
  • 75W Auxiliary Power Connector
  • Required Enclosure Available Separately
  • Ürün Tanımı
  • Teknik Özellikler

video cards

Three Versatile PCIe Slots
  • Supports three full-height, full-length PCIe cards
  • One x16 plus two x8 PCIe 3.0 slots
  • Supports every Thunderbolt-compatible non-GPU card
  • AVID QUALIFIED – Supports up to three Avid Pro Tools | HDX PCIe cards
  • View PDF of supported PCIe cards




400W of Power
  • Built-in 400W power supply with 150W auxiliary power connector
  • Supports power-hungry, non-GPU cards including Avid HDX
  • Powers on and off automatically with connected computer




Quiet Fans
  • Dual Noctua fans offer ultra-quiet operation
  • Temperature-controlled, variable-speed
  • Rated at 17 dbA




40Gbps Thunderbolt Interface
  • 40Gbps Thunderbolt interface offers 2800 MB/s of PCIe bandwidth to the installed GPU card
  • Compatible with Thunderbolt 4 and Thunderbolt 3 computers
  • Thunderbolt cable included
  • ThunderLok 3 Thunderbolt connector retainer clip included


The DuoModo Echo III Module is the same as the module used in Sonnet’s Echo III Desktop and Echo III Rackmount Thunderbolt to PCIe card expansion systems

Part Number DM-MOD-E3
Form Factor Expansion system module
External Connectors Two Thunderbolt port
Power (C14-type)
Internal Connectors 6-pin Mini-Fit Jr (same type as on legacy Mac Pro motherboard; provides up to 75W of power for PCIe cards that require supplemental power)
Expansion Slot (Facing Rear, Left to Right) One x8 mechanical (x8 electrical) PCIe 3.0
One x16 mechanical (x8 electrical) PCIe 3.0
One x8 mechanical (x4 electrical) PCIe 3.0
PCIe Cards Supported One full-length, full-height, double-width PCIe card, plus one single-width card or
Three full-length, full-height, single-width PCIe cards
Power Supply Universal 400W, 115-230V AC, 50-60 Hz
Operating Temperatures 0°C to 35°C (32°F to 95°F)
Dimensions (WxDxH) 3.3 x 16.6 x 8.5 in. (8.4 x 42.2 x 21.7cm)
Weight 4.95 lbs (2.25 kg)
Compliance RoHS 3 (Directive 2015/863)
IEC62368-1 and IEC62368-2 Safety

Mac Compatibility
  • Mac (M1, M1 Pro, M1 Max, M1 Ultra, and M2) with PCIe cards that have compatible drivers
  • Mac (Intel) with Thunderbolt 3 ports
  • Mac with a Thunderbolt 2 or Thunderbolt port with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable (both sold separately)
  • macOS® 10.12.6+
  • macOS Monterey compatible

Windows Compatibility
  • Windows 11 or 10 computer with Thunderbolt 4 or Thunderbolt 3 ports

Monitor Compatibility
  • Linux® computer with Thunderbolt 4 or Thunderbolt 3 ports
  • Linux Kernel 5.0+
