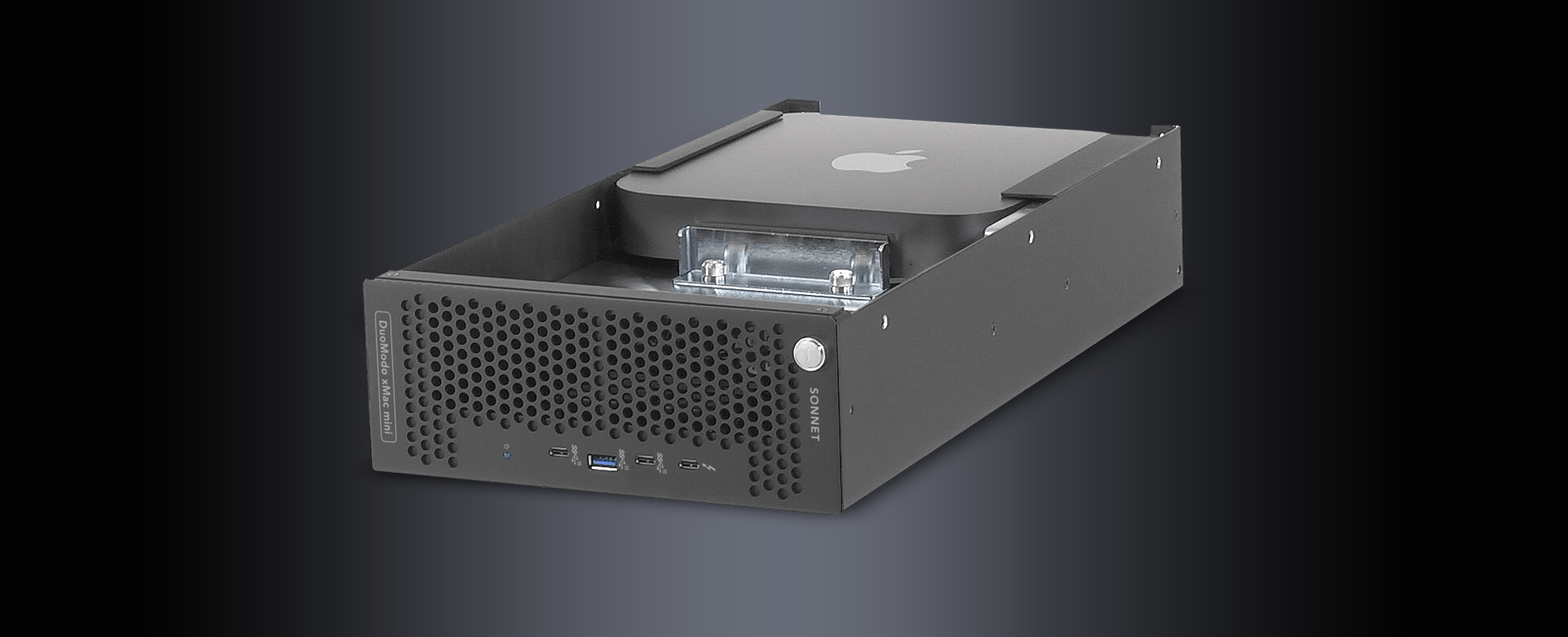

DuoModo xMac mini Module

Mac mini Mounting Module + Thunderbolt SSD Storage Dock
Product Highlights
  • Fits an Intel or M1 Mac mini
  • Horizontal or Vertical Orientation
  • Access to Mac Mini's Ports
  • Rugged Steel Frame
  • Ürün Tanımı
  • Teknik Özellikler

The Ultimate Mac mini Upgrade
Add up to 16TB of M.2 SSD Storage. External Thunderbolt and USB Ports. One Internal USB Port. Secure Steel Enclosure.
The DuoModo xMac mini Module provides secure computer mounting in a DuoModo desktop or rackmount enclosure.(1) It includes a built-in 40Gbps Thunderbolt storage dock that adds NVMe storage expansion and additional ports for connecting peripherals.

Front Panel Connectivity
40Gbps Thunderbolt and 10Gbps USB Ports
The front panel features one passthrough 40Gbps Thunderbolt port and three 10Gbps USB ports (two Type-C, one Type A) for connecting peripherals.

Front Panel
  • 1. USB-C Port – Connect a USB-C peripheral device
  • 2. USB-A Port – Connect a USB-A peripheral device
  • 3. Passthrough 40Gbps Thunderbolt Port – Connect a Thunderbolt peripheral device, display(s), or USB device (when connected with the proper cable or adapter)


Versatile Internal Expansion
M.2 SSD Storage + Internal USB Type A Port
On top of the dock are two M.2 NVMe SSD sockets for one or two M.2 2280 NVMe PCIe SSDs (sold separately). The dock also features an internal USB Type A port that's perfect for connecting an iLok USB-A, thumb drive, or bus-powered USB storage drive.



  • 1. M.2 SSD Sockets – Supports one or two M.2 2280 NVMe PCIe SSDs (with or without heat sink) with "M" key connectors
  • 2. Internal USB-A Connector – Connect an iLok USB-A, thumb drive, or bus-powered USB storage drive
  • 3. 40Gbps Thunderbolt Dock Interface Connector – Connect the included 40Gbps Thunderbolt cable between this connector and the Thunderbolt connector on the installed Mac mini
  • 4. Temperature-controlled Fan – Provides cooling for the Thunderbolt dock, installed SSDs (sold separately), and the module's supporting Thunderbolt and power circuitry
  • 5. Computer Housing and Bracket Location – Padded bracket secures Mac mini in place


Quiet Operator
The DuoModo xMac mini Module includes a temperature controlled, variable-speed fan that automatically and quietly provides cooling for the Thunderbolt dock, any installed SSDs, and the module’s power adapter.

Combine with Other DuoModo Modules
By connecting a DuoModo Echo III Module, you can connect PCIe cards required to provide additional connectivity and functionality, while plugging in a DuoModo eGPU Module* enables users to install in a GPU card capable of supporting many pro applications’ needs.

Part Number DM-MOD-ZM
Form Factor Expansion system module
Front Panel Connectors One Thunderbolt (USB Type-C) port
Two USB 3.2 (10Gbps) Type-C ports
One USB 3.2 (10Gbps) Type A port
Internal Connectors One Thunderbolt (USB Type-C) port to Mac mini
One USB 3.2 (10Gbps) Type A port for thumb drive or dongle
Two M-keyed (NVMe) M.2 sockets (each connected at PCIe x2)
SSDs One or two M.2 2280 NVMe PCIe SSDs (with or without heat sink)
Power Supply Universal 96W, 100-240V AC, 50-60Hz
C14-type power connector
Operating Temperature 0°C to 35°C (32°F to 95°F)
Dimensions (WxDxH) 3.3 x 16.4 x 8.5 in. (8.4 x 41.6 x 21.7 cm)
Weight 4.95 lbs (2.25 kg)
Compliance RoHS 3 (Directive 2015/863)
IEC62368-1 and IEC62368-2 Safety

Mac Compatibility
  • Mac mini® (M1)
    macOS® 11 - macOS 12
  • Mac mini (2018) - Last version with Intel® CPU
    macOS 10.14.6 - macOS 12
  • Mac mini (Late 2014) with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable (both sold separately)
    macOS 10.12.6 - macOS 12
  • Mac mini (Late 2012) with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable (both sold separately)
    macOS 10.12.6 - macOS 10.15.7
