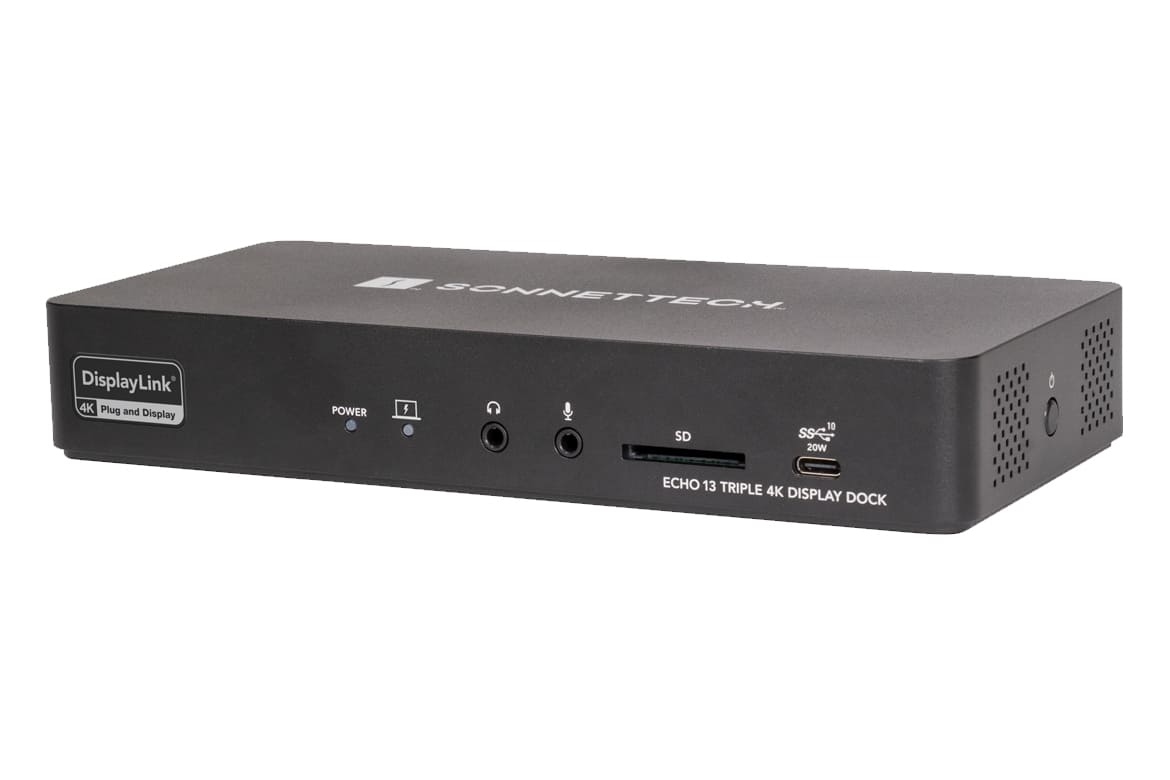

Echo 13 Triple 4K Display Dock
Sonnet

Echo 13 Triple 4K Display Dock

USB-C Dock with Three DisplayPort Ports, Three HDMI Ports, Gigabit Ethernet Port, Four 5Gbps USB Ports, and 10Gbps USB-C 20W Charging Port
Ürün Özellikleri
  • Connect Three 4K @60Hz Displays: Supports three DP or HDMI displays (or a mix).
  • A USB-C Dock with Three DisplayPort Ports, Three HDMI Ports, Gigabit Ethernet Port, Four 5Gbps USB Ports, and 10Gbps USB-C 20W Charging Port.
  • Charge Your Laptop: Can provide 100W of Power Delivery through the included USB-C cable to power and charge your laptop.
  • 10Gbps USB Type-C 20W Charging Port: Front panel USB 3.2 Gen 2 USB-C port supports the USB Type-C Charging spec and can provide 20W of power. Also features Four USB 3.2 Gen 1 USB-A ports.
  • Compatible with Apple M series Macs and Thunderbolt 3 Intel Macs. Compatible with Windows and Chromebooks with Thunderbolt 3, Thunderbolt 4, USB-C (with Alt Mode DP), or USB4 ports.
  • Ürün Tanımı
  • Teknik Özellikler

Triple the External Displays Supported
Apple M1/M2 Mac computers offer outstanding overall performance but have a limit to the number of external displays you can connect to them. If you’re using an M1 or M2 MacBook Air® or MacBook Pro®, that number is one. Featuring DisplayLink™ technology, the Sonnet Echo™ 13 Triple 4K Display Dock beats the limit, enabling you to simultaneously connect three 4K @60Hz DisplayPort or HDMI displays to a single port on your compatible Mac, Windows, and Chromebook computer.

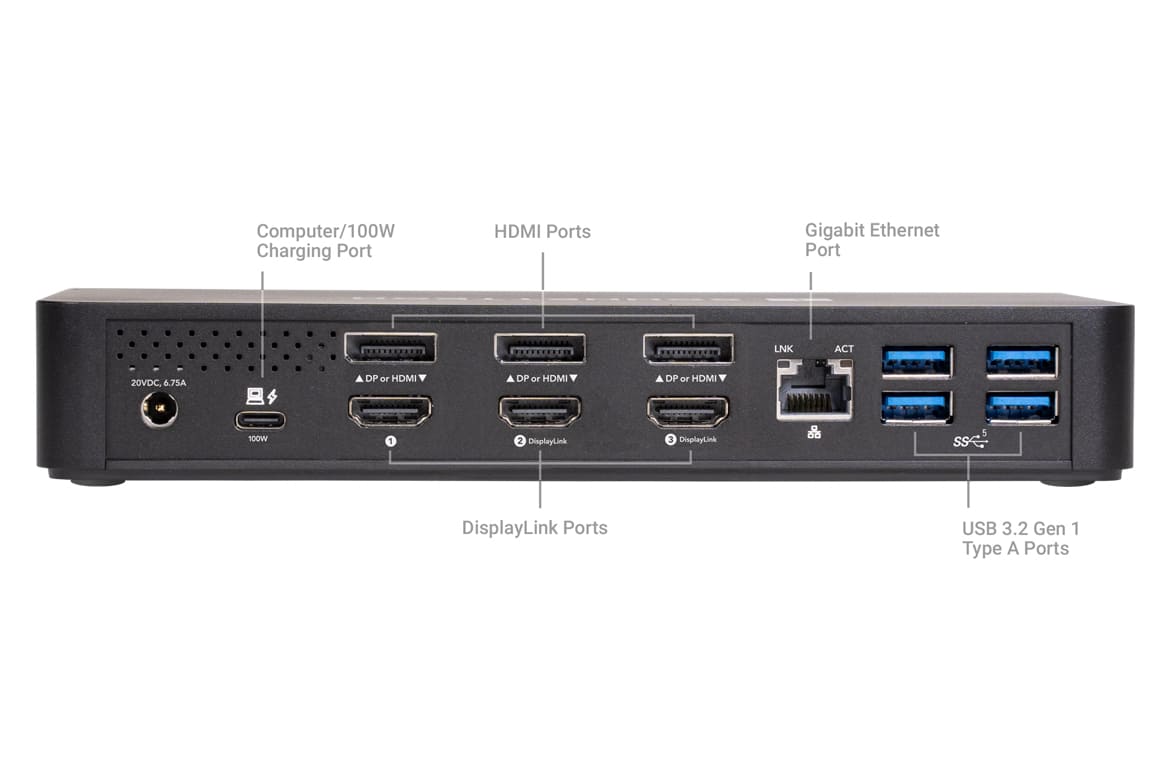

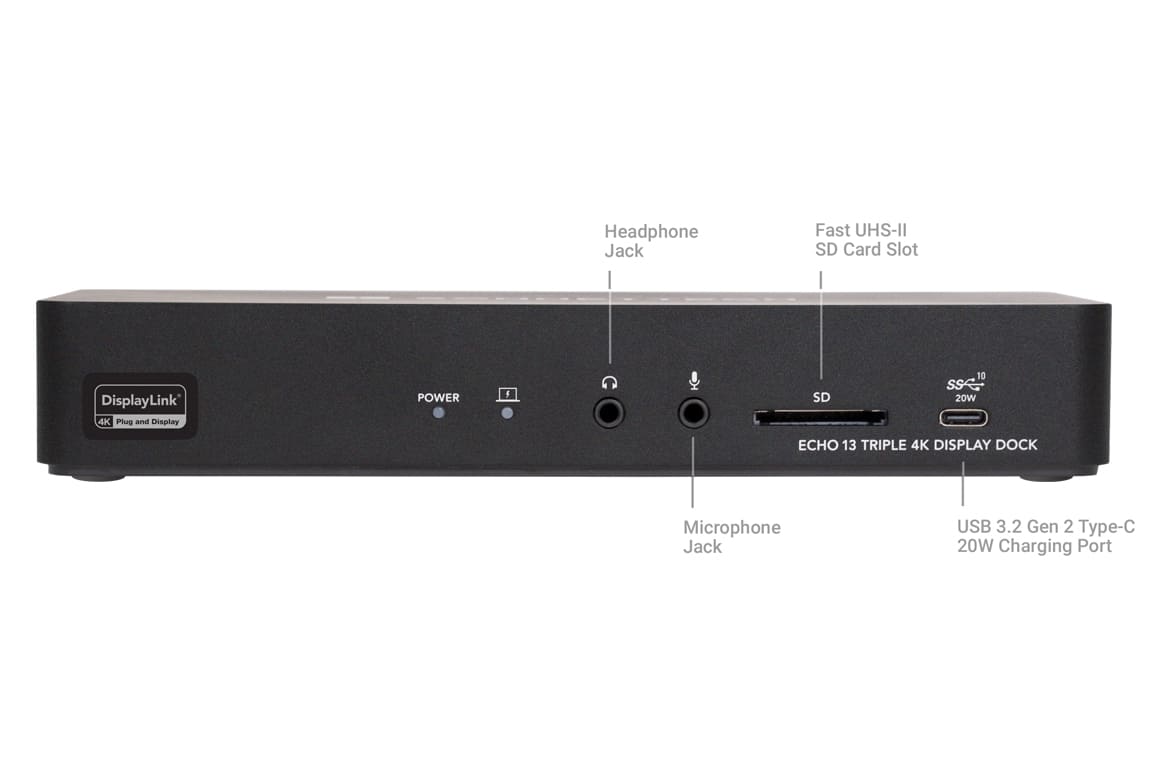

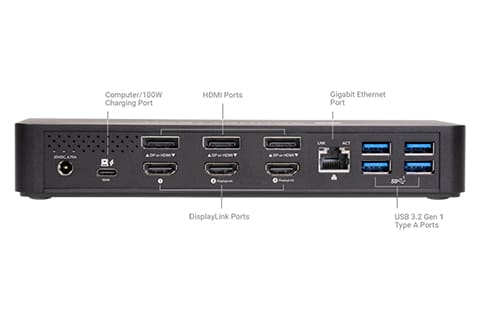

All the Ports You Need
Triple 4K Displays
Simultaneously Connect up to three 4K @60Hz DP or HDMI displays to your computer

100W Power Delivery
Connect and charge your laptop with up to 100W Power Delivery

USB 3
Plug in four USB 3 devices to the back of the dock

Device Charging
Fast charge your phone, connect a Gen 2 USB-C SSD, or connect a 10Gbps powered hub

Networking
Link to an Ethernet network

SD Cards
Read your SD cards

Headphones
Plug in your headphones

Microphone
Plug in your microphone

The Triple Advantage
Connect Three 4K Displays Without Compromise
There are several choices in docks that support three displays — don’t choose the wrong one. Some multi-display docks only support slower 30Hz refresh rates, or a 60Hz refresh rate on one display and 30Hz refresh rates on the others. Some offer 4K display support on only one port, while others only offer 1080P (HD) display support. Some include only one type of display connection. Some support only Windows. Echo 13 Triple 4K Display Dock is not some other dock: it simultaneously supports three 4K @60Hz display, HDMI or DisplayPort (DP) or mixed, even when used with an M1 or M2 MacBook Air computer.

Efficiency Booster
Expand Your Applications Workspace
Perfect for use with productivity software such as Microsoft® Office, Echo 13 Triple 4K Display Dock enables you to work more efficiently by expanding your workspace. Whether you need to open multiple applications on their own screens, edit code or view multiple spreadsheets in detail on large displays, or track the stock market, Echo 13 makes it possible.

Plug In
Your Peripherals and Power Your Computer with One Cable
Connect your monitors, USB peripherals, and Ethernet cable to the dock and then link them all to your computer with a single USB-C cable. Got a laptop computer? Echo 13 Triple 4K Display Dock powers it with up to 100W of charging power. When it’s time to leave, just unplug the USB-C cable, grab your computer, and go.

Network Port
Fast Wired Network Connection
Echo 13 Triple 4K Display Dock includes a Gigabit Ethernet port — perfect for connecting your broadband internet directly to your computer without another device competing for bandwidth on your WiFi setup. With the appropriate drivers already installed under macOS, Windows, and ChromeOS, setup is simple.

Powerful
10Gbps USB-C 20W Charging Port
Echo 13 Triple 4K Display Dock features a USB 3.2 Gen 2 (10Gbps) Type-C port up front to support super-fast USB NVMe SSDs at full speed. An added benefit for the port is its support for the USB Type-C Charging spec, enabling the dock to fast-charge your iPhone® or another device even when the computer is sleeping, shutdown, or disconnected.

Handy
USB-A Peripheral Connections
Echo 13 Triple 4K Display Dock includes four USB-A ports to connect peripherals such as a thumb drive, USB video camera, printer, and digital camera. Unlike some other docks, Echo 13 doesn’t skimp on power either — each USB-A port can provide 7.5W and is designed to ensure that drives with higher peak power requirements mount without fail.

Not Just for 4K Displays
Supports Full HD Displays Too
While Echo 13 Triple 4K Display Dock supports three monitors at up to 4K resolutions (3840 x 2160) @60Hz, you can also connect monitors with lower resolutions like 1440p or 1080p.

Charge On
Leave the Charger In Your Bag
Connected to your laptop computer with the included 100W rated USB-C cable, Echo 13 Triple 4K Display Dock can provide 100W of power (Power Delivery) from its rear-mounted Computer/Charging port. It can power and charge your computer while connected, even when not in use, allowing you to leave your computer’s power adapter packed away.

Media Reader
Fast UHS-II SD Card Reader
The integrated SD card slot is compatible with SD™, SDHC™, and SDXC™ memory cards, and supports 320MB/s read speeds with UHS-II SDXC cards to quickly offload images and video. In addition, microSD cards are also supported when used with adapters commonly included with the cards.

Secure It
Kensington Lock Ready
Fasten Echo 13 dock in place with a Kensington® Lock (sold separately). Compatible with standard MicroSaver®, MicroSaver 2, and NanoSaver® locks.

Part Number ECHO-DK3M-TB
Hardware
Form Factor Dock
External Connectors
  • USB 3.2 Gen 2 (10Gbps) Type-C 100W computer interface/charging port
  • USB 3.2 Gen 2 (10Gbps) Type-C 20W charging port
  • Three HDMI 2.0 ports (two using DisplayLink software)
  • Three DisplayPort 1.2 ports (two using DisplayLink software)
  • Four USB3.2 Gen1 (5Gbps) Type A ports
  • RJ45 Gigabit Ethernet port
  • 3.5 mm stereo headphones jack
  • 3.5 mono microphone jack
  • Fast UHS-II SD card slot
  • Power connector
USB 3.2 Gen 2 USB-C Computer Port Power Delivery
Provides laptop charging up to 100W
USB 3.2 Gen 2 Type C 20W Charging Port
  • Connectivity
    — USB Type-C connector
  • Peripherals Supported
    — USB 3, 2.0, or 1.1 device
    — Bus-powered USB 3 hub
  • Data Transfer Rate
    — USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps
  • Charging
    — Up to 20W
    — 20W for operation or charging
    — Supports simultaneous charging and syncing
USB 3.2 Gen 1 Type A Ports
  • Connectivity
    — With USB Type A connector
  • Peripherals Supported
    — USB 3, 2.0, or 1.1 devices
    — USB 3 hubs
  • Data Transfer Rate
    — USB 3.2 Gen 1 (previously USB 3.10): 5Gbps
RJ45 Ethernet Port
  • Network Support
    — Supports 1000Mb/s and 100Mb/s network speeds and Auto-MDI/MDI-X
  • Standard— Compliant with 10/100/1000 IEEE 802.2 Specifications
  • Network
    — Gigabit Ethernet (1000BASE-T and 100BASE-TX)
  • Packets
    — Maximum packet size: 9000 bytes (Jumbo packets)
  • Chip— DisplayLink DL-6950
SD Card Slot
  • Fast UHS-II SD Card Reader
  • Cards Supported
    — SD, SDHC, SDXC
    — microSD, microSDHC, and microSDXC cards when used with adapter (sold separately)
Display Connectivity
  • DisplayPort 1.4 Ports
    — 4K @60Hz
    — 1440p @60Hz
    — 1080p @60Hz
  • HDMI 2.0 Ports
    — 4K @60Hz
    — 1440p @60Hz
    — 1080p @60Hz
Power Delivery Provides laptop charging up to 100W
Kensington Security Slot Supports Standard, MicroSaver®, and MicroSaver 2 Locks
Power Adapter Universal 135W, 100-240V AC, 50-60 Hz
Operating Temperatures 0°C to 35°C (32°F to 95°F)
Dimensions (WxDxH) Dock: 9.6 x 4.2 x 1.3 in. (24.3 x 10.6 x 3.3 cm)
Power Adapter: 2.6 x 5.4 x 0.9 in. (6.6 x 13.7 x 2.2 cm)
Weight Dock and Power Adapter: 1.6 lbs (0.726 kg)
Complete Package: 2.5 lbs (1.13 kg)
Compliance RoHS 3 (Directive 2015/863)
IEC62368-1 and IEC62368-2 Safety
VCCI-B certified
FCC Part 15, Subpart B
CISPR 32 / EN 55032
Power Supply (PSE certified; UL certified)
Package Contents Echo 13 Triple 4K Display Dock
Power adaper
Power cord
1-meter USB 3.2 Gen 2 100W USB-C cable
Documentation

Compatibility
Mac Compatibility
  • Mac (All M1/M2 series Macs)
  • Mac (Intel) with Thunderbolt 3 ports
  • MacBook with a USB-C port
  • macOS 13 (Ventura), 12 (Monterey), and 11 (Big Sur)
  • Display Rotation Support
    M1/M2 series Macs using macOS 12+
    Intel Macs
  • Closed Clamshell Support
    M1/M2 series Macs
    Intel Macs using macOS 12+


Windows Compatibility
  • Windows computer with a Thunderbolt 4 port or USB4 port
  • Windows computer with a Thunderbolt 3 port
  • Windows computer with a USB-C (with Alt Mode DP) port
  • Windows 11 and 10


Chromebook Compatibility
  • Chromebook with a Thunderbolt 4 or USB4 port
  • Chromebook with a Thunderbolt 3 port
  • Chromebook with a USB-C (with Alt-Mode DP) port


Ubuntu Compatibility
  • Ubuntu 20.04+


Application Compatibility
  • Suitable for productivity applications and videos
  • Not recommended for gaming or applications that require a dedicated GPU
