Sonnet

Solo10G SFP+

10 Gigabit Ethernet Thunderbolt Adapter with Short-range SFP+ Transceiver
Ürün Özellikleri
  • Adds 10GbE Connectivity —Powerfully simple way to add high-performance 10GbE connectivity via optical cable to your computer with Thunderbolt 3 ports
  • Cost-Effective —Low cost adapter includes 10GBASE-SR (short-range) SFP+ transceiver; supports connection up to 300 meters to 10GbE infrastructure via LC multi-mode fiber optic cable (sold separately)
  • 40Gbps Thunderbolt 3 Interface —Connects to any Thunderbolt 3 computer port, or at the end of a Thunderbolt 3 device daisy chain
  • Energy Efficient —Supports the Energy-Efficient Ethernet (IEEE 802.3az) standard to reduce the adapter’s power demands on your computer
  • Easy Setup —Configured through macOS Network control panel or Windows Device Manager
  • Small and Silent —Adapter is pocketable and uses no fan, perfect for use in noise-sensitive environments
  • Bus-Powered, Energy Efficient —Powered through its Thunderbolt connection, the Solo10G requires no power adapter
  • Rugged Construction —Aluminum enclosure withstands heavy use
  • Thunderbolt Certified for Mac & Windows
  • Ürün Tanımı
  • Teknik Özellikler

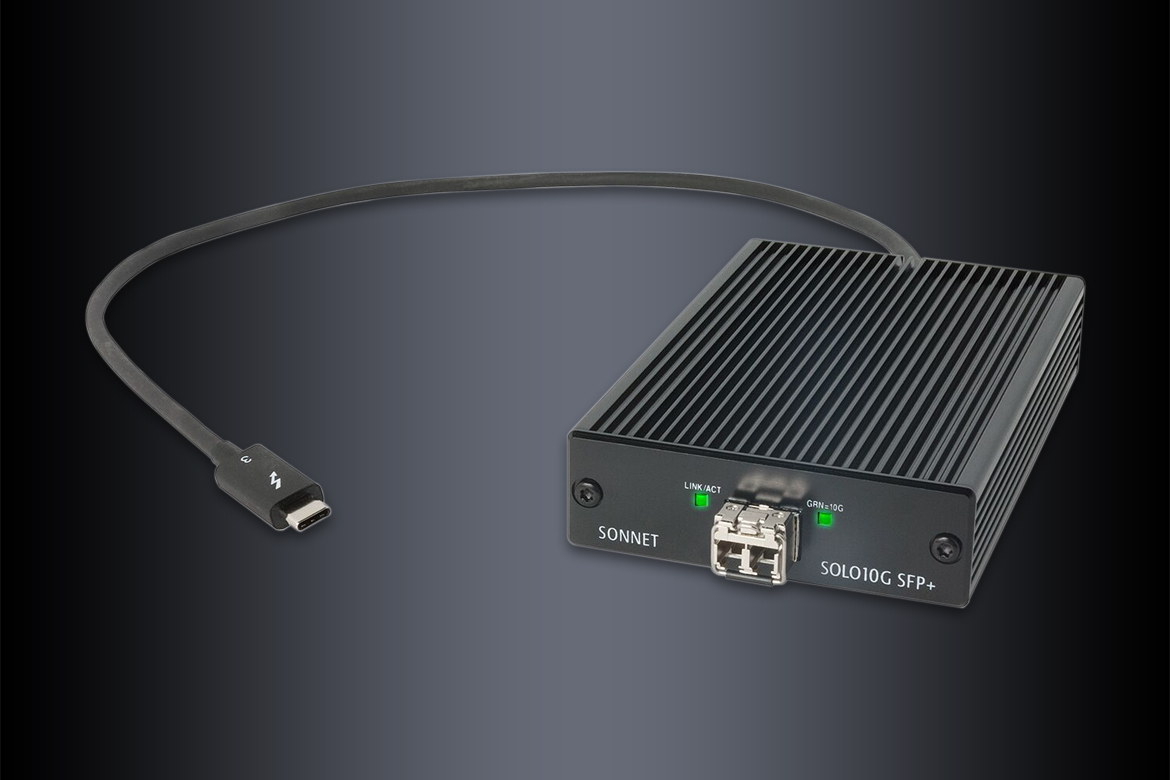

Connect your Thunderbolt 3-equipped Mac or Windows PC to 10 Gb/s Ethernet with the Solo10G SFP+ Thunderbolt 3 Adapter with Short-Range SFP+ Transceiver from Sonnet. This compact adapter comes equipped with an SFP+ port capable of speeds up to 10 Gb/s, and it connects to your macOS or Windows system via an attached Thunderbolt 3 cable. The bus-powered adapter has a rugged aluminum shell designed for portability, while its Energy-Efficient Ethernet support helps to conserve power. Hardware encryption is designed to prevent hackers from tampering with the adapter's firmware. A short-range SFP+ transceiver is included.

Safe and Secure
As a networked conduit into your computer, the Solo10G SFP+ adapter was designed with essential security features. Incorporating encryption in hardware, the Sonnet adapter is protected against malicious modification of its firmware. Any unauthorized attempt at firmware modification to facilitate surreptitious computer access would render the adapter inoperable. This secure design prevents the Solo10G adapter’s firmware from being reprogrammed except by a manufacturer’s update using a secure encryption key.

Replaceable Captive Cable
Through the use of a captive cable, the Solo10G SFP+ adapter’s Thunderbolt connector remains firmly connected to it at all times. Should the cable ever break, it can easily be replaced with an approved replacement cable available from Sonnet or a Sonnet-authorized reseller.

Advanced Features, Intelligent Operation
The Solo10G SFP+ Thunderbolt 3 Edition adapter attains its high throughput performance and low host-CPU utilization through functions such as flow control, 64-bit address support for systems using more than 4GB of physical memory; and stateless offloads such as TCP, UDP and IPv4 checksum offloading. These processes enable your computer to perform better while large files transfers or high I/O operations take place. This Sonnet adapter also supports the Energy-Efficient Ethernet standard (IEEE 802.3az), which reduces the adapter’s power demands on your computer.

Additional SFP+ Transceiver Choices
Sonnet includes a short-range multi-mode fiber SFP+ module (up to 984'), part number G10E-SFP-SR, with the Solo10G adapter. Sonnet also offers a long-range single-mode fiber module (up to 6.2 miles), part number G10E-SFP-LR (sold separately), and a 10GBASE-T copper module (up to 98' using Cat 6A cables), part number G10E-SFP-T (sold separately). Alternatively, you can use cost-effective direct-attach Twinax copper cables up to 32.8' long.

Pocketable, Bus-Powered, and Silent
Unlike most 10GbE adapters, the Solo10G SFP+ is pocketable—measuring only 3.1 inches wide by 4.9 inches deep by 1.1 inches tall—and bus-powered to enable truly portable use without a power adapter. Designed using the latest technologies, and wrapped in a rugged aluminum case, the Sonnet adapter is cool running and doesn’t need a fan, allowing silent and energy-efficient operation.

Simple Setup

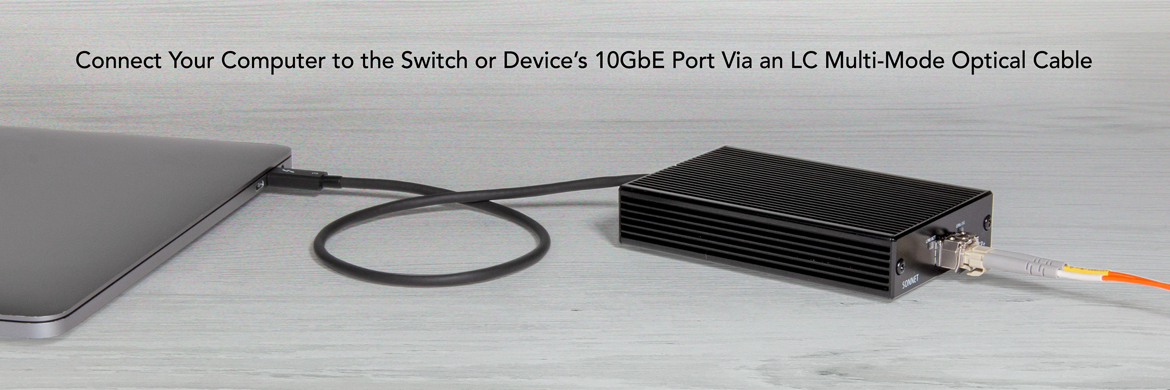

How simple? Connect the Solo10G SFP+ adapter to your computer and to the network switch (or directly to 10GbE-enabled storage), and then configure the adapter’s settings through the macOS® Network control panel or Windows Device Manager.



Fiyat: US$ 299*
*Fiyatlara KDV dahil değildir

Part Number SOLO10G-SFP-T3
Hardware
Form Factor Thunderbolt 3 adapter
External Connectors One SFP+ socket
10GbE Controller Aquantia AQC-100S
Network 10 Gigabit Ethernet
Packets Maximum packet size: 16352 bytes (jumbo frames) 9000 bytes under macOS®
Controller Aquantia AQC-100S
Data Rate Supported Per Port 10 Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s
Advanced Features
  • Flow control support
  • MSI (Message Signaled Interrupts)
  • RSS (Receive-Side Scaling)
  • Interrupt coalescing
  • Multicast filtering
  • Energy-Efficient Ethernet (IEEE 802.3az)
  • 64-bit address support for systems using more than 4GB of physical memory
Stateless Offloads
  • TCP, UDP and IPv4 checksum offloading
  • TSO (TCP Segmentation Offload, AKA Large Send Offload)
  • LRO (Large Receive Offload)
  • RSS (Receiver Side Scaling)
Operating Temperature 0°C to 35°C (32°F to 95°F)
Dimensions (WxDxH) 3.1 x 4.9 x 1.1 in. (79.5 x 124.5 x 27.2 mm)
Weight (approximate) 0.56 lbs. (0.25 kg)
RoHS Compliant Yes




Fiyat: US$ 299*
*Fiyatlara KDV dahil değildir

Mac® Compatibility
  • Mac with Thunderbolt 3 ports
  • macOS High Sierra (10.13.6+)
  • macOS Mojave compatible

Windows® Compatibility
  • Computer with Thunderbolt 3 ports
  • Windows 10 (64-bit Edition Version 1809 or greater)
